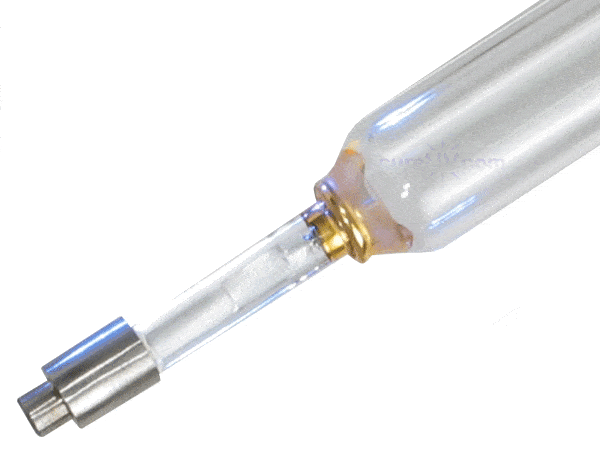

Hanovia Part # 6512A2S UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 12 Inch Arc Length

The Hanovia Part # 6512A2S UV Curing Lamp Bulb is a 100% compatible replacement UV lamp bulb that has an arc length of 12 inches. The UV replacement lamp bulb exceeds OEM standards of UV curing bulb performance. The replacement bulbs are compatible to the Hanovia UV systems and to the following part numbers:

• 6512A2S
• 6512A431
• AM202X

The 200 WPI lamp bulb is used predominantly in the curing and drying of coats in signs and graphics. The replacement lamp has a predictable lifespan after which it has to be replaced. The curing lamp contains the quartz plate that protects the lamp from debris. The quartz plate works like a filter between the lamp and the curing system. The plate prevents grit, dirt and contaminants from building up on the lamp.

The UV printer lamp is made in the USA and is a quality product that dries graphics and signs instantly. CureUV provides UV lamp for printers in different arc length and spectral fills. Curing lamps is also eco-friendly as it cures and hardens the ink instantly unlike curing with heat that needs solvents to cure.

Technical Specifications:

• Quartz: Standard
• Arc Length: 12 Inches
• Overall Length: 18.75 Inches
• Tube Diameter: 22.5mm
• Watts Per Inch: 200 WPI

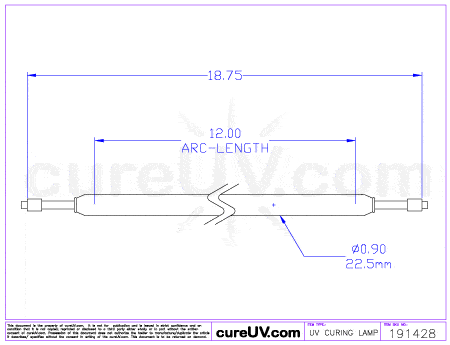

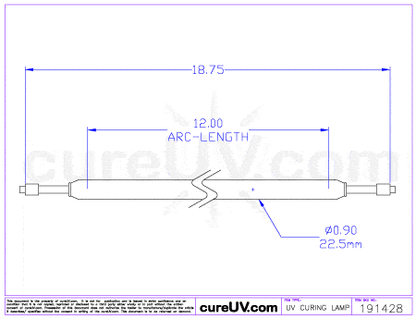

Hanovia 12 inch UV lamp (200 WPI) - OEM part number 6512A2S - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
