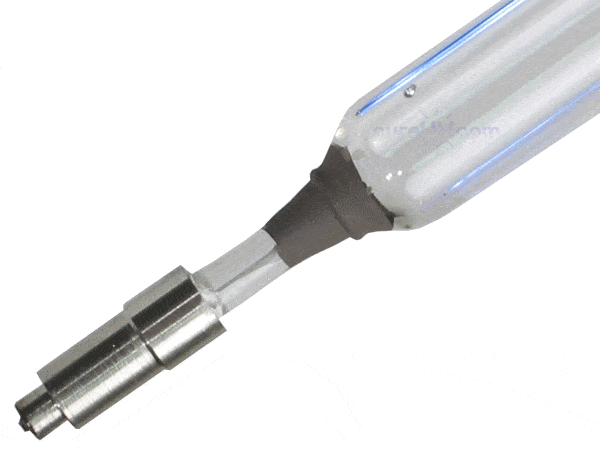

Hanovia Part # 6548A431 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 48 Inch Arc Length

The Hanovia Part # 6548A431 UV Curing Lamp Bulb is a 100% guaranteed compatible replacement UV bulb that has an arc length of 48 inches and a total length of 54.13 inches. The 200 WPI UV replacement lamp bulb exceeds OEM standards of UV curing bulb performance and is compatible to the Hanovia UV systems and works with the following part numbers:

• 6548A431
• P97056

The UV lamp works to dry coatings and inks in signs and graphics. It contains a quartz glass plate that helps in protecting the lamp from contaminants and works as filler between the lamp and the curing system. The UV curing bulb is used in the printing industry mainly to cure inks and coatings. UV curing lamps are important as it resists smudges and also makes it an environment friendly option.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 48 inches
• Overall Length: 54.13 inches
• Tube Diameter: 25 mm
• Wattage Per Inch: 200 WPI

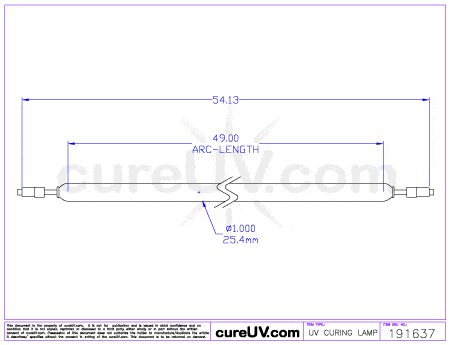

Hanovia 48 inch UV lamp (200 WPI) - OEM part number 6548A431 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
