Heraeus Fusion LightHammer® 6 MARK II

The LightHammer® 6 MARK II is a smart UV curing system that incorporates solid-state power supplies and internal sensors to monitor real-time system performance. This innovative microwave-powered system stands out thanks to its solid-state power supplies reduce energy costs and simple and flexible control schemes via software versus traditional hardware.

Some of its innovative features include:

• Smart power supply and simplicity and flexibility in the control scheme
• -Via software versus traditional hardware, reduced operating costs
• Ease of integration, high compatibility, Industry 4.0 ready
• -Backward compatible with existing LH6 installations
• Real-time system performance monitoring
• -Increased uptime and reliability of product
• Multiple communication protocols
• -DeviceNetTM, Profibus®, EtherNet/IPTM, Dry Contact, and “Plug & Play” options
• Power Factor Correction
• -Eliminate electrical harmonics, better than 99% at full load
• Reduced weight and better airflow
• -For more efficient cooling which prolongers useful lamp life

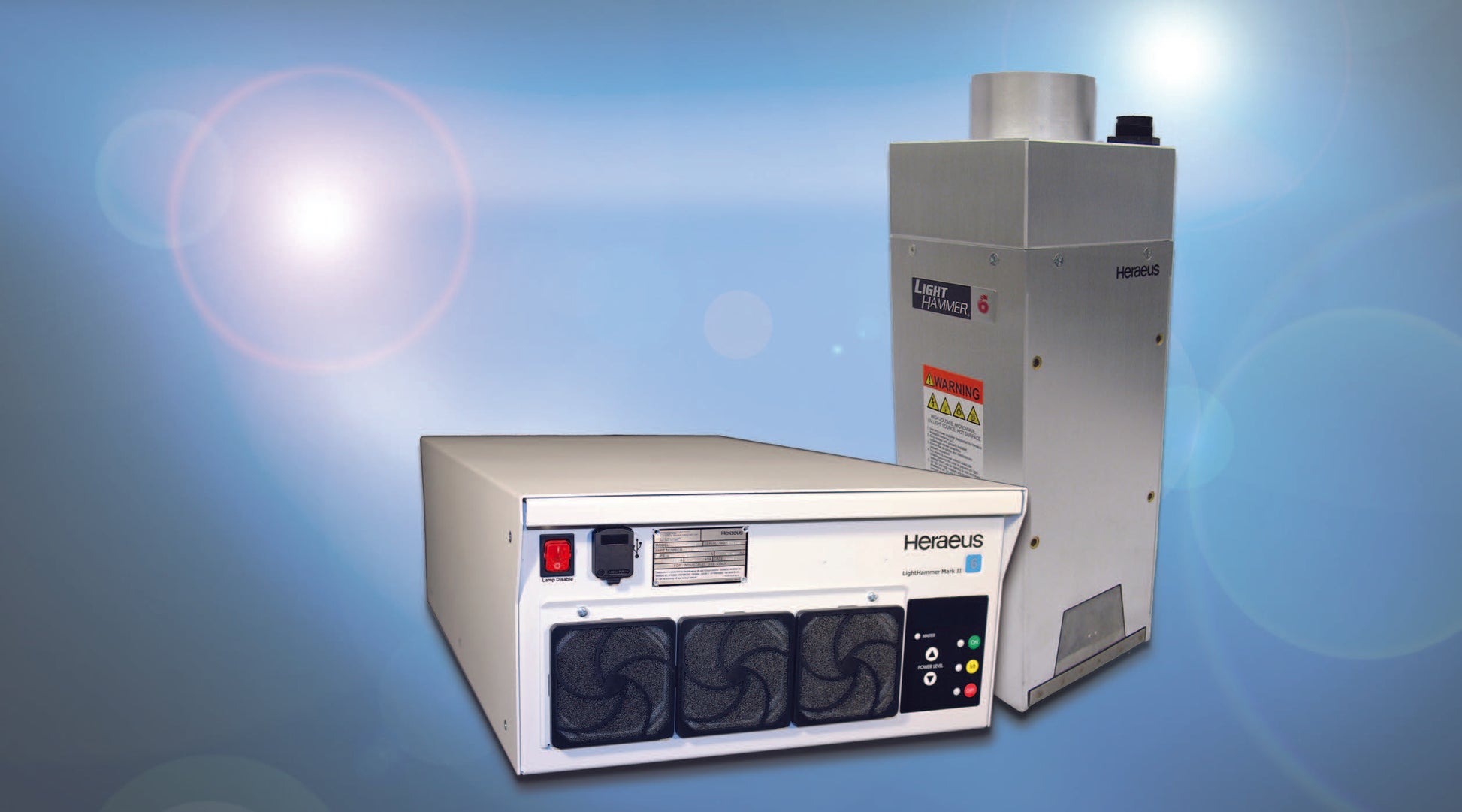

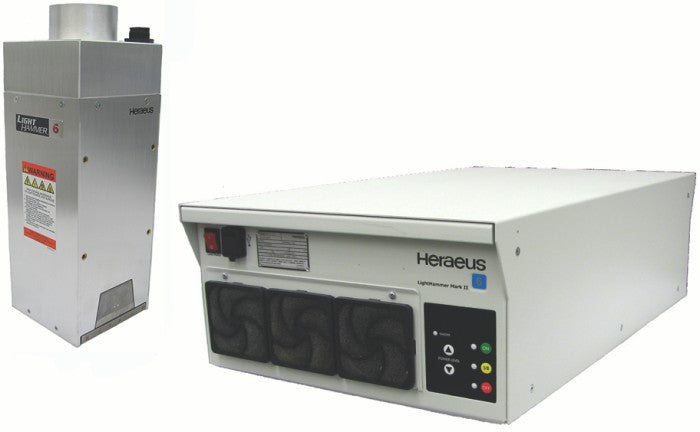

Operating in the power class of 500 watts/inch (200 watts/cm), the Light Hammer 6 MARK II features two easy-to-service modular components: the microwave-powered irradiator and the solid-state power supply. Designed with an electrodeless bulb mounted in an elliptical reflector for focusing an intense strip of UV energy 53 mm (2.1 inches) below the face of the lamp, this system excels for its balance between efficient operation, superior construction and user-friendliness.

Make sure to check out the entire Lighthammer Line to find the ideal device for the job!

Electrodeless Technology

Equipped with electrodeless bulb technology these long-life bulbs are known for their stable performance, high intensity and low maintenance operation designed to withhold hundreds of demanding applications.

Popular Bulb Spectra Available

Standard bulb spectra available:

• “H” spectral distribution is suited for clear coats and varnishes
• “D” spectral distribution is popular and proven for inks and thick coatings or adhesives
• “V” distribution is effective for UV curing white basecoats, through laminating materials and in other specialty applications

Improved Cure

The ultimate benefit of the Light Hammer 6 MARK II is the achievement of higher degrees of conversion than is typically achieved with high ripple (AC) powered UV sources. (Patented)

Technical Data Sheet:

Technical Drawing:

Technical Specifications:

• System Includes: 6-inch wide irradiator (lamp module), electrodeless bulb and solid-state power supply.
• Lamp bulb length: 15 cm, available in D, H, and V spectra
• Power class: 200 W/cm (500 W/in)
• Variable power capability (35% to 100%)
• Fast on/off cycles
• Irradiator footprint (W x L): 168 x 168 mm
• Available Input Voltages (50/60 Hz): 200 V–480 V ±10% auto-ranging
• System Ambient Operating Temperature: 0–50°C
• System Ambient Storage Temperature: -40°C–70°C
• Power Supply: LHP6 MARK II
• Altitude: 0–1,000 m
• Irradiator: I6 series
• Relative Humidity: 30–95% (non-condensing)
• Mobility: Stationary, rack-mounted
• Environmental: Indoor use only
• Pollution Degree: 2
• Compliance: TÜV; CE
• Available with integral or external blower for cooling, which help prolong the bulbs useful life
