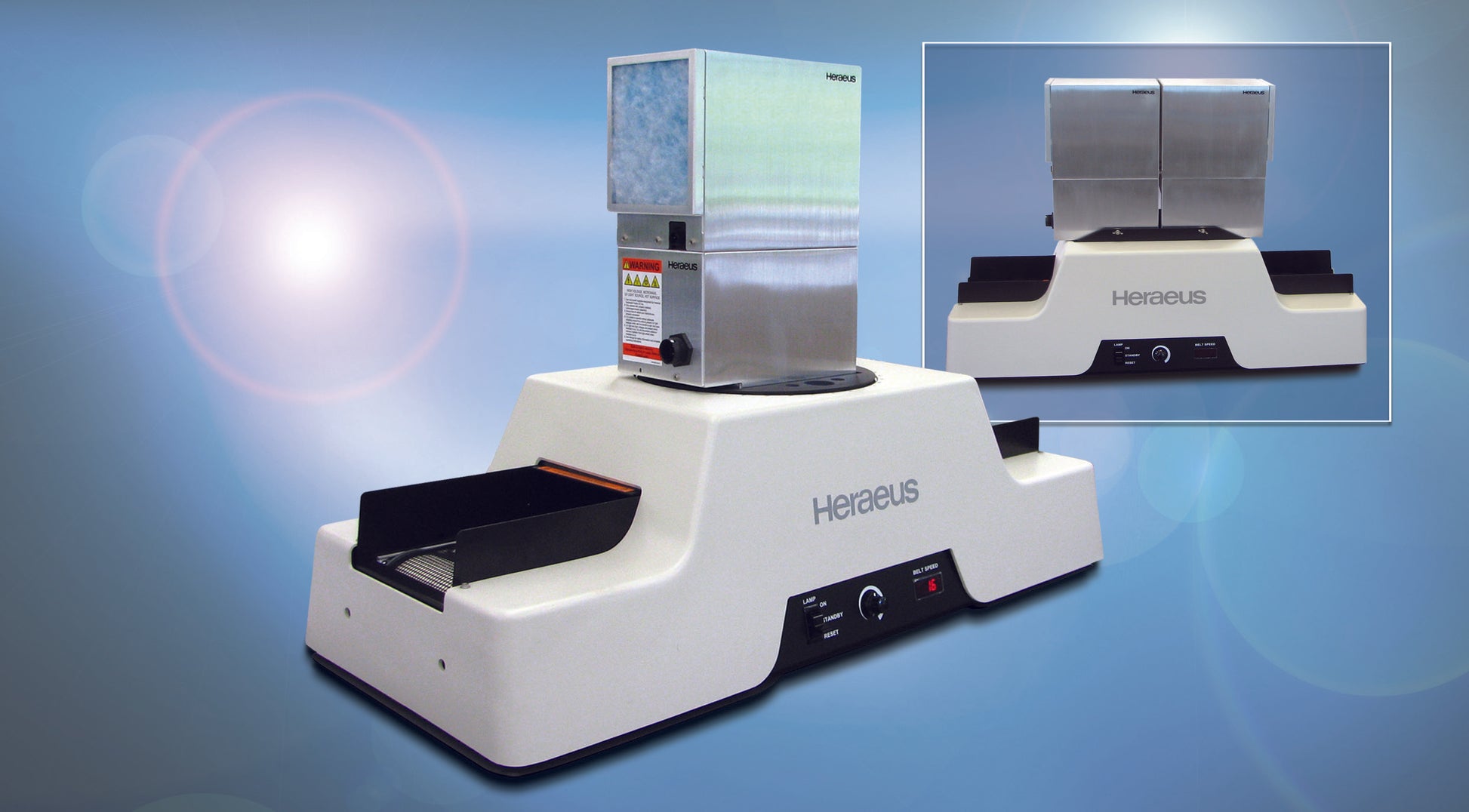

Heraeus Fusion Noblelight LC6B & LC6B-2 Benchtop Conveyor
Heraeus Fusion Noblelight LC6B & LC6B-2 Benchtop Conveyor
SKU:512063
Couldn't load pickup availability
The LC6B/LC6B-2 Benchtop Conveyor is a versatile UV curing unit suitable for laboratory and Research and Development use. It's ideal for testing adhesives, inks, and coatings.
It accommodates substrates up to 190mm wide, with an effective UV width of 152mm. Adjustable entry/exit doors and adjustable focus height (up to 3 inches) make it versatile. Compatible with the compact Heraeus Noblelight F300S, LightHammer® 6 Mark II, Semray® UV4103-2S LED, and Altair 75 LED Fusion Systems it is perfect for small production parts.
Please Note: Fusion System is NOT included with the purchase of the conveyor, for a fitting Fusion System make sure to check out our Fusion Systems Catalog.
- LC6B – A unique and simple mechanism allows the lamp to be rotated and set to any angle to part travel or raised and lowered to vary its distance from the part.
- LC6B-2 – Only has vertical adjustment.

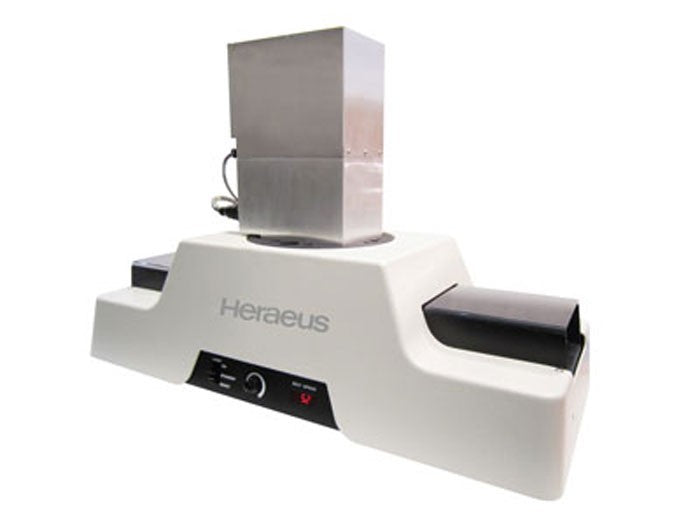

Heraeus Fusion Noblelight LC6B & LC6B-2 Benchtop Conveyor
Features and Benefits:
- Suitable for laboratory and R&D applications. Used for testing adhesives, inks, and coatings.
- Ideal for small production parts.
- Adjustable lightshield entry/exit doors.
- Adjustable focus height (lamp to belt).
- Lamp rotation and angle adjustment (LC6B only).
- Uses air flow for cooling and part retention. Internal exhaust blower for cooling.
- Specially designed Teflon-coated Kevlar belt.
- Convenient lamp control switch on the front panel.
Technical specifications:
- Weight:
- Without lamp: 55 lbs.
- Overall Length: 42 in.
- Overall Width: 20 in.
- Overall Height:
- Without lamp: 12.2 in.
- With lamp: 27.4 in.
- Nominal Width: 6 in.
- Microwave Lamp Position (using Microwave Boot):
- LC6B: Rotatable, 360˚; vertical adjustment from focus at belt surface to 3.0 in., beyond focus.
- LC6B-2: Vertical adjustment only up to 3.0 in., beyond focus.
- Lamp Types:
- Microwave: F300S, LH6 Mark II
- LED: Altair 75, Semray® UV4103-2S
- Exhaust Blower: Included – internal or external optional.
- Belt: Teflon®-coated .25 in. weave Kevlar® fiber, carbon-impregnated, with conductive (anti-static) coating and unique fold-back loop seam, standard.
- Speed Indicator: LED Digital display in m/min. or ft./min.
- Power: 115/230 VAC, single phase, 50/60 Hz, internally selected. IEC-style power connection with power switch.
- Drive: PMDC gearmotor; synchronous belt drive; interchangeable pulleys provide two ranges for each model, low speed and standard speed.
- Controls: Power on/off, speed adjustment.
- Interconnections: Lamp on/off (incorporates zero-speed switch).
- Fasteners: Metric.
- Speed Ranges: Four options available. (See Table)
Technical Data Sheet:
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with UV curing. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
These are Examples of Customized Systems
 |
