Hydro-Safe HSRL-61 Replacement UVC Light Bulb

4 Pin Stepped on a Single End - 65 Watt Germicidal Water Treatment Bulb

The Hydro-Safe HSRL-61 Replacement UVC Light Bulb is 4 pin stepped on a single end light bulb. The 65 Watt germicidal water treatment bulb uses UVC technology to destroy bacteria, molds, viruses, yeast, and protozoa present in the water. It emits a short wavelength of 253.7nm that acts on the genetics of the microorganisms and makes them harmless. The light bulb comes with a ceramic base material set in non-ozone glass type. The replacement bulb from CureUV is highly compatible with germicidal OEM air, water disinfection filter, UV sanitizer, and ultraviolet purifiers.

Since the light bulbs are intended to destroy microorganisms it is necessary to schedule the replacement of the bulbs annually to ensure the system's efficiency. These high-quality lamps are made in the USA and can last for approximately 10,000 working hours after which the UV output reduces though the UV lamp may continue to emit bright light. The replacement UVC lamp reacts with the genetics of microorganisms such as spores, viruses, bacteria, and other pathogens.

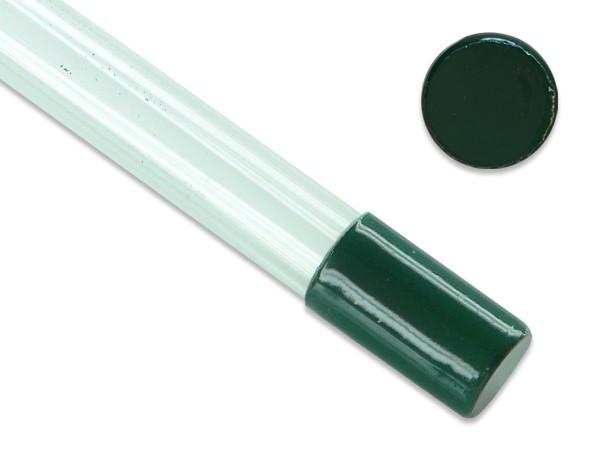

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

• Total Length: 61.18 inches (1554mm)
• Arc Length: 58.18 inches (1478mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 160V
• Lamp Wattage: 65 Watts
• Output UVC Watts: 33 Watts
• Output uW/cm^2 @ 1m: 240
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone

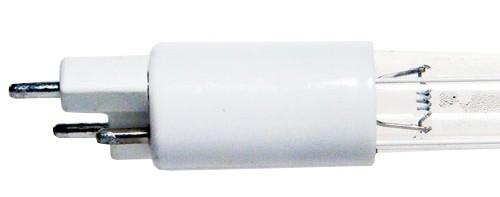

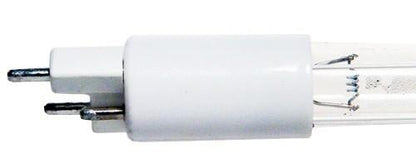

• Base Style: 4 pin stepped on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Hydro-Safe brand UVC bulbs. All Hydro-Safe brand names, trademarks, and logos are property of Hydro-Safe.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
