Hydro-Safe HSUV-SS-1 UVC Bulb - CureUV Brand

4 Pin Stepped on a Single End - 14 Watt Germicidal Water Treatment Bulb

Our CureUV brand Replacement UVC Light Bulb for Hydro-Safe HSUV-SS-1 is a four pin stepped on a single end 14 Watts bulb. The replacement bulb has an arc length of 7.87 inches and a total length of 11.3 inches. The UVC light bulb has a lamp voltage of 39V and is set in a non-ozone glass. The ceramic bulb has a rated life of 10,000 hours after which we recommend that you replace the bulb for better lamp performance.

UVC light technology is capable of sterilizing and killing 99.9% of germs such as bacteria, viruses, protozoa, yeast, and molds. These specialized UV lamps from CureUV produce a high quantity of damaging ultraviolet light that destroys harmful microorganisms without altering the composition of water, its pH, or its taste. This method of ultraviolet purification makes water safe for human consumption without the side effects of chemicals such as chlorine. Our UV lamps are tested and certified by our expert quality assurance teams, ensuring you get the best performance out of your UVC system. With the CureUV Brand UVC Bulb, you can always be sure that your water is clean and safe.

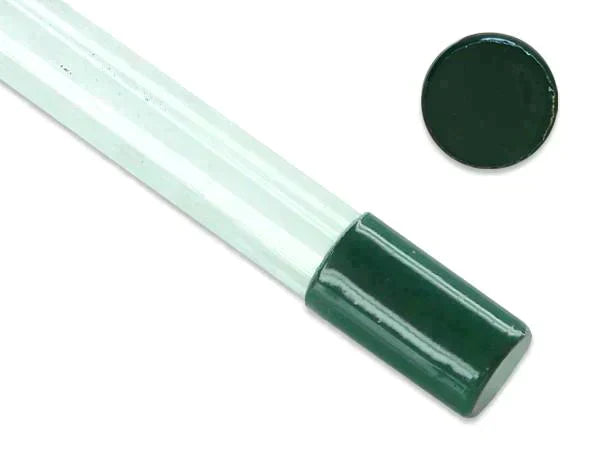

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

• Total Length: 11.3 inches (287mm)
• Arc Length: 7.87 inches (200mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 380mA
• Lamp Voltage: 39V
• Lamp Wattage: 14 Watts
• Output UVC Watts: 4 Watts
• Output uW/cm^2 @ 1m: 40
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin stepped on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Hydro-Safe brand UVC bulbs. All Hydro-Safe brand names, trademarks, and logos are property of Hydro-Safe.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet:

Note: CureUV brand products are 100% compatible with the original equipment.
