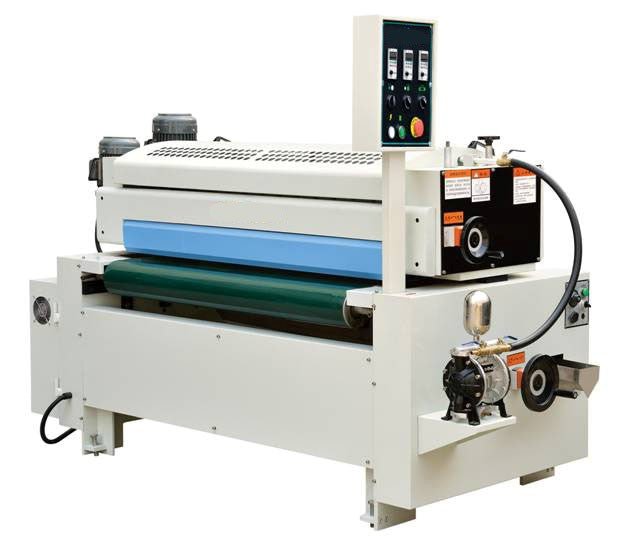

CureUV Industrial Single Roll Coater

Our Industrial Single Roll Coater is designed for precision surface coating of flat materials such as wood, plastic, and metal. This machine delivers a smooth, uniform coating with consistent thickness, enhancing the finish quality of various substrates. It is ideal for high-volume production lines requiring efficiency, accuracy, and minimal waste.

Built with a robust steel framework, the Single Roll Coater features independent control of the doctor and rubber rollers, ensuring precise film thickness adjustment. Its solvent-resistant conveyor belt and standalone control cabinet facilitate both durability and easy maintenance. The machine supports multiple coating types, including PU, UV, and water-based coatings, with an environmentally friendly system that allows for paint recycling.

Note: We can customize these systems to fit your needs exactly. Whether you need more power or a wider roller coater, we would love to help you with your system.

Features:

• Compatible with wood, plastic, metal, and other flat surfaces.
• Ensures a smooth even finish with no flaws, blemishes, or inconsistencies.
• Independent doctor and rubber roller control for consistent coating thickness (5-10g/m²).
• Solvent-resistant conveyor belt for enhanced durability.
• The application roller, doctor roller, and conveyor belt are individually controlled by separate electrical components, ensuring precision in the application of the coating material.
• Standalone control panel simplifies maintenance and improves workplace safety.
• Durable scraper blade is solvent-proof.
• Supports a wide range of coatings, including PU, UV, and water-based materials.
• Built-in paint recycling system for waste reduction and cost savings.
• High-speed production with adjustable conveyor speeds from 5 to 20 meters per minute.
• Green design allows you to reclaim and save unused paint or coatings.
• Optional Machine with PLC board for full automatic operation.

Technical Specifications:

• Type S - 24 Inches (600mm)
  • Coating Width: 600 mm (23.62 inches)
  • Coating Speed: 5-20 m/min
  • Power: 5.62 kW
  • Workpiece Thickness: 3-80 mm
  • Conveyor Roller Diameter: φ140mm * 620mm
  • Rubber Roller Diameter: φ250mm * 750mm
  • Doctor Roller Diameter: φ164mm * 750mm
  • Dimensions (L*W*H): 2500mm*2000mm*1550mm
  • Weight: 1323 lbs

• Type M - 39 Inches (1000mm)
  • Coating Width: 1000 mm (39 inches)
  • Coating Speed: 5-20 m/min
  • Power: 8.68 kW
  • Workpiece Thickness: 3-80 mm
  • Dimensions (L*W*H): 2500mm*2450mm*1550mm
  • Weight: 1764 lbs

• Type L - 51 Inches (1300mm)
  • Coating Width: 1300 mm (51.2 inches)
  • Workpiece Thickness: 3-80 mm
  • Coating Speed: 5-20 m/min
  • Power: 8.68 kW
  • Dimensions (L*W*H): 2500mm*2750mm*1550mm
  • Conveyor Roller Diameter: φ140mm*1320mm
  • Rubber Roller Diameter: φ250mm*1450mm
  • Doctor Roller Diameter: φ164mm*1450mm
  • Weight: 2200 lbS

We can customize these systems to fit your needs exactly. Whether you need more power or a wider roller coater, we would love to help you with your system. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
