Lancaster Pump 4-6 Replacement UVC Light Bulb

4 Pin on a Single End - 16 Watt Germicidal Water Treatment Bulb

The Lancaster Pump 4-6 Replacement UVC Light Bulb is a 16 Watt, four pin on a single end light bulb that has a total length of 12.99" and an arc length of 9.45". The light bulb has a peak output of 253.7nm that helps in deactivating the genetic structure of the microorganisms, rendering them harmless.

The light bulb features a ceramic base material and is compatible with the following germicidal UVC system model:

• LUV-4E

The UVC light technology helps in sterilizing and killing 99.9% microorganisms present in water. It is an effective treatment against molds, bacteria, protozoa, virus and yeast. Researchers are of the opinion that UV water purification provides a safe solution as this method of sterilization is a purely physical process and does not alter the pH, chemistry or taste of water. This method is both economic and environmental friendly and is a much better option to chemicals and their bi-products. People are of the opinion that this system provides a safe solution against microorganisms such as giardia and cryptosporidium, that are resistant to chlorine disinfection.

Technical Specifications:

• Total Length: 12.99 inches (330mm)
• Arc Length: 9.45 inches (240mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Wattage: 16 Watts
• Output UVC Watts: 4.5 Watts
• Output uW/cm^2 @ 1m: 46
• Peak UV Output: 253.7nm
• Glass Type: Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

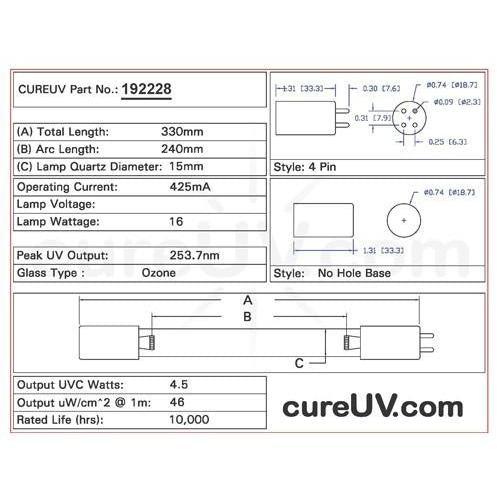

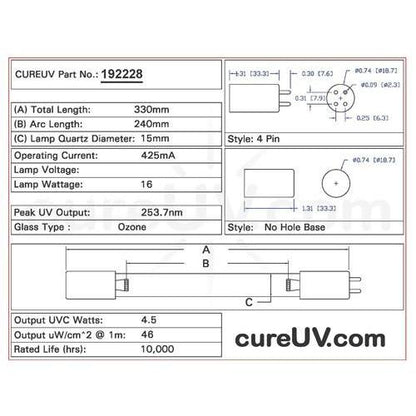

Drawing of Replacement UVC Bulb Item # 192228 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs Ozone (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Lancaster Pump brand UVC bulbs. All Lancaster Pump brand names, trademarks, and logos are property of Lancaster Pump.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
