Larson Electronics FRL-BX-21-55W-UVC-2G11 UVC Light Bulb - CureUV Brand

Guaranteed Replacement Ultraviolet (UV) Bulb - 4 Pin in Straight line on a Single End 2G11 - U-bend tube - 55 Watts - 21.06 Inch Length Lamp - Worry Free Performance for 1 Year

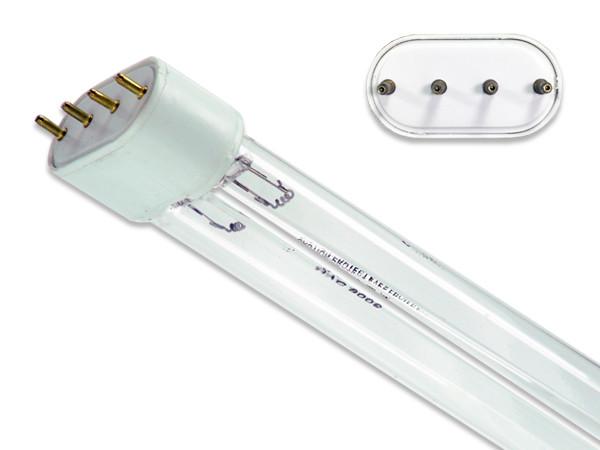

Our CureUV brand Replacement UVC Light Bulb for Larson Electronics FRL-BX-21-55W-UVC-2G11 is a 55-watts UV bulb that features four pins in a straight line on a single-end 2G11. The U-bend tube is tested for quality and will give you worry-free performance for a year. It is recommended that you change the light bulb annually for better performance of your system.

It works well with air sterilization filters, purifiers, and sanitizers. The lamp uses 253.7nm of UV light in water and renders the microorganisms harmless. It inactivates the genetics of microorganisms and is best used for air and water purifications. The fixture has high quality and low mercury dosage that helps in meeting all environmental demands.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. The UV lamp starts instantly and makes use of a coil filament that operates hot. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Common Applications:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

Technical Specifications:

• Total Length: 21.06 inches (535mm)
• Arc Length: 19.29 inches (490mm)
• Lamp Quartz Diameter: 17mm Twin Tube
• Operating Current: 540mA
• Lamp Voltage: 103V
• Lamp Wattage: 55 Watts
• Output UVC Watts: 17 Watts
• Peak UV Output: 253.7nm
• Glass Type: Low Ozone
• Base Style: 4 pin 2G11 on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UV lamps listed are compatible brand UV products. We do not sell the entire product line of Larson Electronics brand UV sanitizer lamps. All Larson Electronics brand names, trademarks and logos are property of Larson Electronics.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet:

•  Note: CureUV brand products are 100% compatible with the original equipment.
