LCUV LED Spot Cure System
LCUV LED Spot Cure System
SKU:303175-365-3
Couldn't load pickup availability
High power super focused LED Curing system
The high power LCUV LED Spot Cure System is a curing system designed to efficiently focus LED technology optimizing its effectiveness. The replacement of Mercury Vapor represents a big advance in the industry, ensuring the safety of workers and more efficient work.
Features:
- Focused LED Curing system reduces energy waste
- The use of LED instead of medium pressure lamps ensures 'cool' light with no IR transmission
- Replace Mercury Vapor with a safe option
- Operative Pedal for ease of use
Available in a range of choices to make sure your curing systems target the exact wavelength you need without wasting energy, time, or cutting short. LED lamps ensure no IR transmission, and the medium pressure helps the bulbs keep cool.

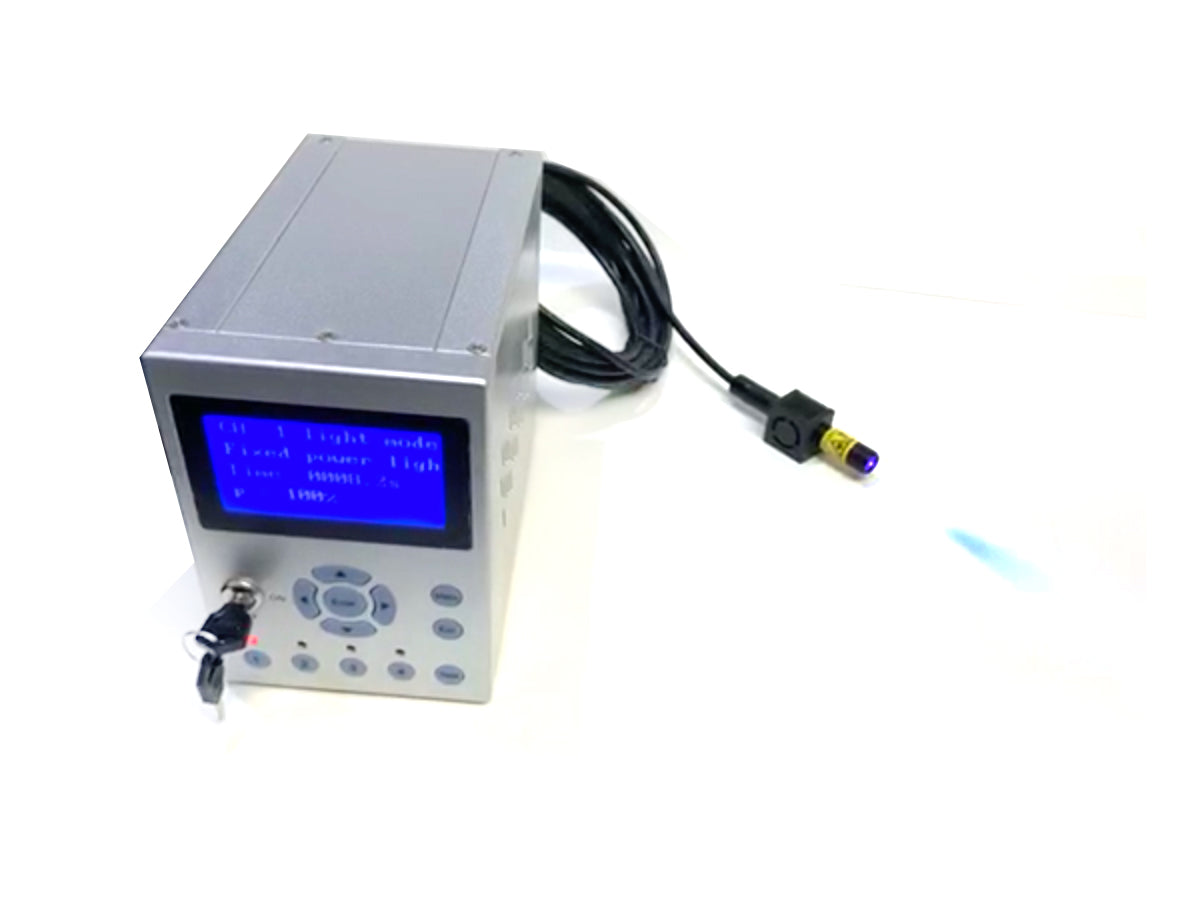

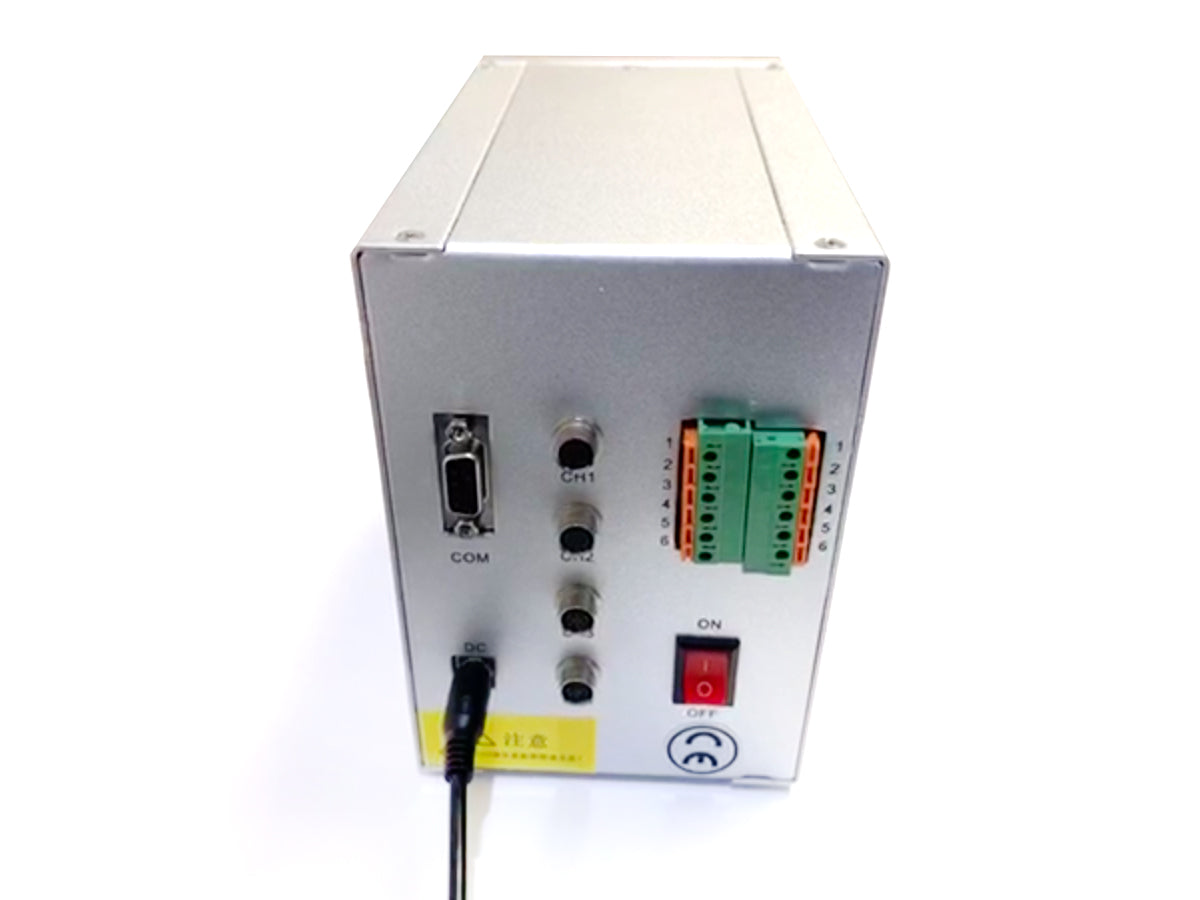

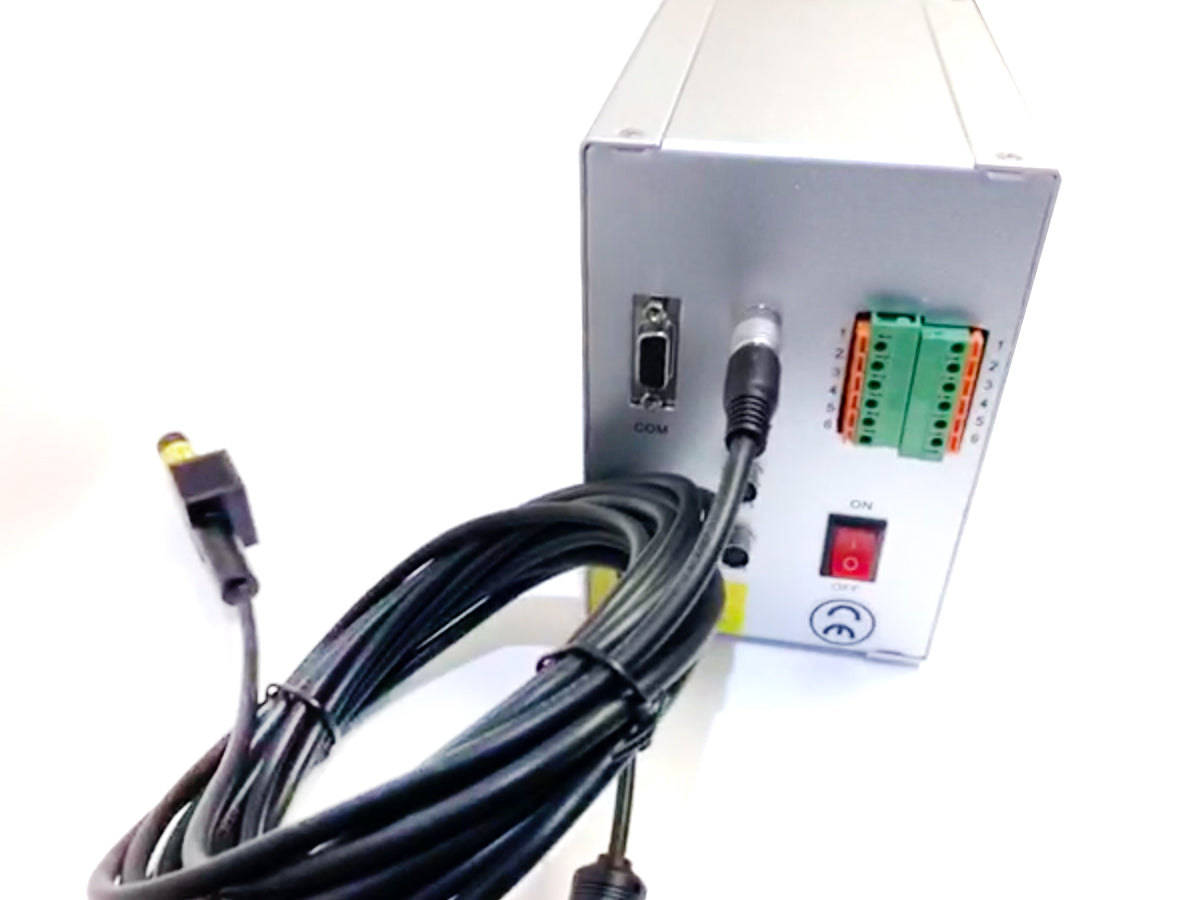

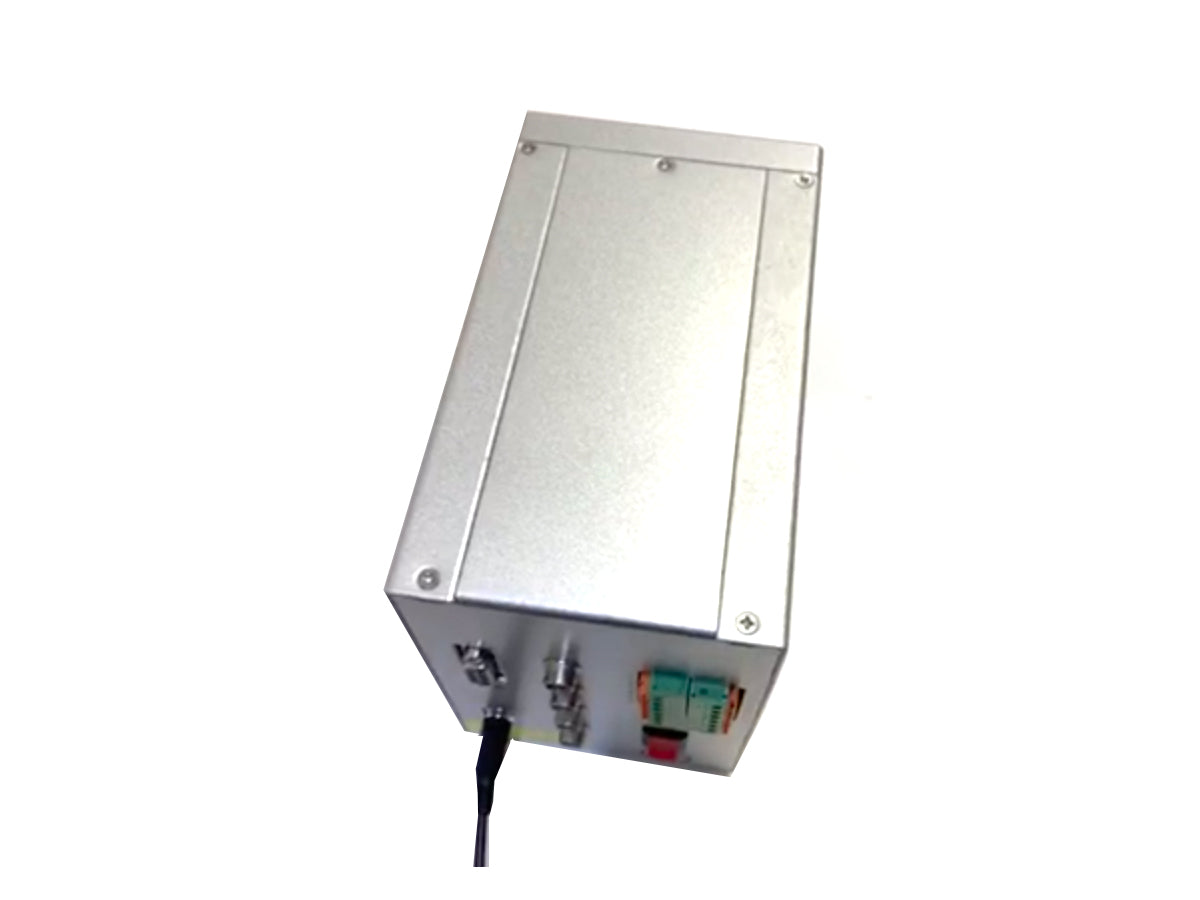

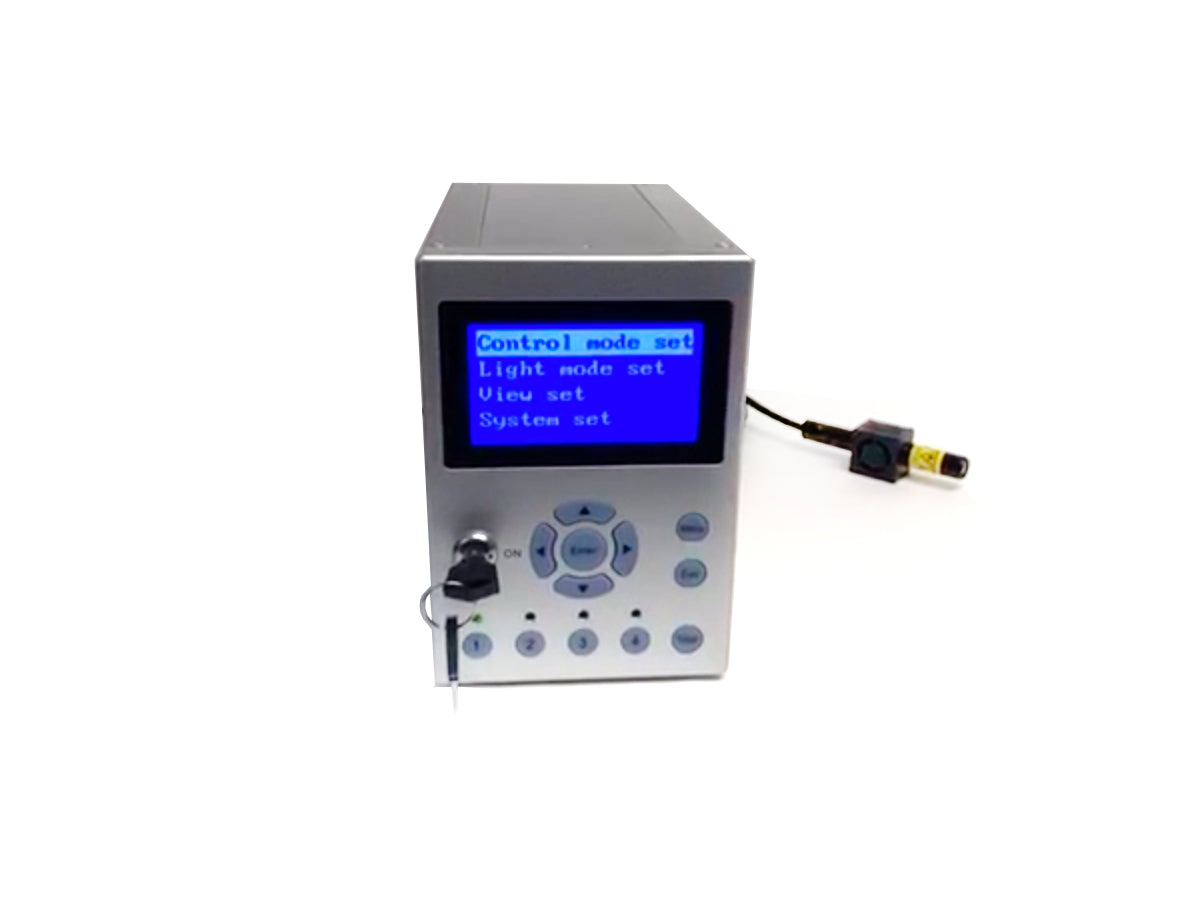

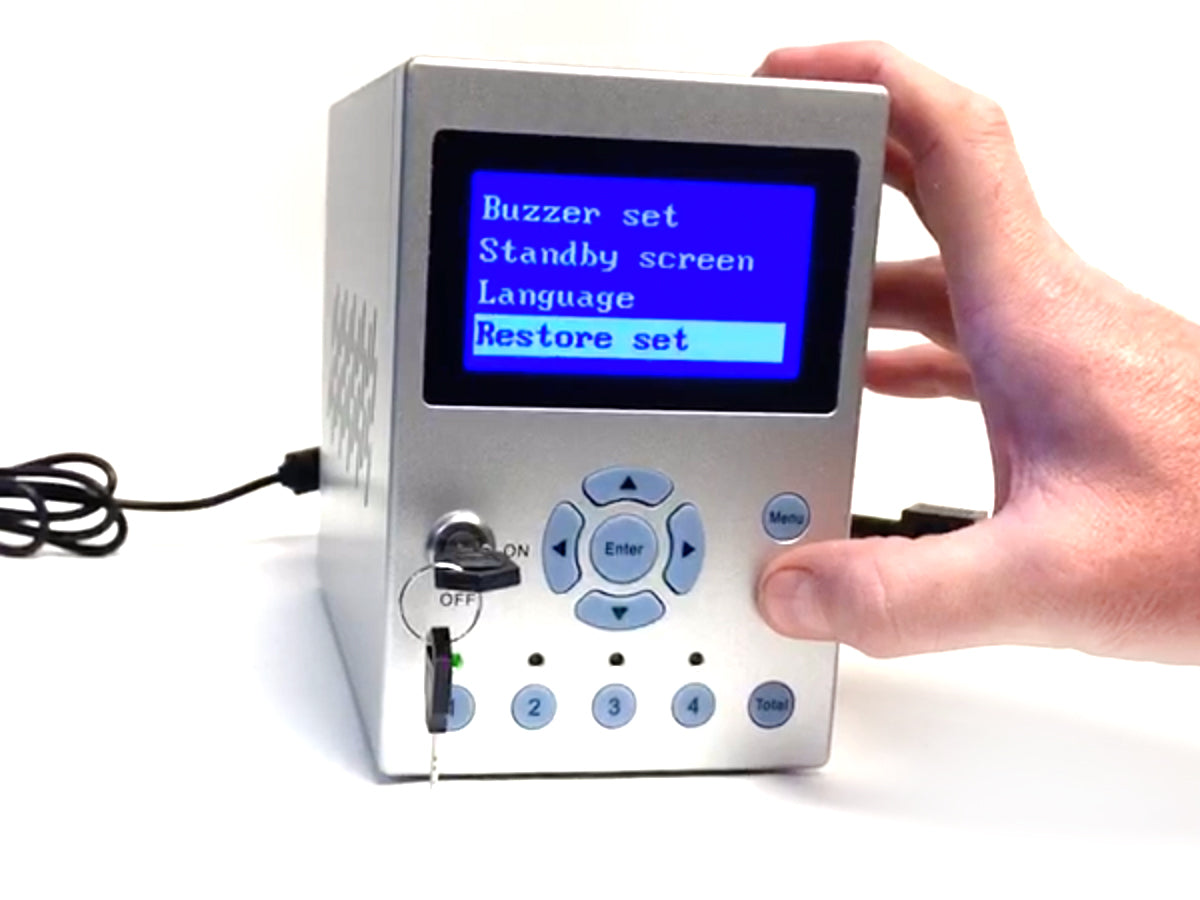

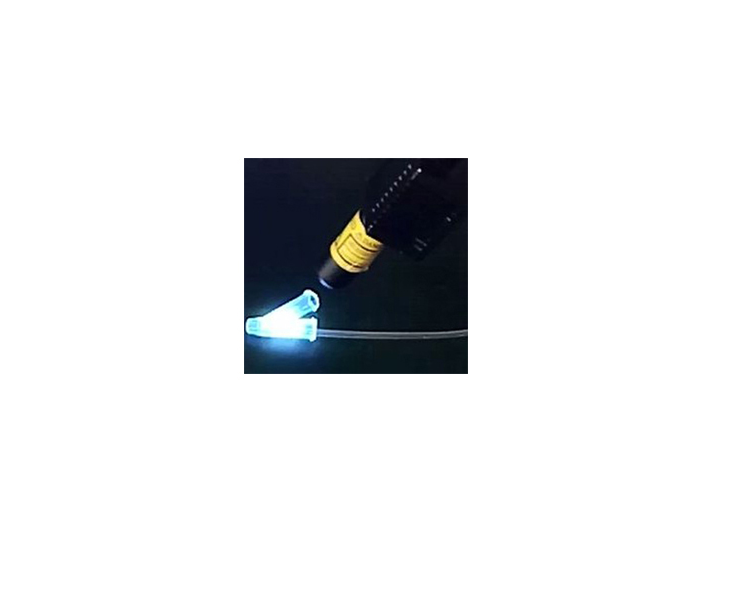

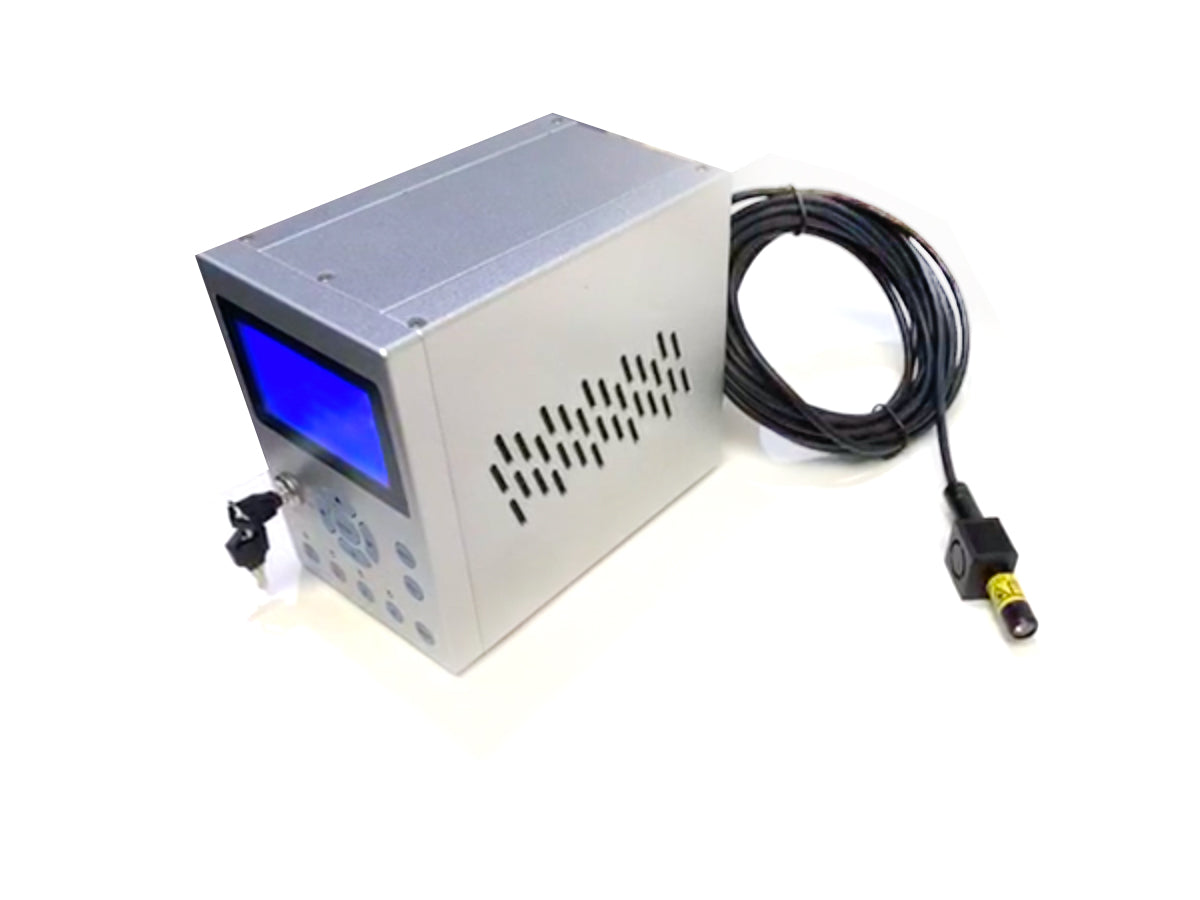

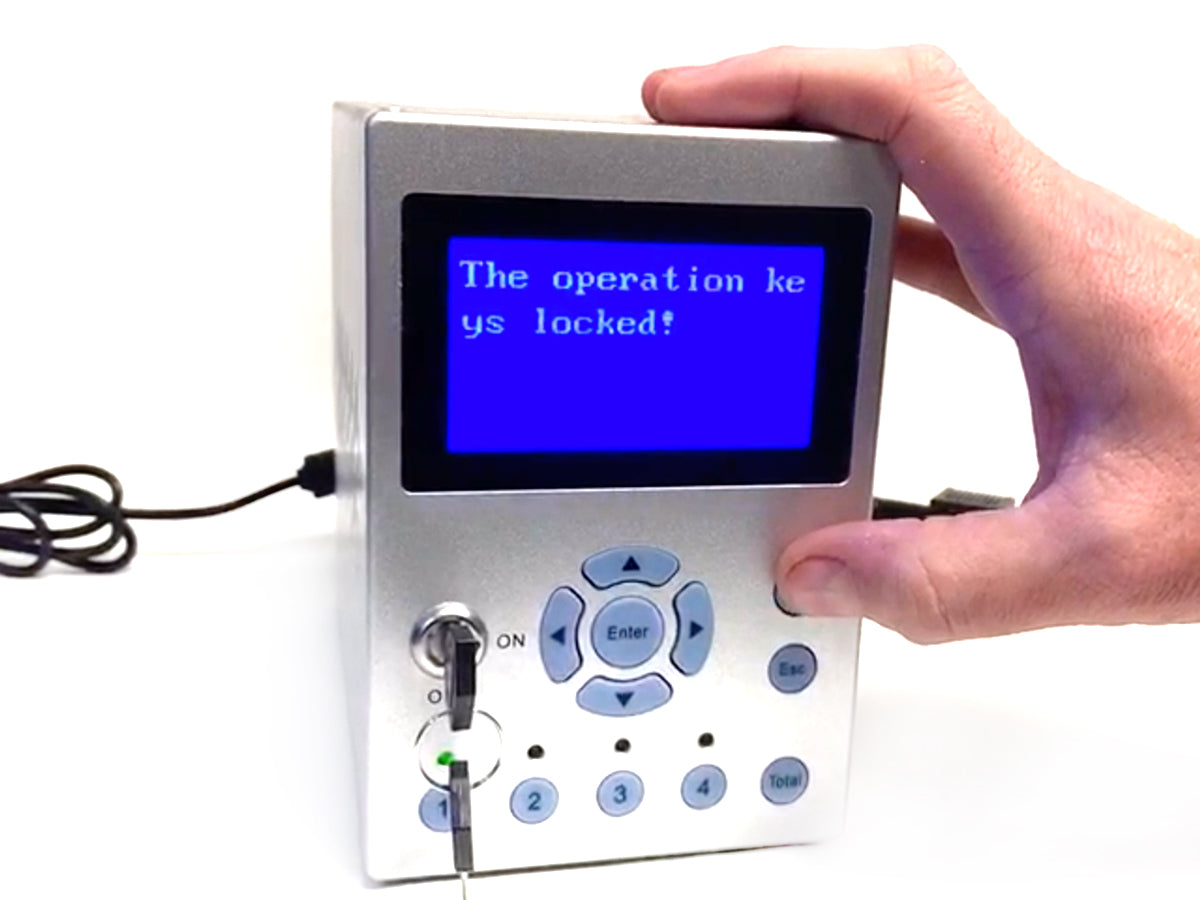

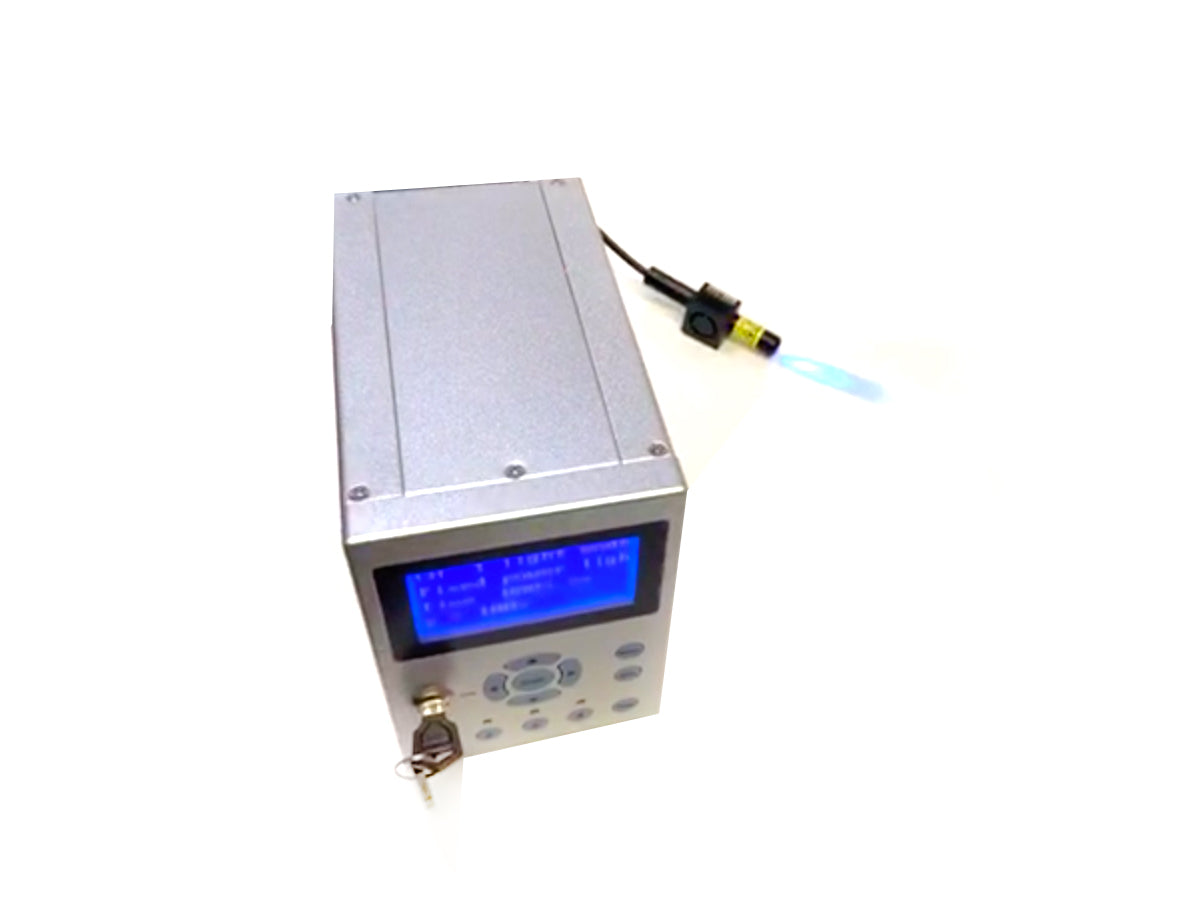

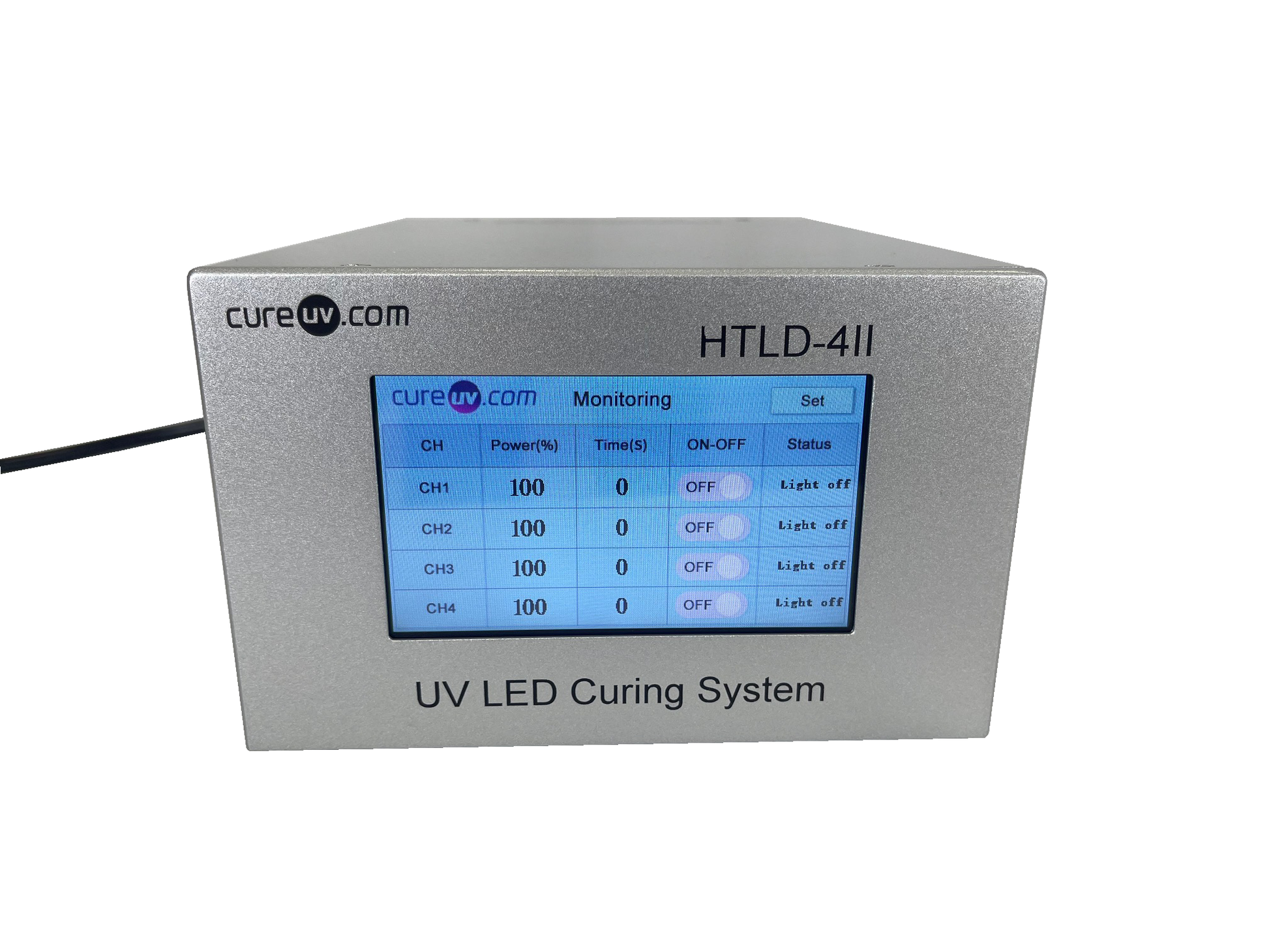

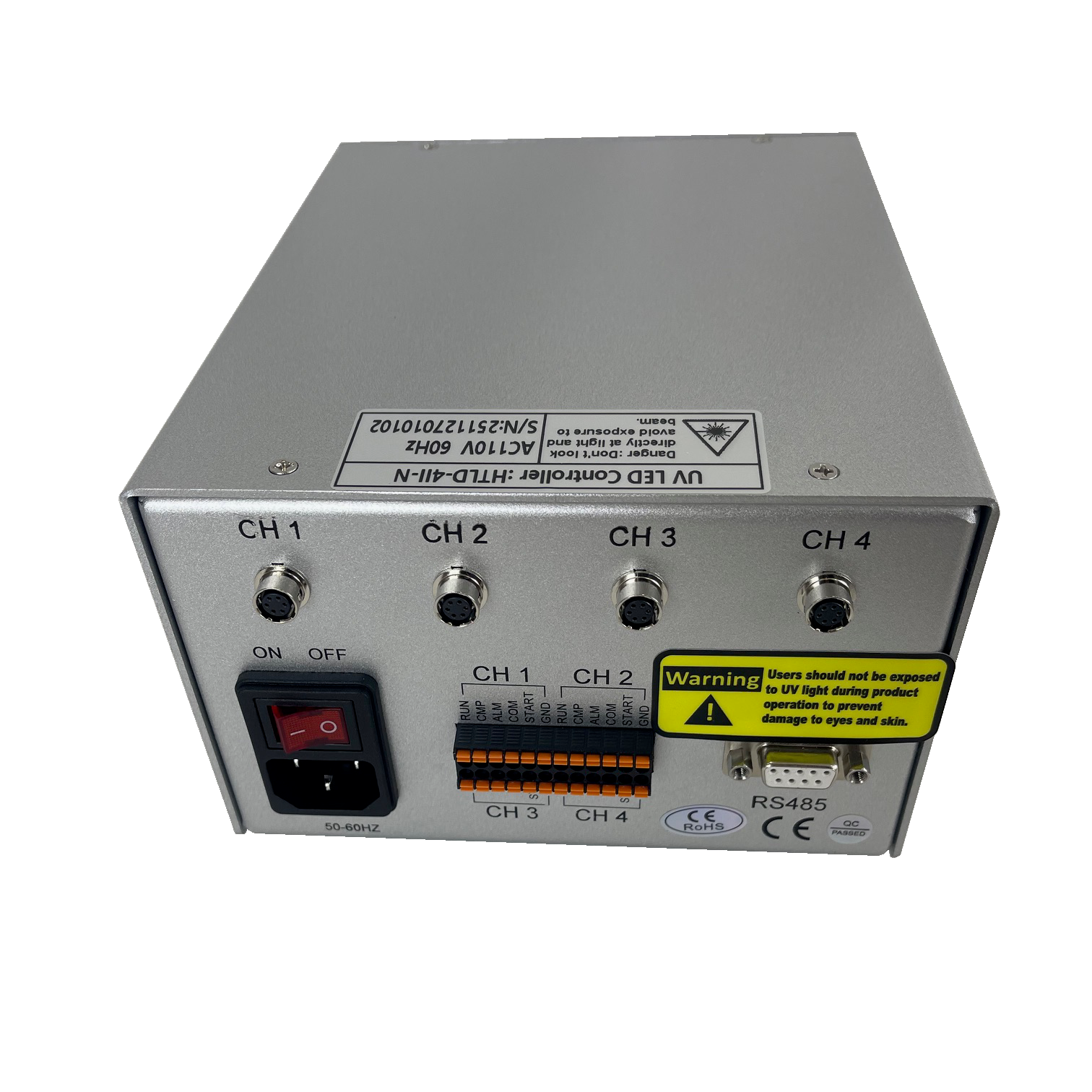

The system comes complete with a Power Supply Controller and LCUV Irradiation Head. Forced cooling and external inputs for semi-automatic production needs.
Applications
- Adhesives, glues
- Potting
- Temperature-sensitive substrates
- Conformal encapsulating
- PCB board manufacturing
- Pharmaceutical
Specifications:
- LED Hour Rating: 25,000 hours
- Cable Length: 6 feet
- Operating Temperature: 14° F to 122° F
- Available in: 365nm, 395nm, & 405nm
- Includes one light guide*
- Includes one Pedal
*If you need more than one; light guides of all available wavelengths and spot diameters are available in our online shop.
LED Spot Cure Utility Fixture Now Available!

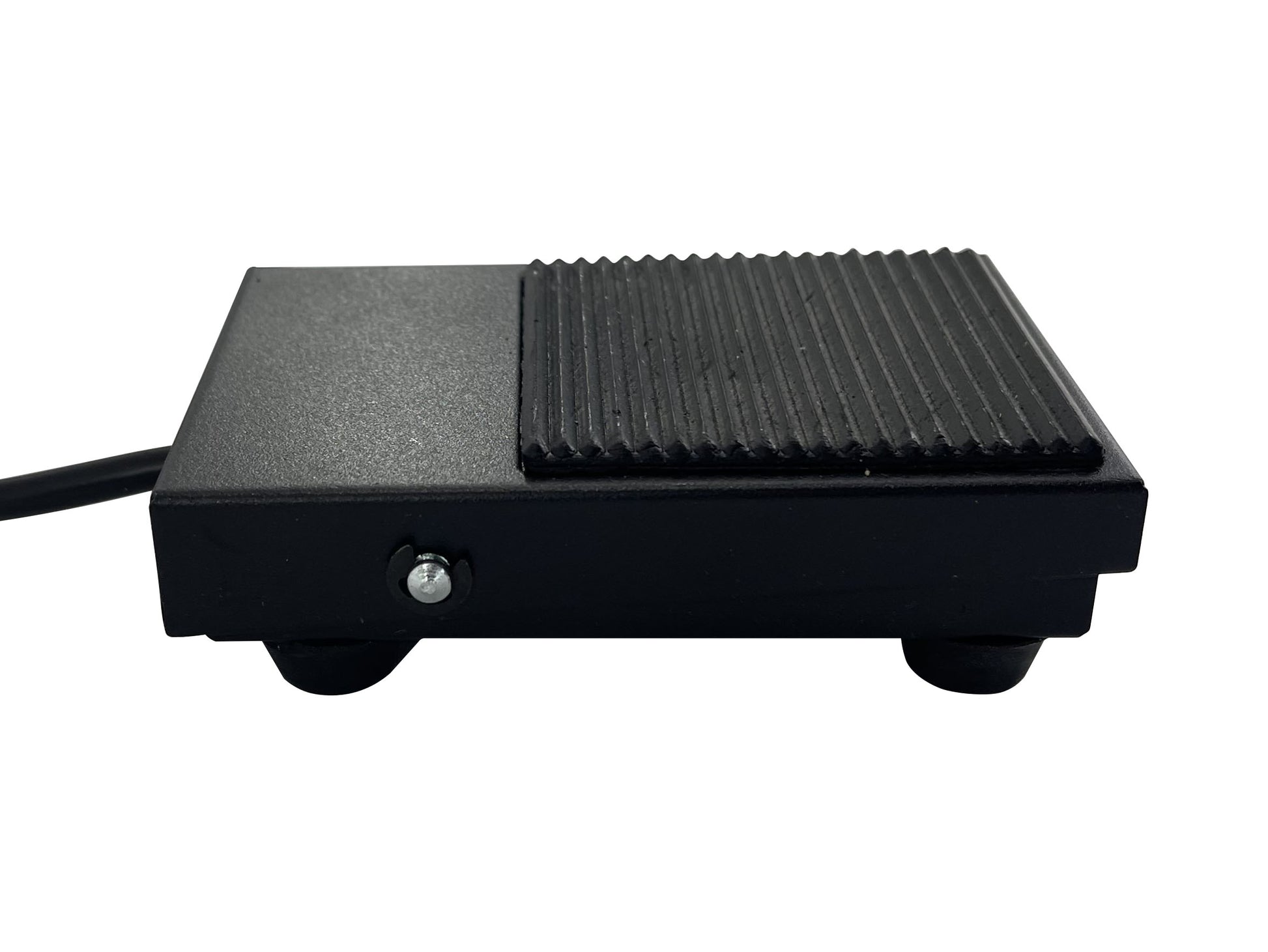

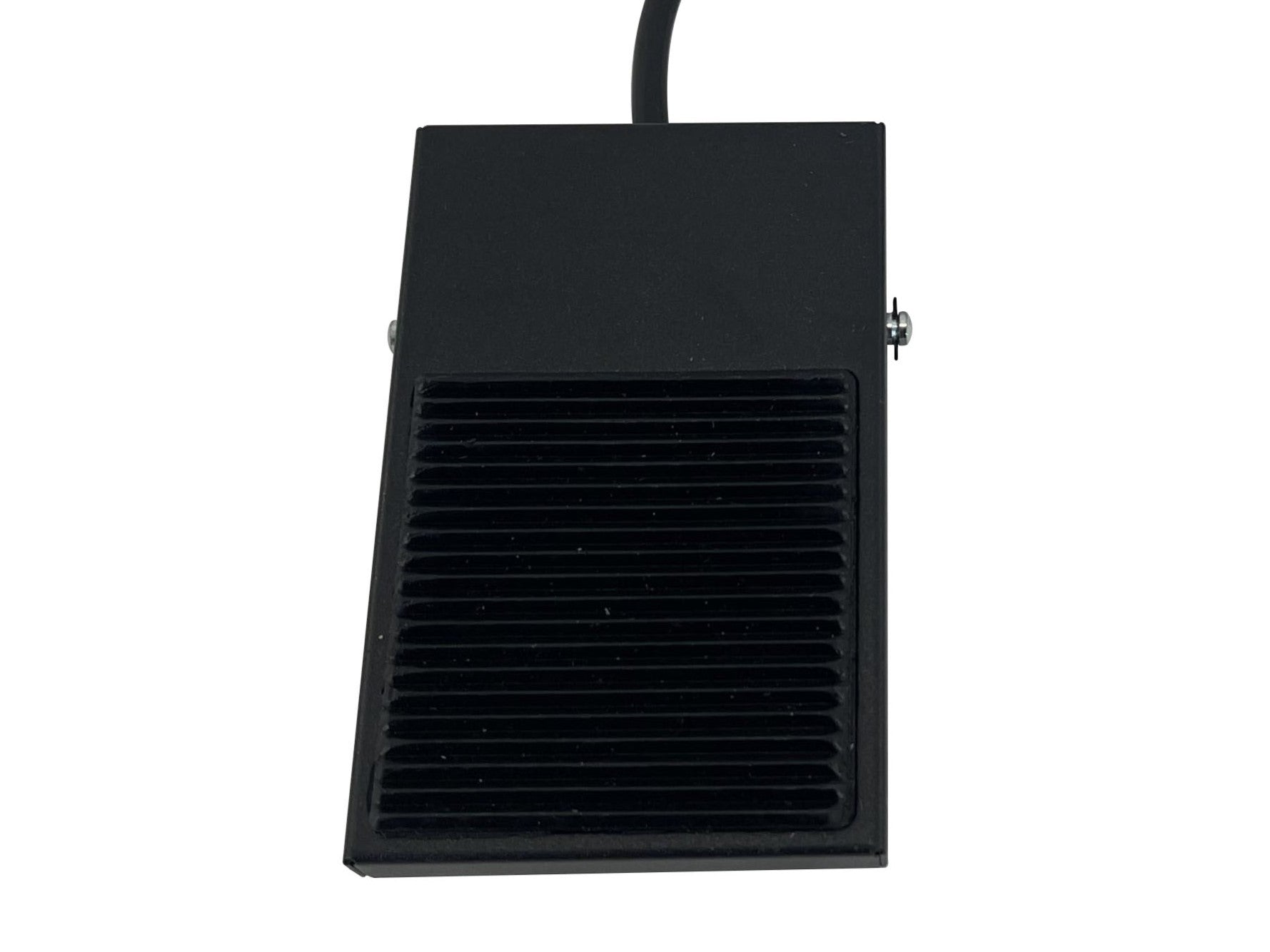

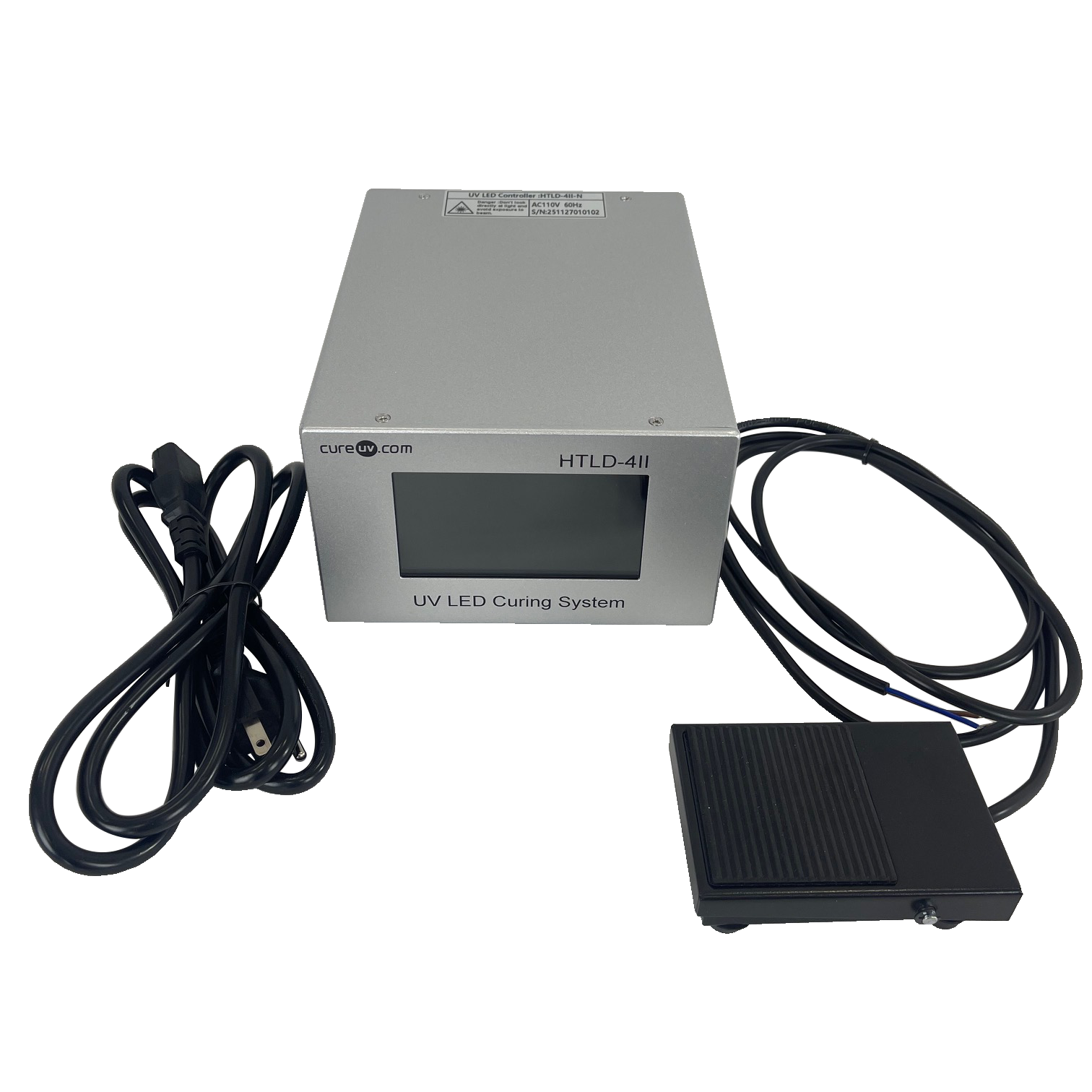

This system includes an operative pedal for ease of use
User Manual:

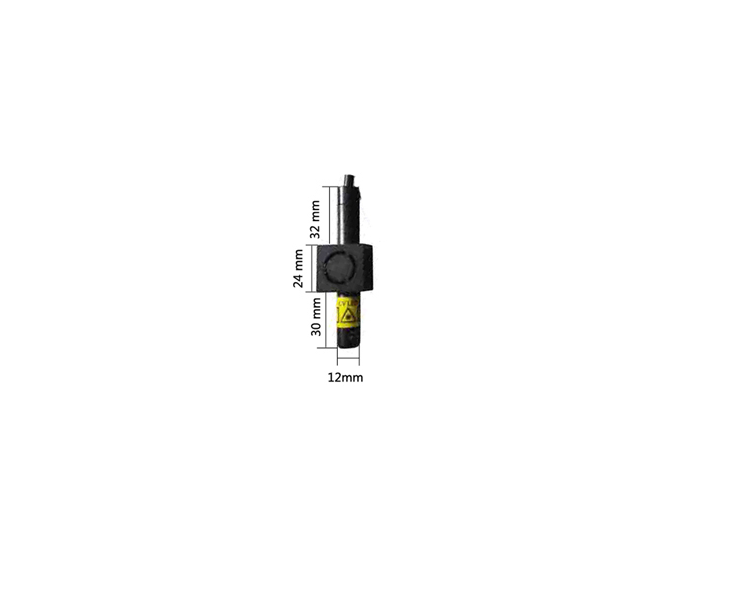

Technical Drawing with Fan:
Technical Drawing without Fan:
If you have any questions or are just unsure about anything give us a call at (561) 243-8442 or email us at sales@cureuv.com and we will gladly help you out.
Also Known As:
Also Known As:
Technical Data for LCUV LED Spot Cure System
365 nm Wavelength:
|
Spot Diameter
|
3mm
|
4mm
|
6mm
|
8mm
|
10mm
|
12mm | 15mm |
|
Light Intensity
|
10,400 mW/cm2 | 12,600 mW/cm2 | 6,200 mW/cm2 | 4,800 mW/cm2 | 2,500 mW/cm2 | 2,100 mW/cm2 | 1,900 mW/cm2 |
385 nm Wavelength:
|
Spot Diameter
|
3mm
|
4mm
|
6mm
|
8mm
|
10mm
|
12mm | 15mm |
|
Light Intensity
|
9,200 mW/cm2 | 10,100 mW/cm2 | 5,600 mW/cm2 | 4,200 mW/cm2 | 2,700 mW/cm2 | 2,700 mW/cm2 | 1,800 mW/cm2 |
395 nm Wavelength:
|
Spot Diameter
|
3mm
|
4mm
|
6mm
|
8mm
|
10mm
|
12mm | 15mm |
|
Light Intensity
|
14,300 mW/cm2
|
15,100 mW/cm2
|
8,500 mW/cm2
|
6,100 mW/cm2
|
3,800 mW/cm2
|
3,800 mW/cm2 | 2,400 mW/cm2 |
405 nm Wavelength:
|
Spot Diameter
|
3mm
|
4mm
|
6mm
|
8mm
|
10mm
|
12mm | 15mm |
|
Light Intensity
|
15,500 mW/cm2
|
17,400 mW/cm2
|
10,200 mW/cm2
|
7,300 mW/cm2
|
4,600 mW/cm2
|
4,800 mW/cm2 | 3,000 mW/cm2 |
