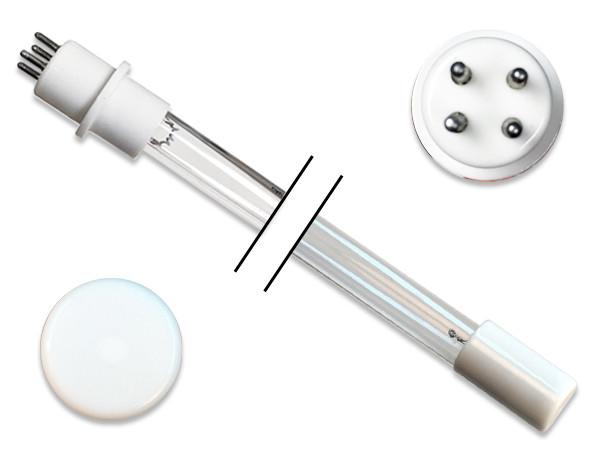

Lennox International 64X36 Replacement UVC Light Bulb

22 Watt Air Treatment UV Bulb - 4 Pin Cell Base on a Single End

The Lennox International 64X36 Replacement UVC Light Bulb is a 22 Watt Air Treatment UV Bulb that is a 4 pin cell base on a single end light bulb.

The 22 Watts bulb is completely compatible with germicidal OEM water disinfection filters, ultraviolet purifiers, and UV sanitizers. The UVC light technology is believed to sanitize and kill over 99.99% germs in the water. The lamp bulb works effective against bacteria, molds, virus, protozoa and yeast. People believe that UV water purification provides a safe solution and this method of sterilization is a purely physical process and does not alter the pH, chemistry or taste of water. This method is both economic and environmental friendly and is a much better option to chemicals and their bi-products. The UV lamps emit wavelength energy of 254 nm and this energy reacts with the genetics of the microorganisms.

The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. All you will need to do is to select the option above. The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

Technical Specifications:

• Total Length: 16.14 inches (410mm)
• Arc Length: 12.99 inches (330mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 52V
• Lamp Wattage: 22 Watts
• Output UVC Watts: 8 Watts
• Output uW/cm^2 @ 1m: 70
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin cell base on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Lennox International brand UVC bulbs. All Lennox brand names, trademarks, and logos are property of Lennox International.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
