Life Flo GPH843T5L/4P-Life-Flo Replacement UVC Light Bulb

4 Pin on a Single End - 40 Watt Germicidal Water Treatment Bulb

The Life Flo GPH843T5L/4P-Life-Flo Replacement UVC Light Bulb is a four pin on a single end light bulb that has a total length of 33.19" and an arc length of 29.92". The UVC lamp bulb has a lamp voltage of 120V and wattage of 40Watts. Made using ceramic, the UVC light bulb has a rated life of 10,000 hours after which we recommend that you replace the light bulb for better performance.

All the light bulbs and UVC replacement parts from CureUV are rigorously tested for quality to ensure that you always get the best. This UVC bulb is compatible to work with the following germicidal UVC system models:

• 6 GPM
• 12 GPM

The UVC light technology acts on microorganisms such as bacteria, yeast, molds, protozoa and virus by emitting a powerful wavelength of 253.7nm. When this short wave is passed in water, it reacts with the genetics of the microorganisms rendering them incapable of reproduction.

Technical Specifications:

• Total Length: 33.19 inches (843mm)
• Arc Length: 29.92 inches (760mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 120V
• Lamp Wattage: 40 Watts
• Output UVC Watts: 13.8 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Applications:

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

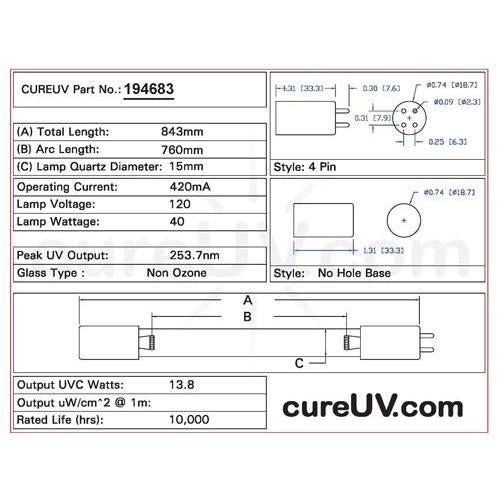

Drawing of Replacement UVC Bulb Item # 194683 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Life Flo brand UVC bulbs. All Life Flo brand names, trademarks, and logos are property of Life Flo.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
