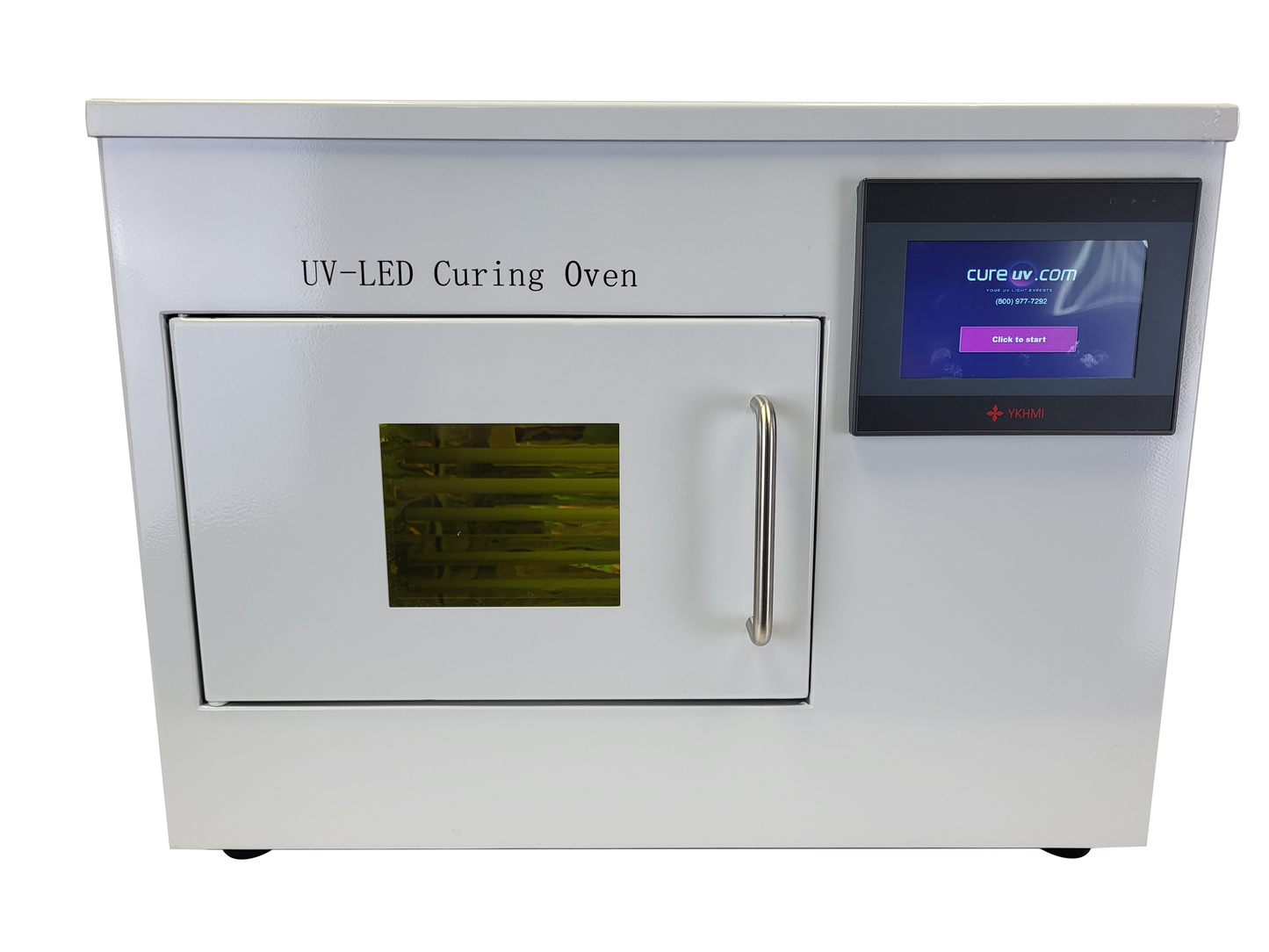

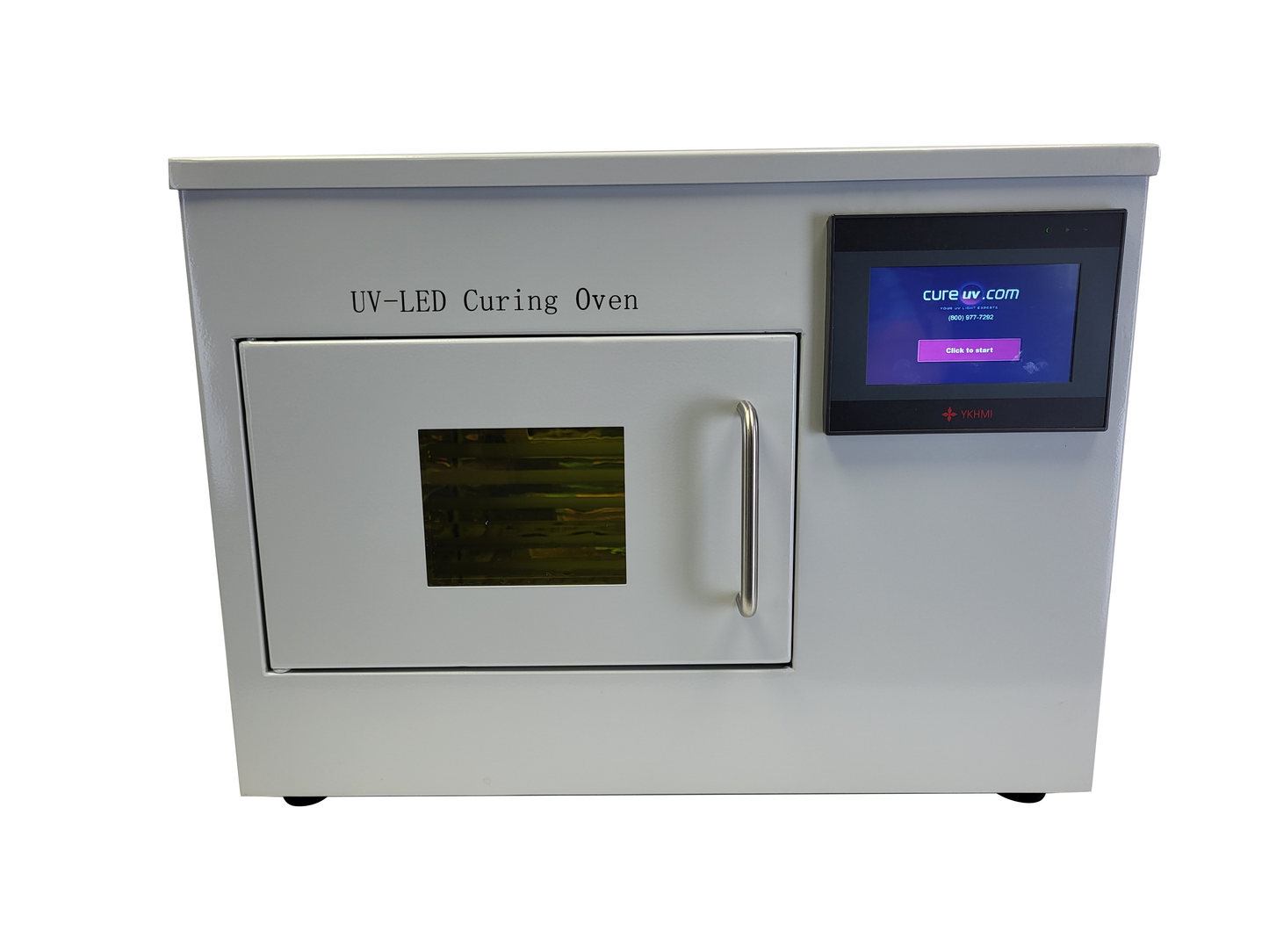

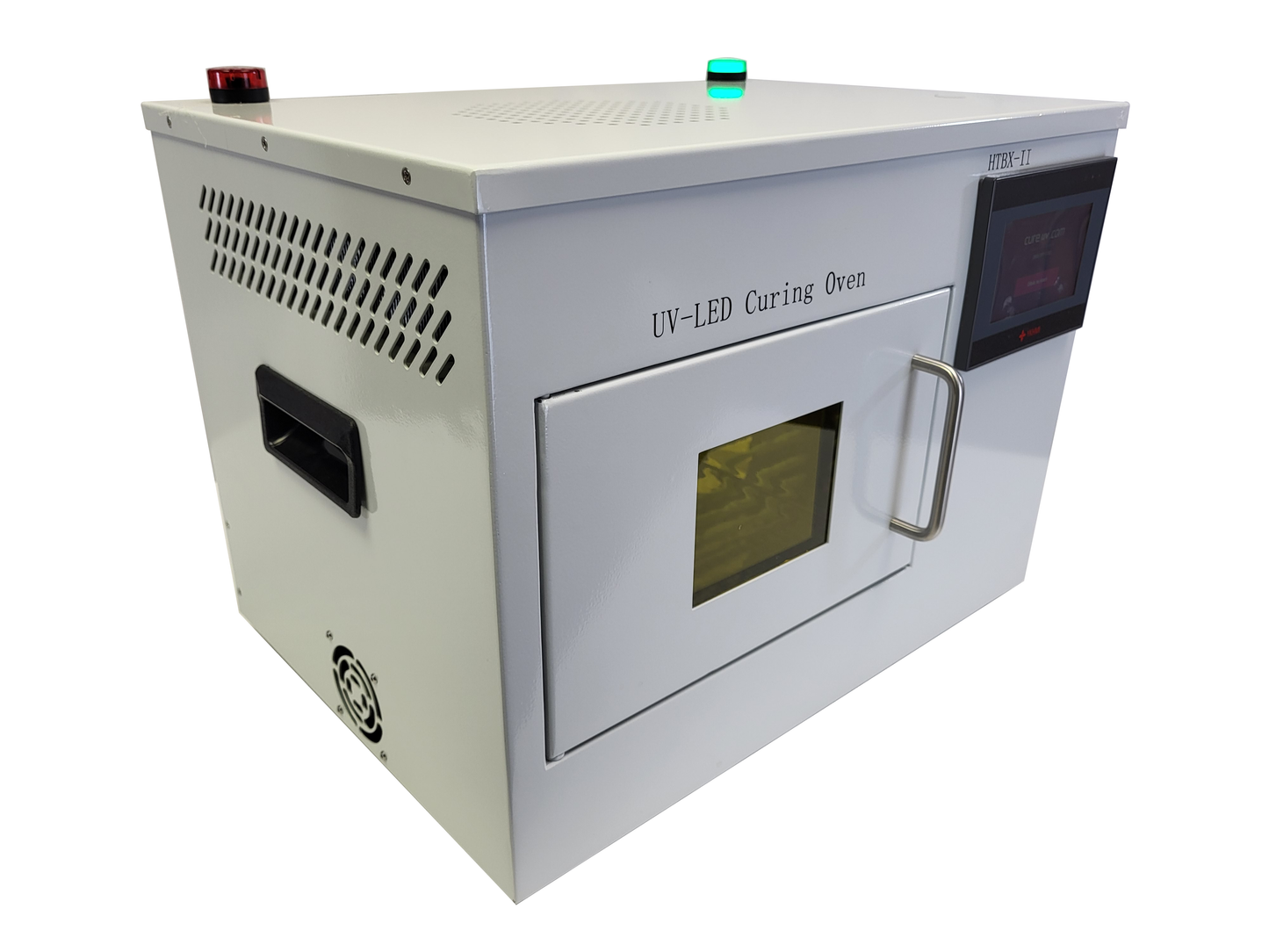

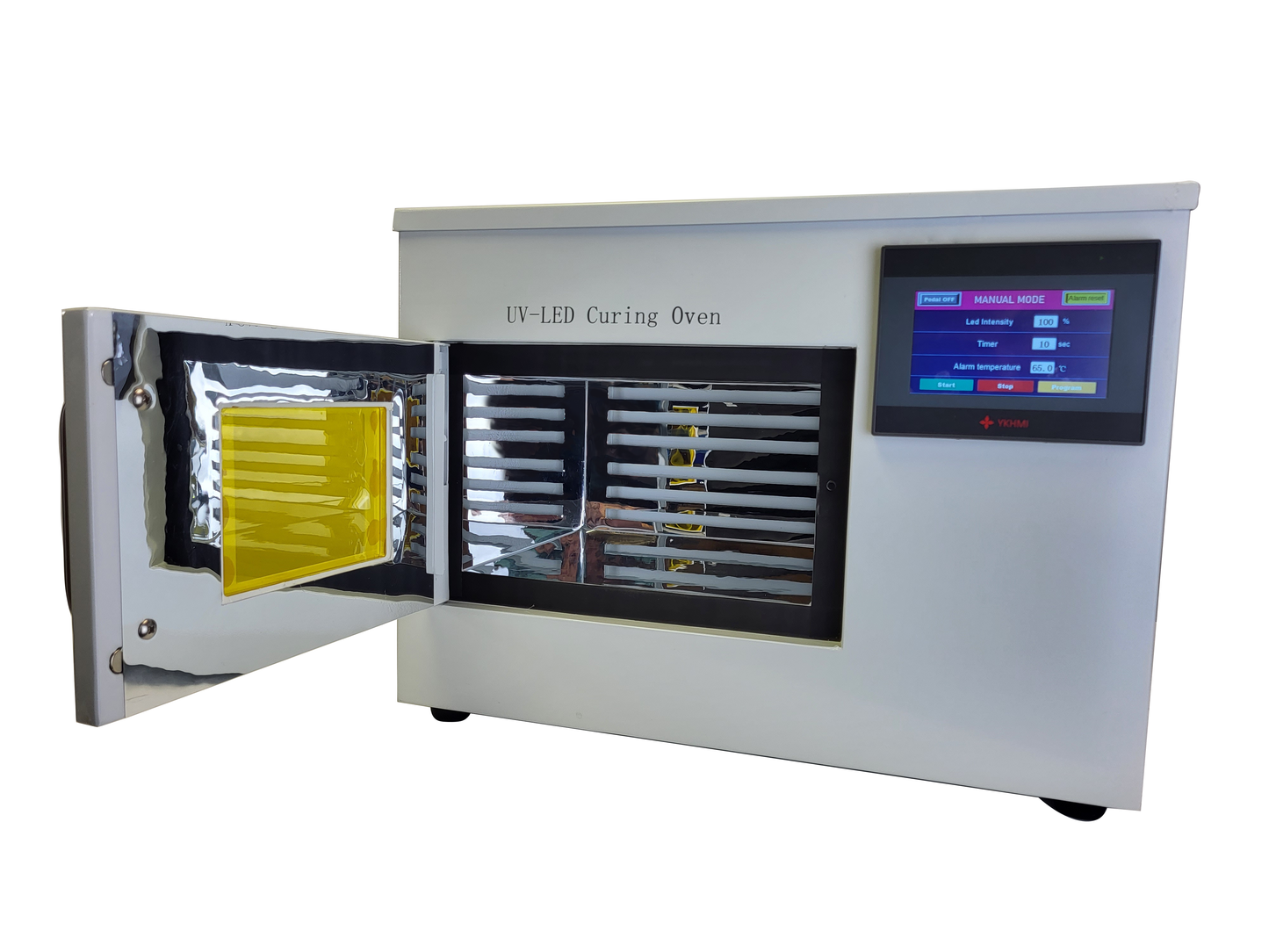

Mid-Powered LED UV Curing Oven (230mm L x 220mm W x 130mm H)

The Medium 220X230mm LED UV Curing Oven is a UV LED Curing Oven with a curing area of 220x230mm. Wavelength available in 365nm, 385nm, 395nm and 405nm to rapidly and effectively cure most materials, that might vary between UV glues, UV inks, UV varnishes, UV paints, and others. This curing system requires no warm-up time and remains cool, protecting heat-sensitive materials and saving you time and money.

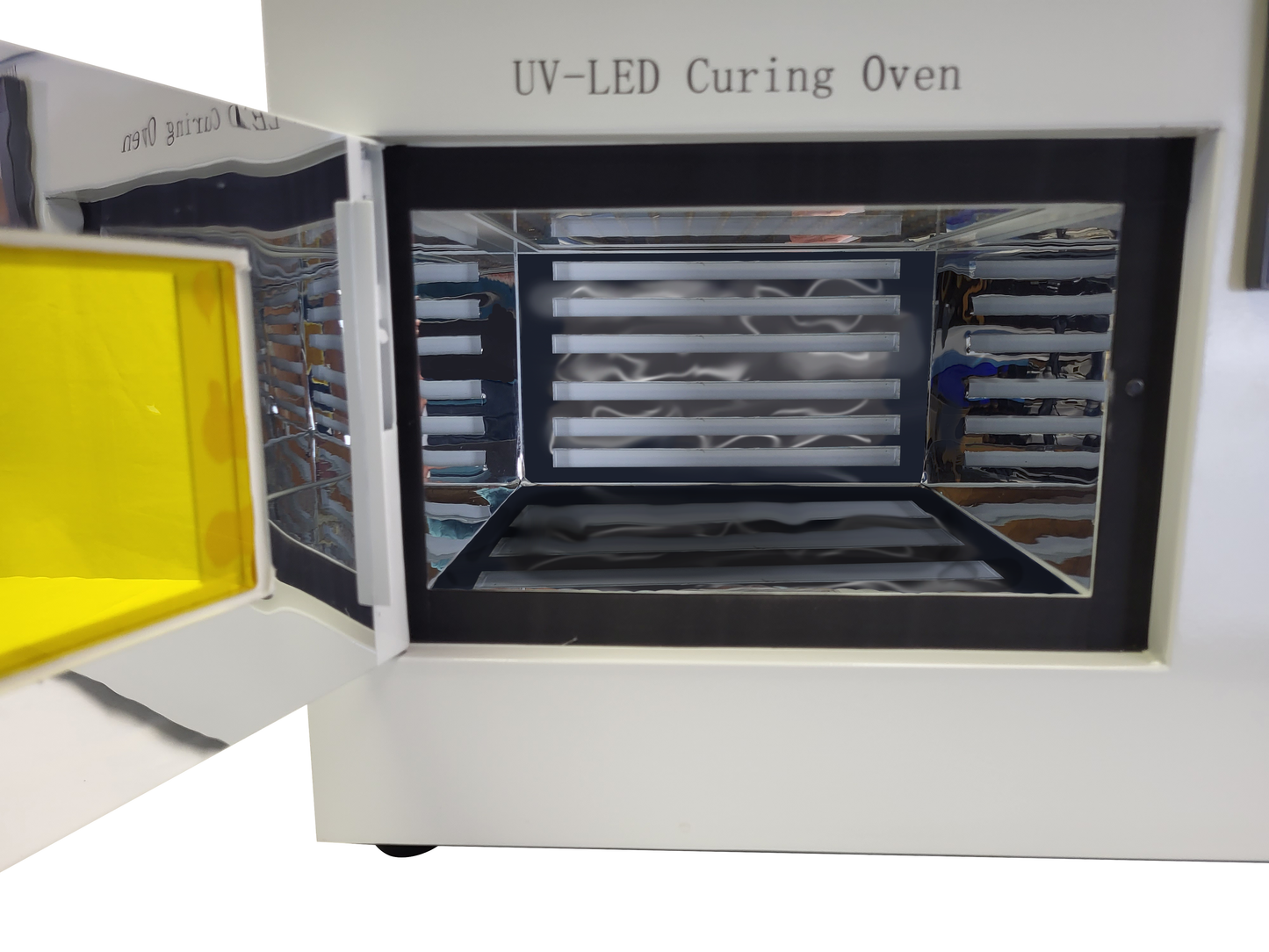

The system hat consists of an oven, UV LED irradiation head and the corresponding connecting wires. The irradiation head is a UV LED system integrated with imported high-quality UV LEDs. The wavelength of this curing system is 365/385/395/405nm and its curing area is 200x200nm. The forced air cooling ensures the system correctly works for prolonged periods, supports external signal input and trigger.

Features:

• Available in 365/385/395/405nm wavelength are suitable for curing most UV glues, adapting to the job at hand
• Cold light source makes it suitable for any heat-sensitive material
• Ready for immediate use, maximum light intensity can be reached in an instant
• Easy to control and power saving

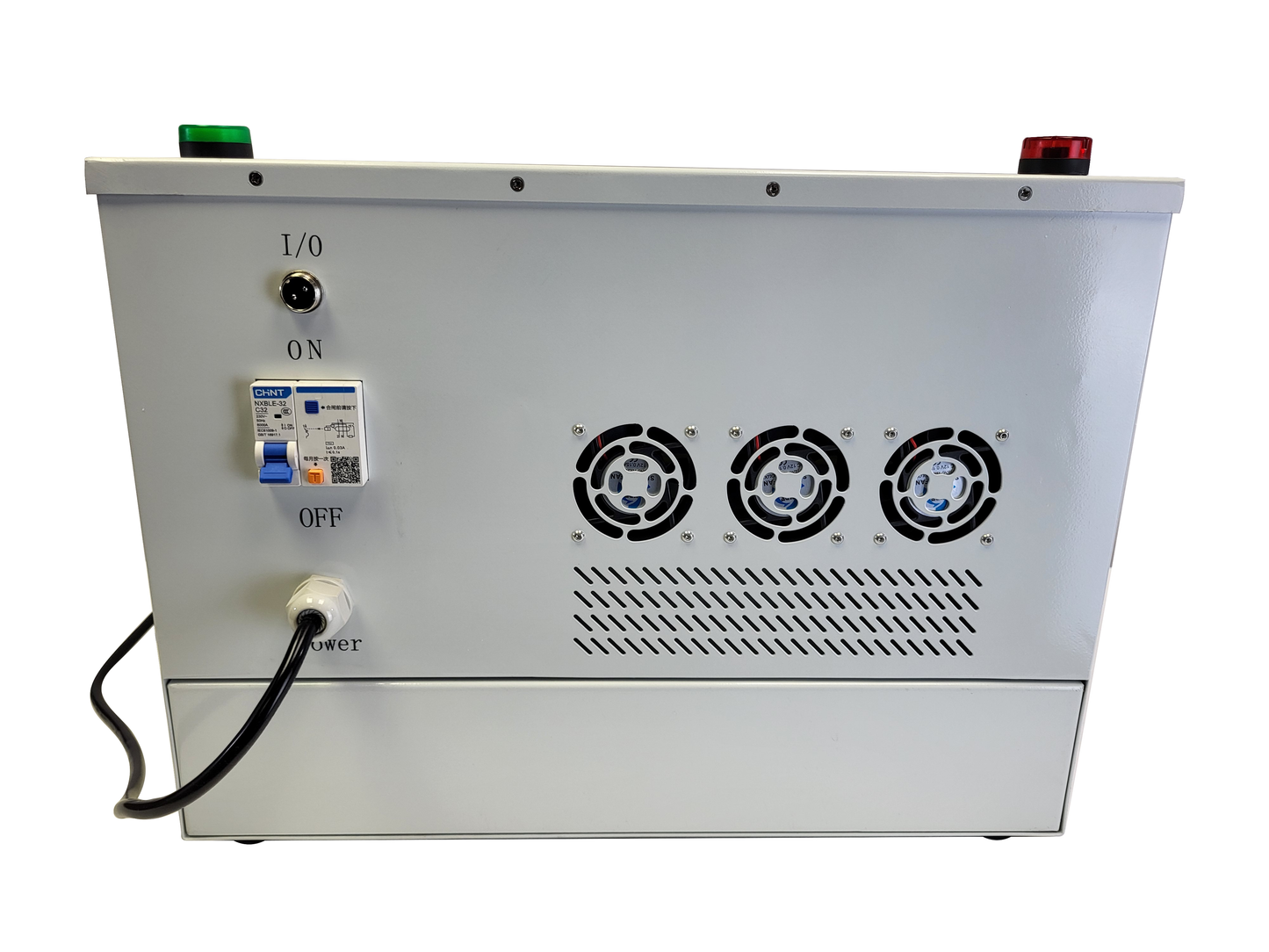

• Forced air cooling ensures the system correctly works for prolonged periods
• Mercury-free and ozone-free

Specifications:

365nm

• Wavelength: 365nm
• Electric Power: 588W
• Optic Power: 800mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

385nm

• Wavelength: 385nm
• Electric Power: 588W
• Optic Power: 900mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

395nm

• Wavelength: 395nm
• Electric Power: 588W
• Optic Power: 1500mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

405nm

• Wavelength: 405nm
• Electric Power: 588W
• Optic Power: 1500mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

User Manual:

Technical Data Sheet:

Technical Drawing:

Product Video:

If you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
