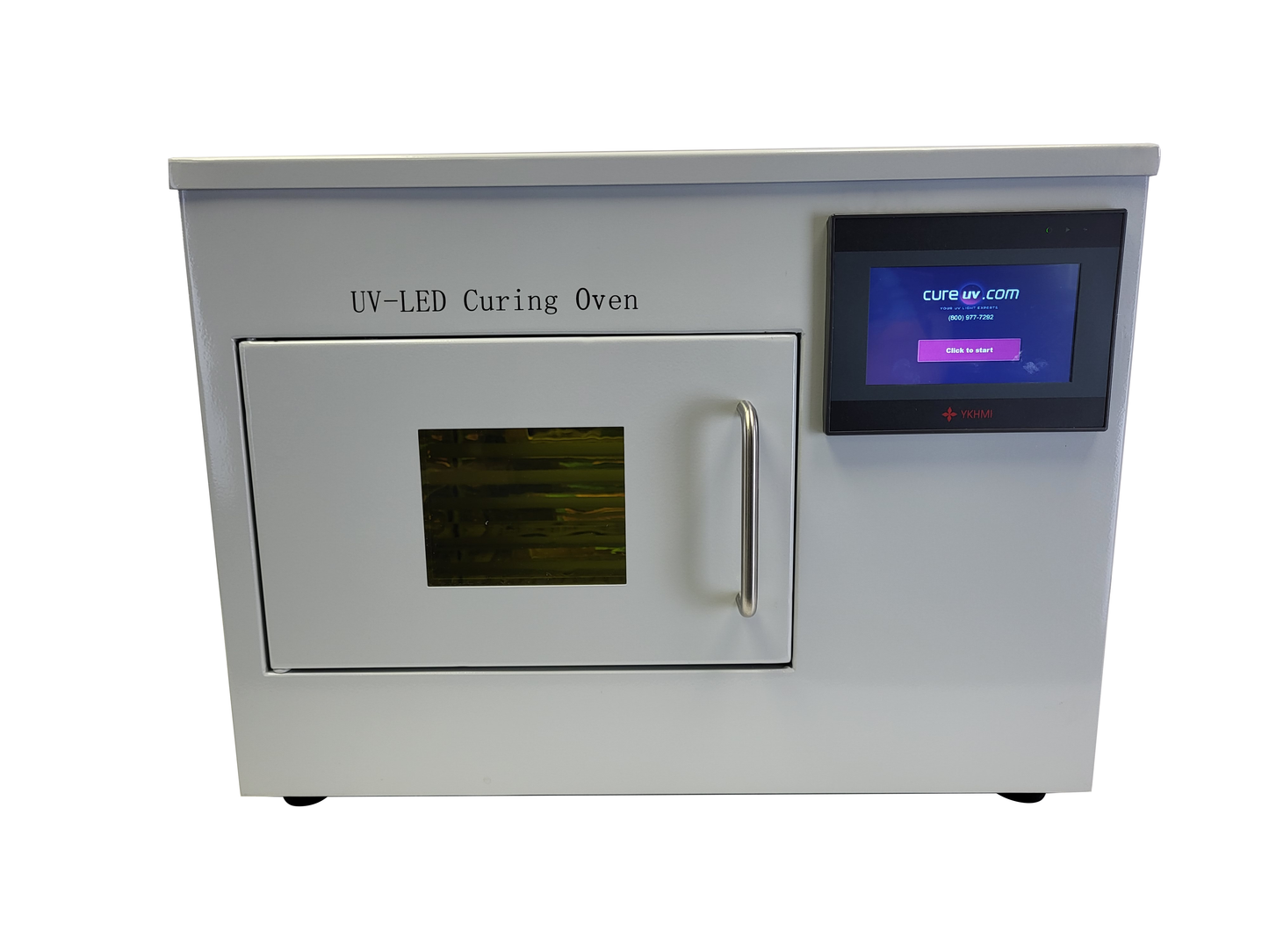

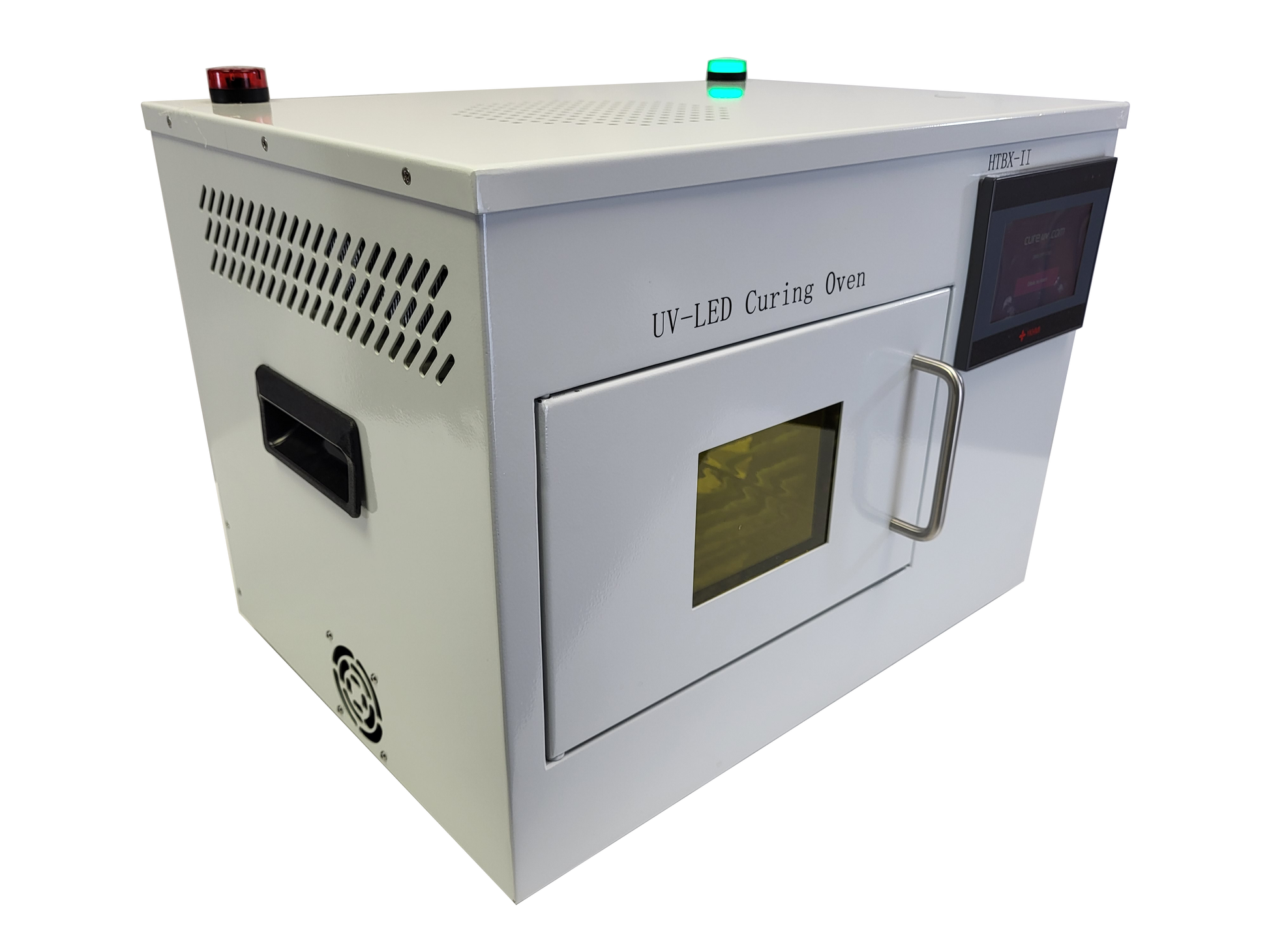

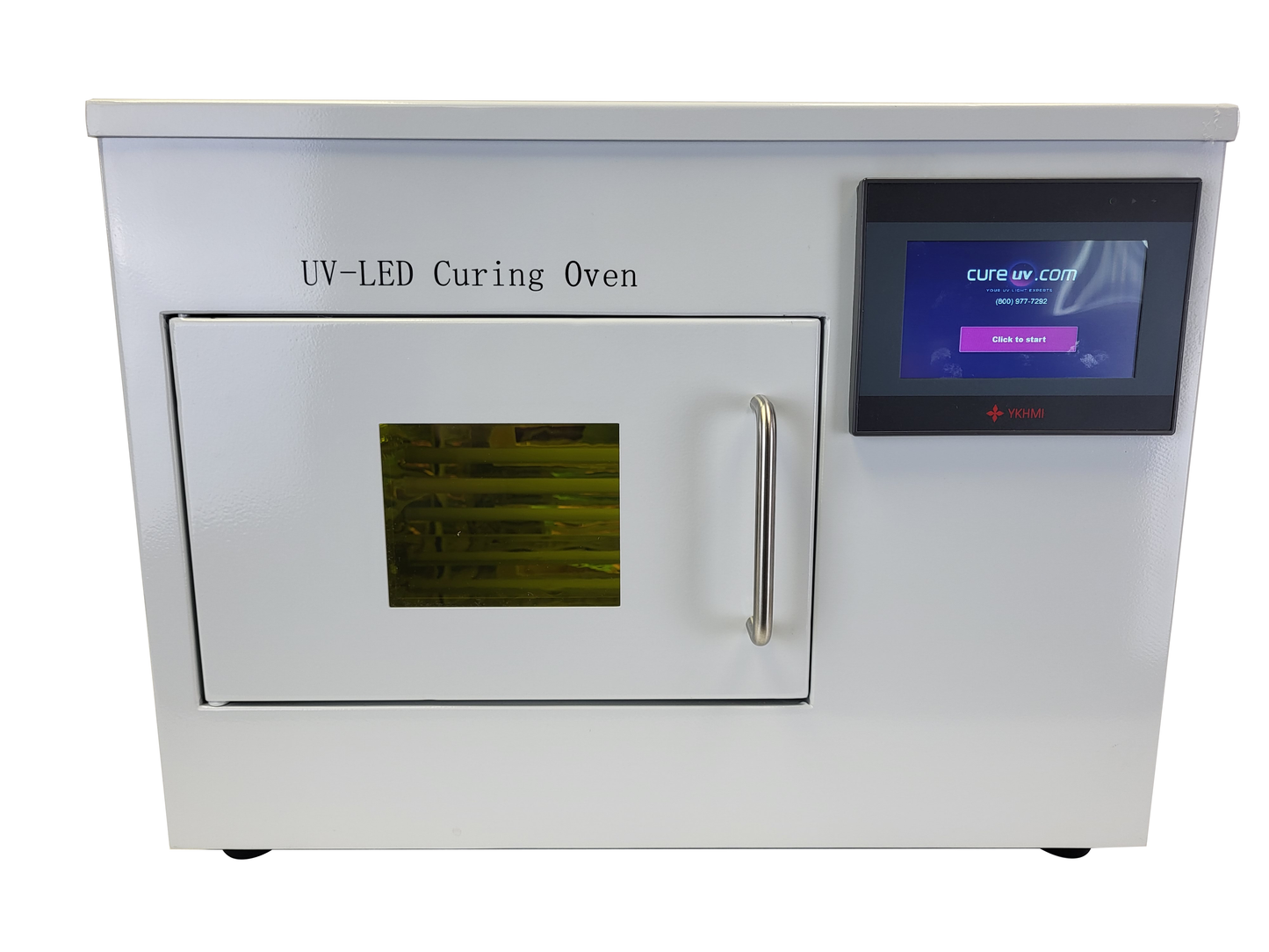

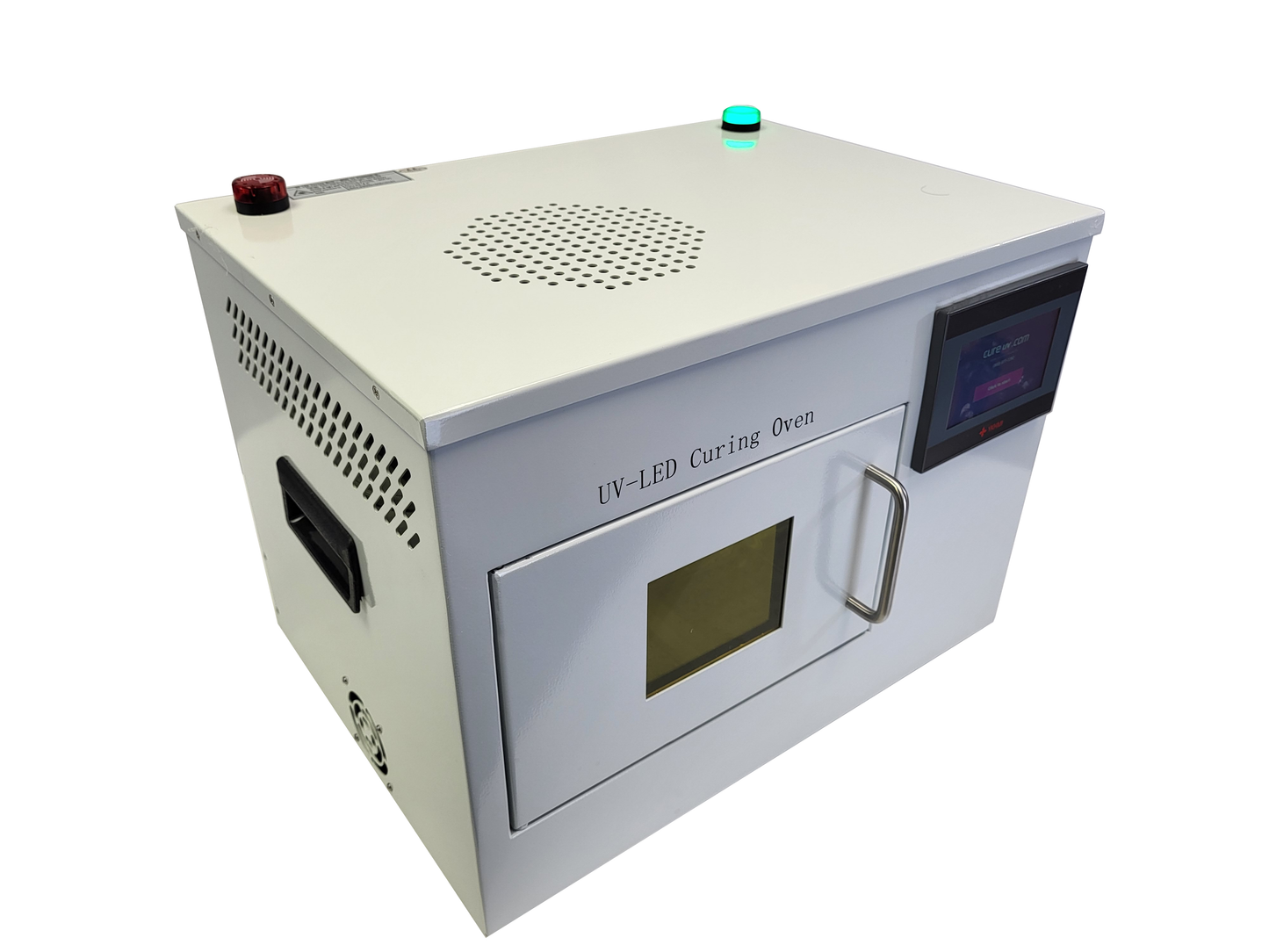

Mid-Powered LED UV Curing Oven (230mm L x 220mm W x 130mm H)

The Mid-Powered LED UV Curing Chamber with a large curing space has a curing area of 220x330mm. Wavelengths available in 365nm, 385nm, 395nm and 405nm rapidly and effectively cure most materials, which range from UV glues, inks, and varnishes to paints. This curing system requires no warm-up time and remains cool, protecting heat-sensitive materials and saving you time and money.

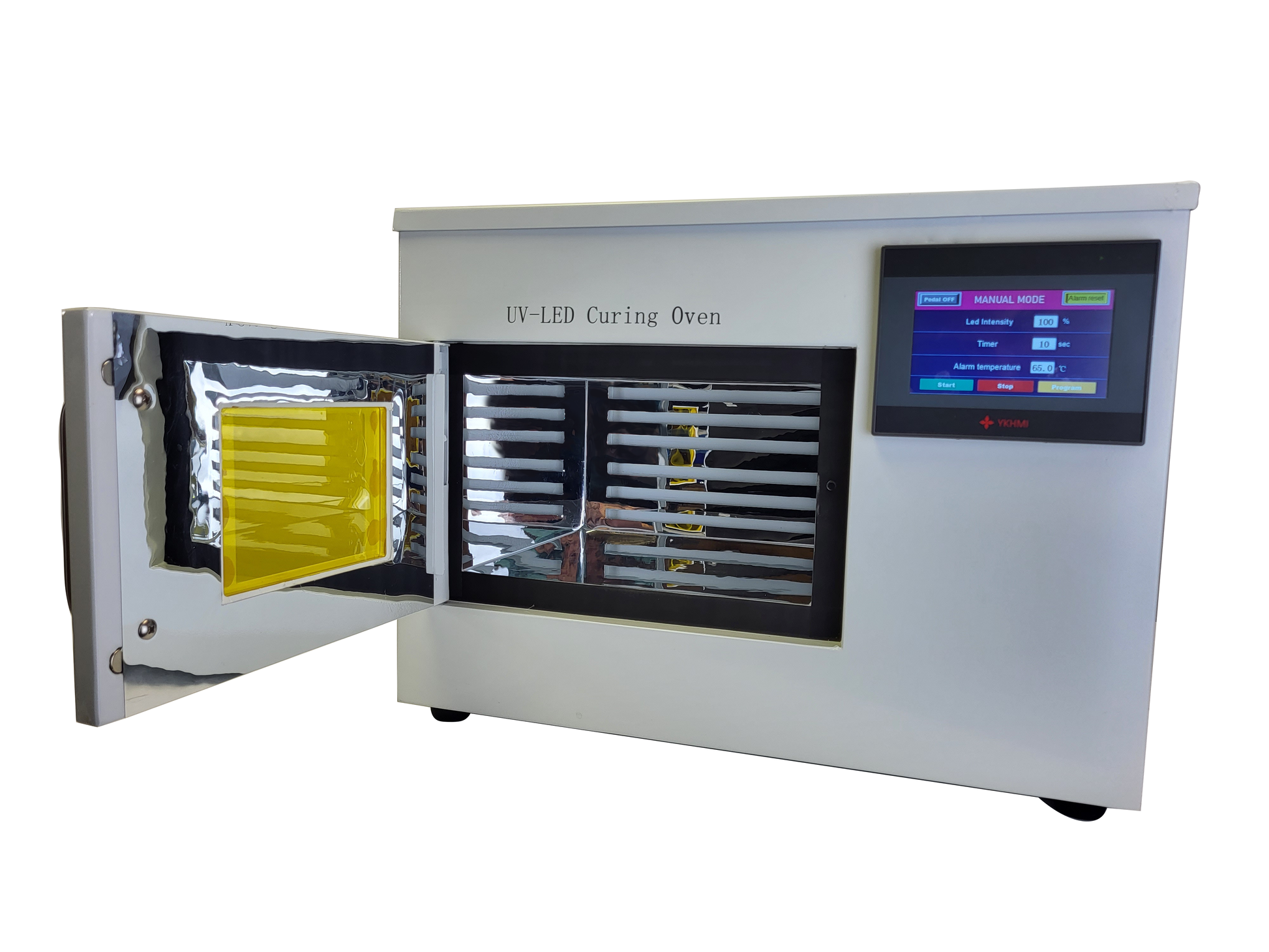

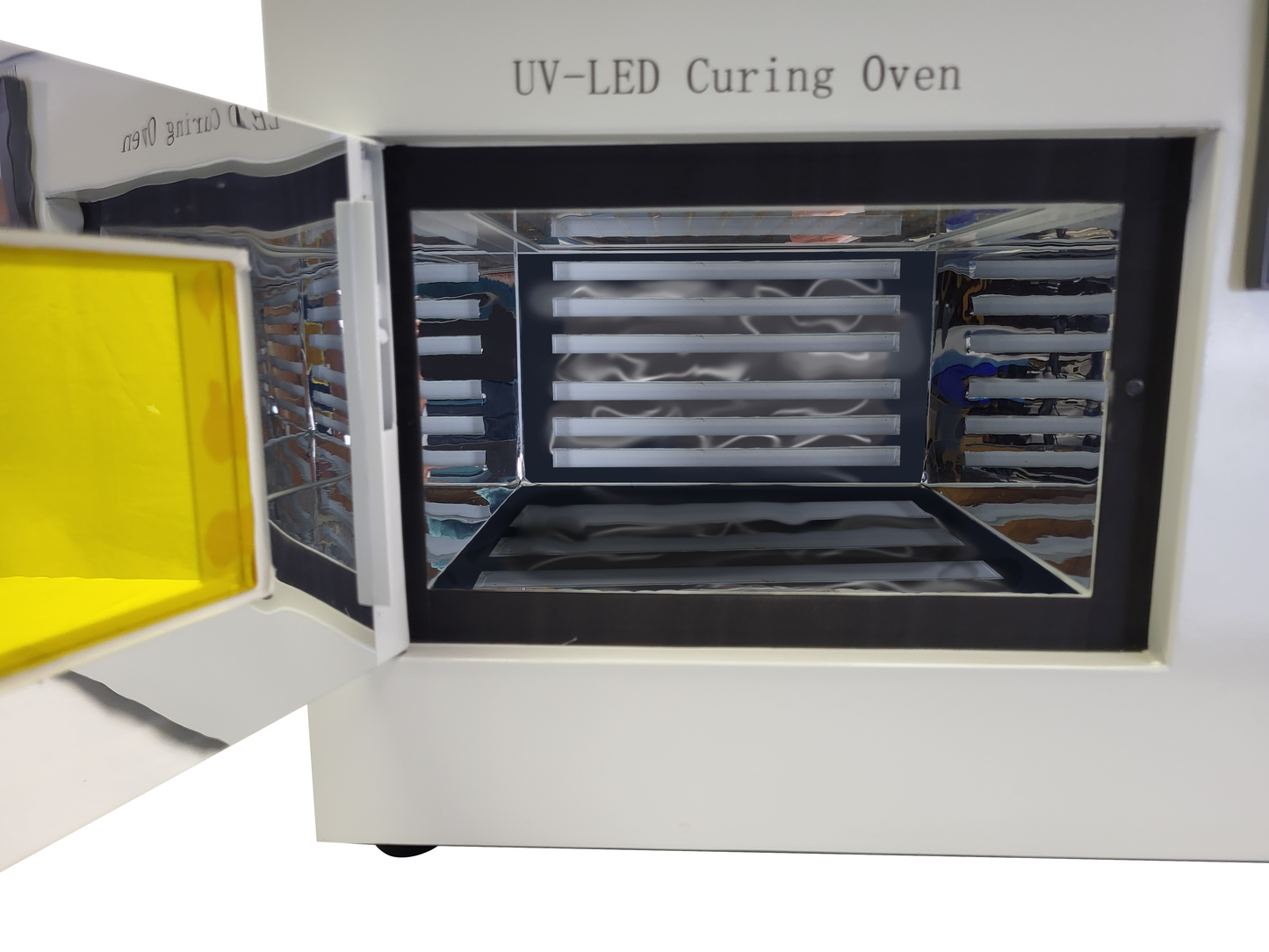

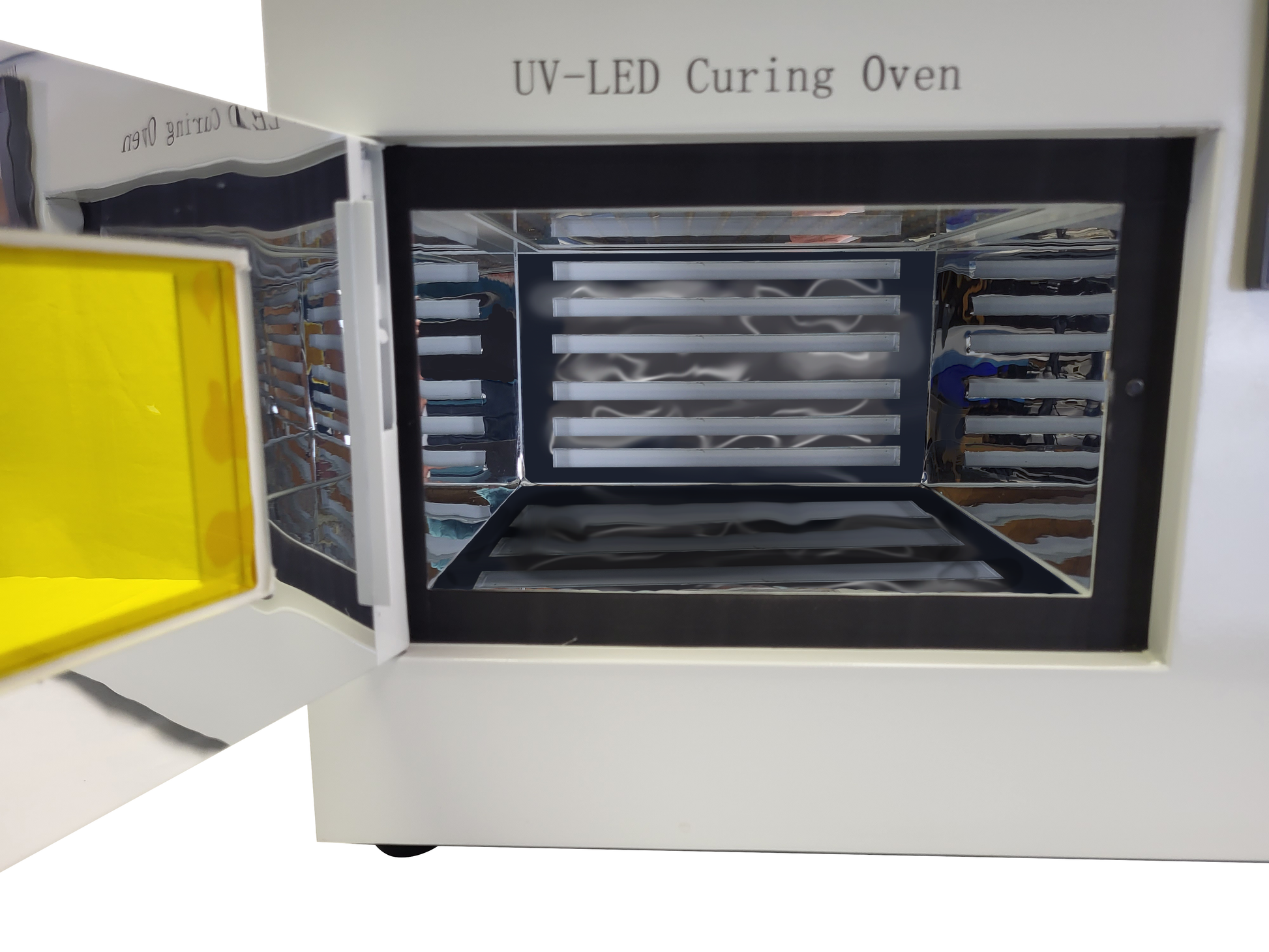

The system consists of an oven, UV LED irradiation head and the corresponding connecting wires. The irradiation head is comprised of high-quality UV LEDs. The available wavelength for this curing system are 365/385/395/405nm and its effective curing area is 220x330mm. The forced air cooling ensures the system works correctly for prolonged periods. Also, this chamber supports external signal input and trigger.

Features:

• Available in 365/385/395/405nm wavelengths are suitable for curing most UV glues, adapting to the job at hand

• Cold light source makes it suitable for any heat-sensitive material
• Ready for immediate use, maximum light intensity can be reached in an instant

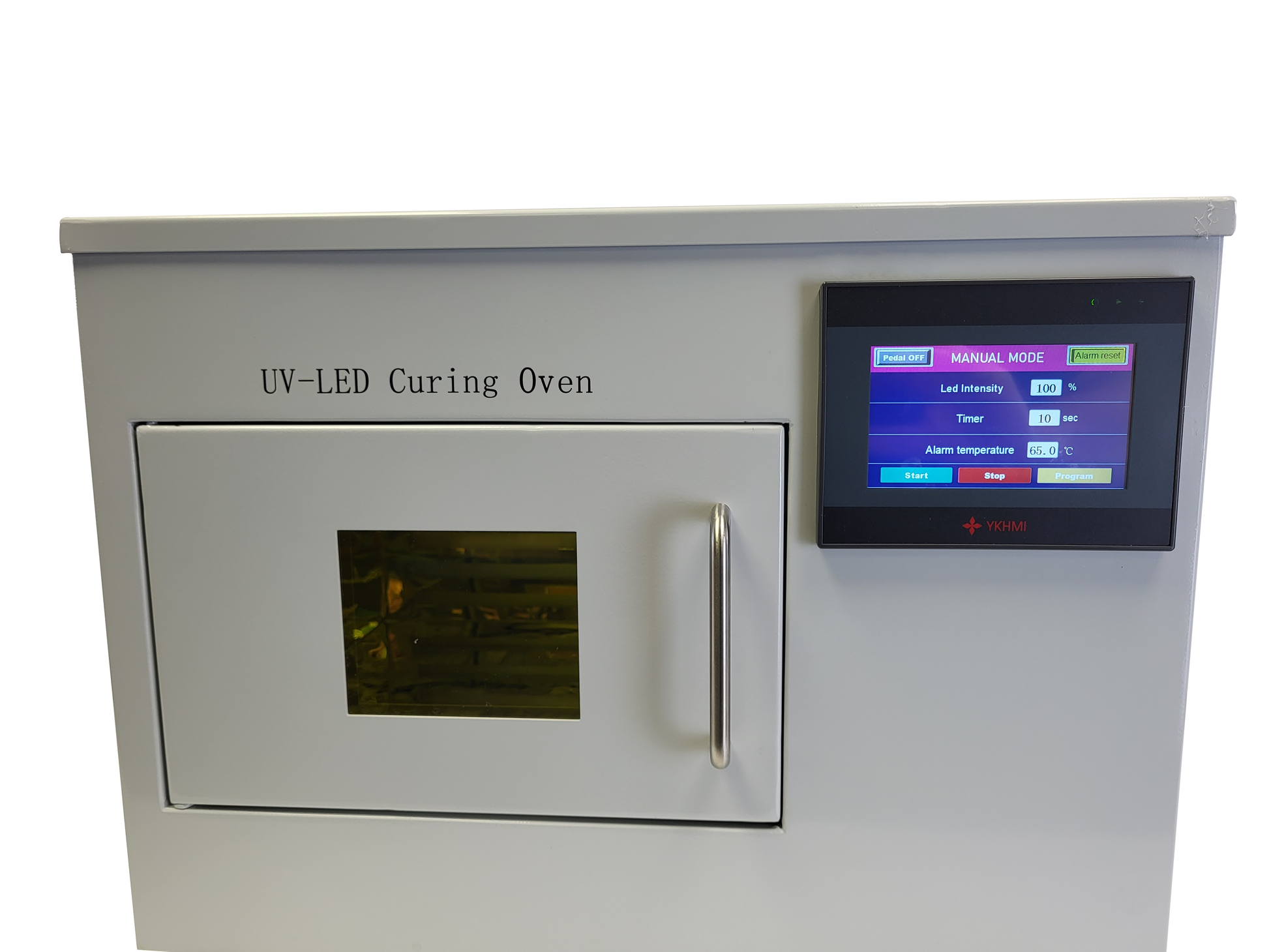

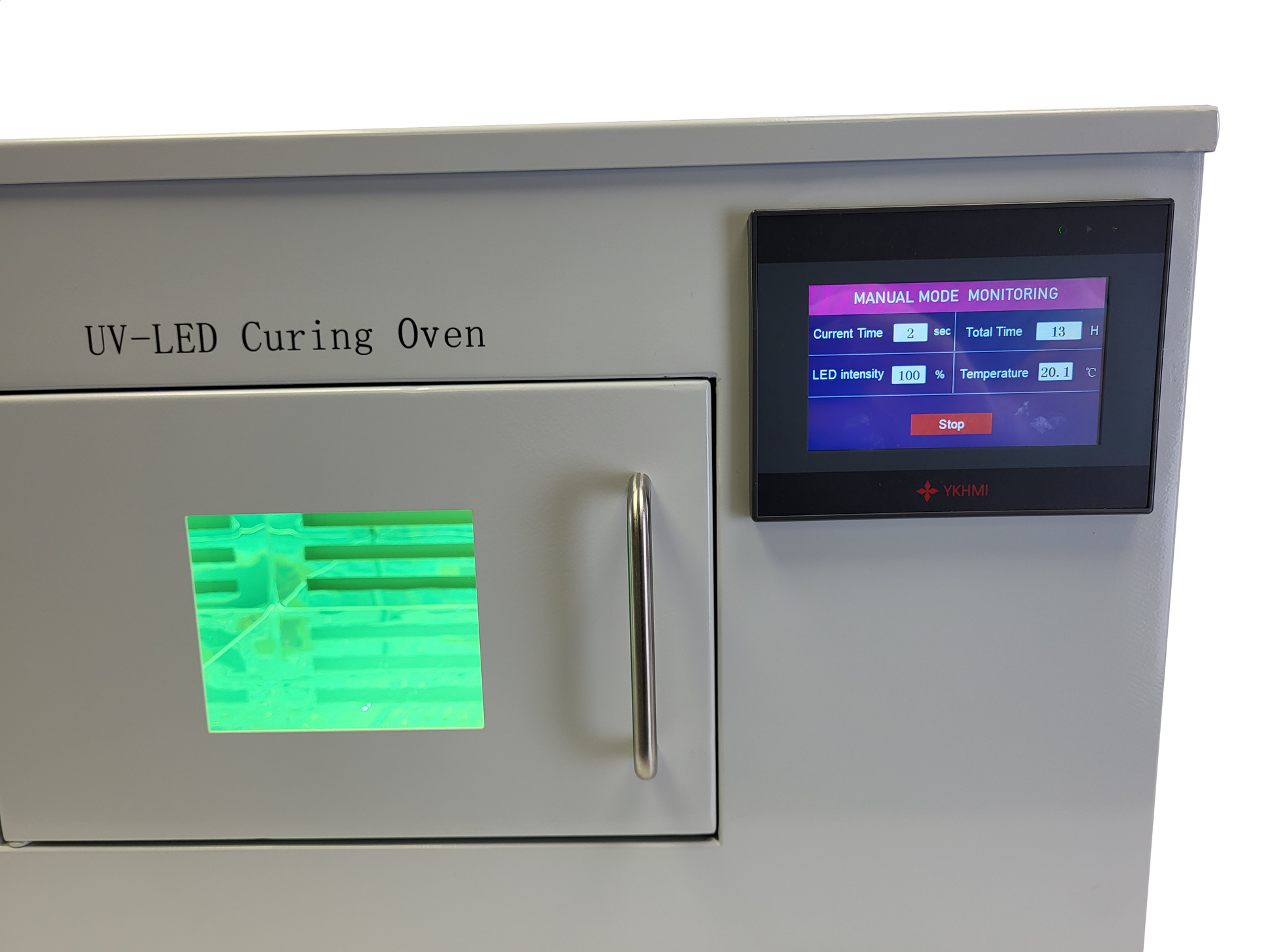

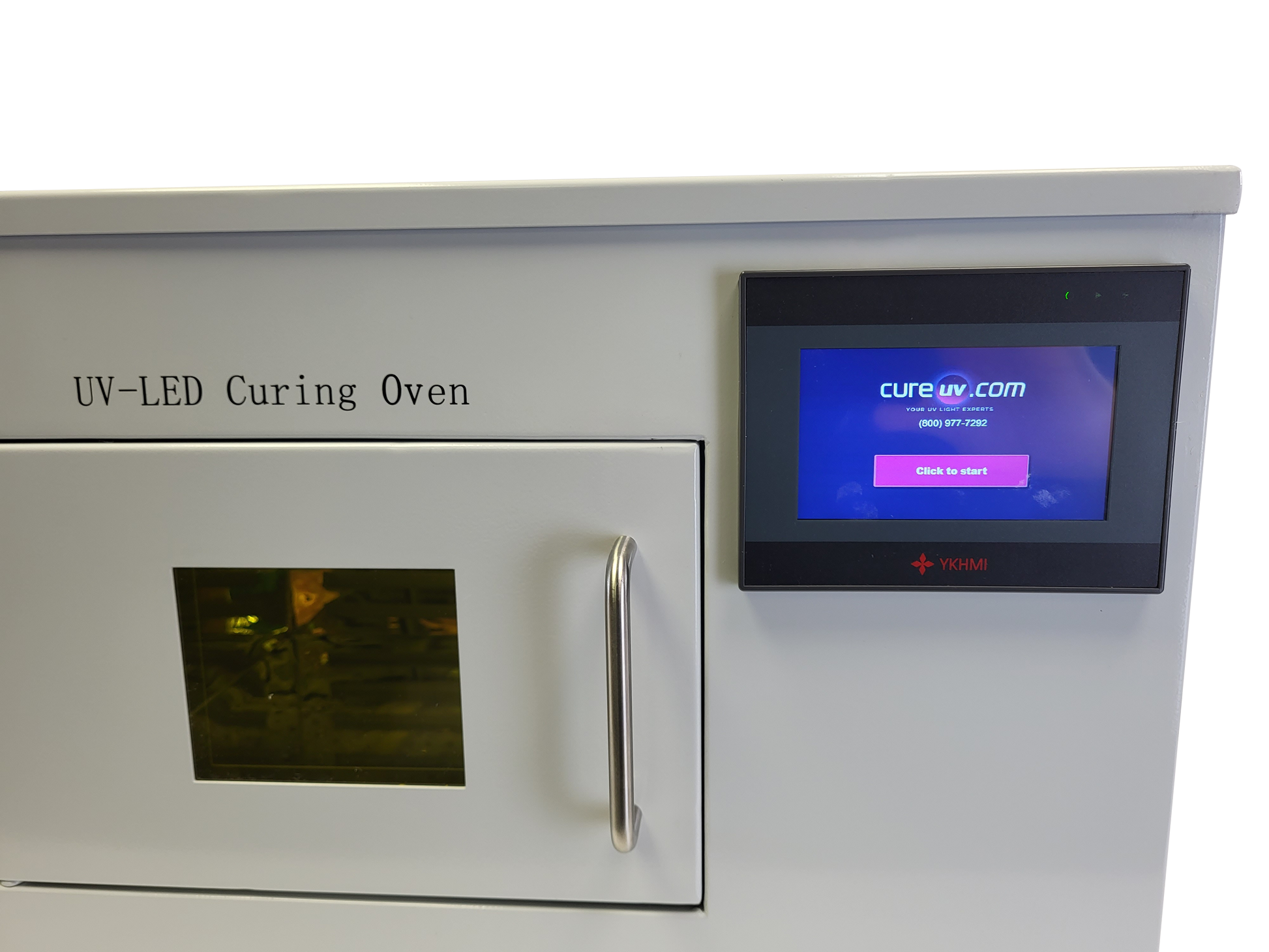

• Easy to control the array with the touch screen on a percent-by-percent basis
• Passcode lock for the settings screen allows you to control your processes as needed

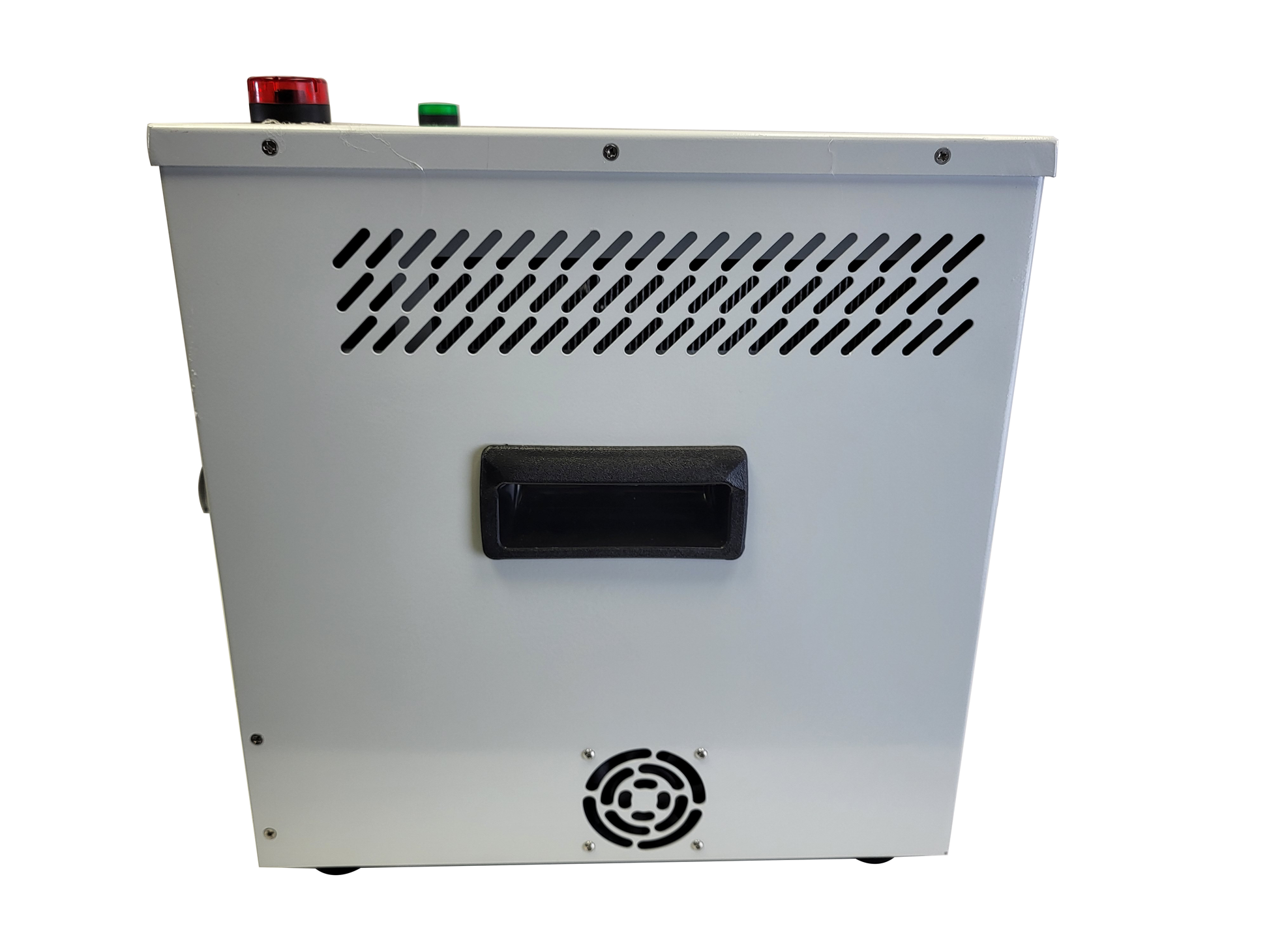

• Forced air cooling ensures the system correctly works for prolonged periods

• Mercury-free and ozone-free.
• I/O to interface with other systems.
• Pedal included for foot control.
• 20,000-hour LED arrays save you time and money that you would spend on replacing UV bulbs with conventional systems.
• 9.999-second timer

Specifications:

365nm

• Wavelength: 365nm
• Electric Power: 588W
• Optic Power: 800mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

385nm

• Wavelength: 385nm
• Electric Power: 588W
• Optic Power: 900mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

395nm

• Wavelength: 395nm
• Electric Power: 588W
• Optic Power: 1500mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

405nm

• Wavelength: 405nm
• Electric Power: 588W
• Optic Power: 1500mW/cm²
• Curing Area: 220x230mm
• Cooling Method: Fan cooling
• Input voltage:  110VAC 60Hz

User Manual:

Technical Data Sheet:

Technical Drawing:

Product Video:

*The video below doesn't correspond exactly to this product, but rather to a similar one to demonstrate its functionality

If you require higher irradiation, please let us know so that we can offer you our water cooling systems, or if you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
