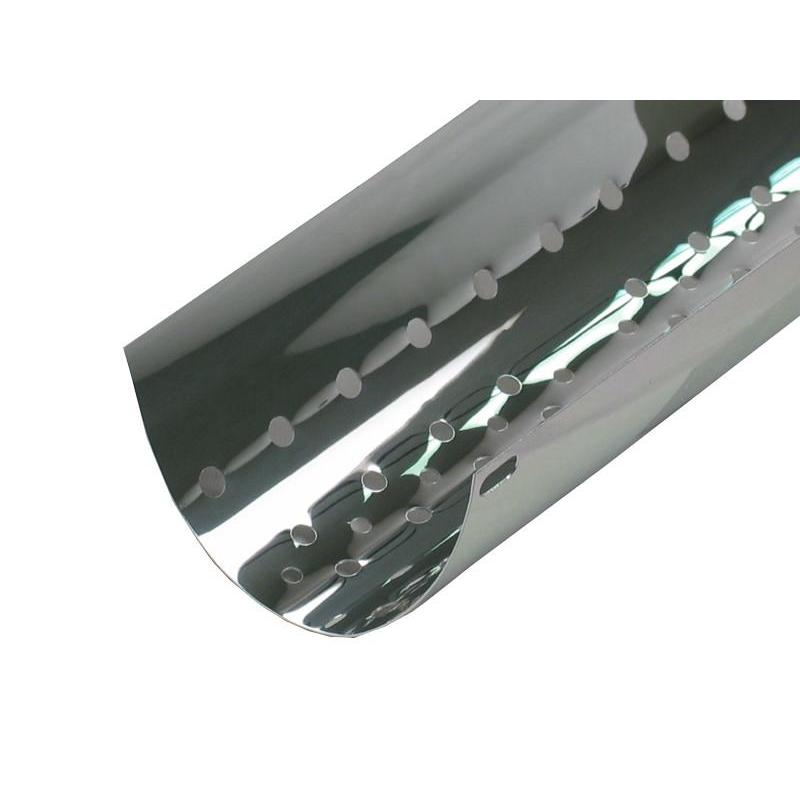

MetalBox Part # MB426 UV Curing Reflector Liner - 50mm Focal Point

Guaranteed 100% Ultraviolet (UV) Reflector Compatible for MetalBox MB426 UV Lamp Bulb - 50mm Focal Point

Metalbox Part # MB426 UV Curing Reflector Liner - 50mm Focal Point

The Metalbox Part # MB426 UV Curing Reflector Liner - 50mm Focal Point is a UV replacement reflector that exceeds OEM standards of UV curing bulb performance. The replacement reflectors or liners are compatible to the Metalbox UV systems and works well for the following part numbers:

• 689514
• MB 426

The liners main purpose is to reflect UV curable energy. The liner enables higher UV wavelength to pass through it. The reflectors help in reflecting visible light and in allowing infrared radiation to pass. The illuminated object is heated less as the infrared radiation of the light beam is reduced.

UV reflectors are very important in a UV system and are responsible for the reflection of over 55% of the UV energy source. Therefore it is very important to maintain and clean the UV reflectors in a UV system periodically.

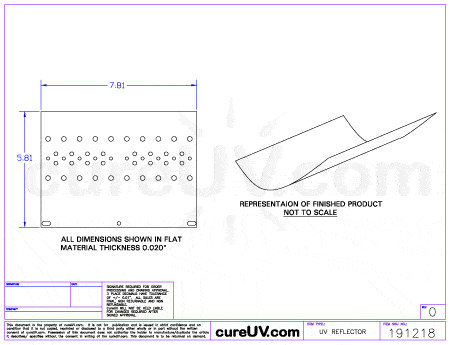

UV Reflector - 50mm Focal Point - MetalBox UV System (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
