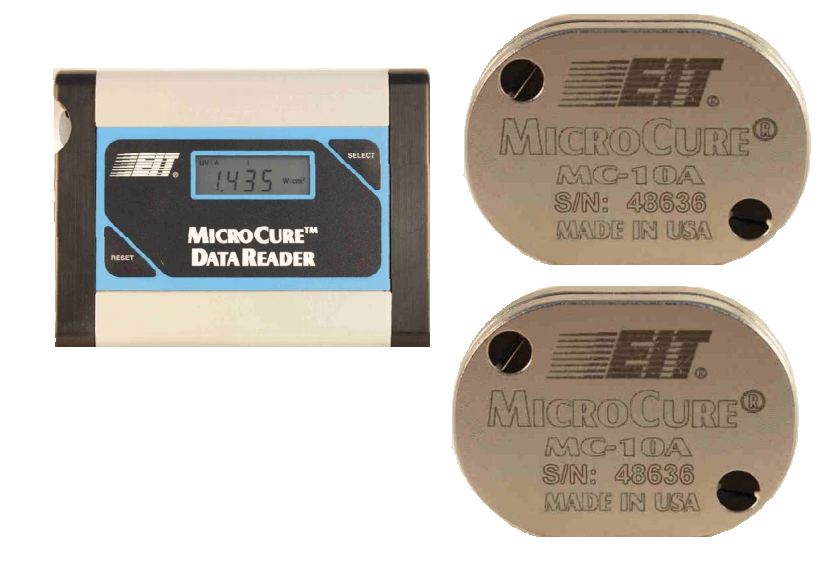

MicroCure Radiometer with Data Reader

The MicroCure System is the smallest heavy duty radiometer in the market at 1.3" L and .95" W. It has an effective sample rate of 2048 samples per second and measures peak irradiance (W/cm²) and energy density (J/cm²). This system consists of a Data Reader (reusable indefinitely) and a radiometer (good for 200 readings).

The MicroCure's miniature size of 1.3" L x 0.95" W x 0.25" T makes it ideal for small curing applications. This great radiometer is good for 200 readings or one year, whichever comes first. You also get the DataReader, which is a display used to show peak irradiance (W/cm²) and energy density (J/cm²) collected by the MicroCure.

This system provides accurate and repeatable measurements for applications that cannot be accessed by the "puck" sized radiometers.

*This listing is for the pack of 1 or 2 MicroCure Units and 1 DataReader.
For replacement parts click below:

• MicroCure - Replacement Part 1 Unit
• DataReader - Replacement Display Unit for MicroCure

How does the MicroCure calculate results?

Possible Applications:

• Small container curing
• Narrow conveyor belt such as credit card processing
• Small printing
• Batch applications like small part bonders
• Flexible light guide systems where the MicroCure can fit in with the part
• Disc Manufacturing
• Dimensional fixtures for curing medical products such as catheters

Features:

MicroCure (1 or 2 included depending on selection by add to cart button):

• Size 1.3" L x 0.95" W x 0.25" T
• Sampling rate: 2048 samples per second
• Good for 200 readings
• Lightweight: 0.33 ounces (9.4 grams)
• Available in UVA (10W, 2W, or 200mW)
• Enters 'sleep-mode' if not exposed to UV within four minutes

 DataReader:

• Portable display for MicroCure
• Toggle between energy density and irradiance
• Shows UV band
• Displays  number of readings
• Changeable 9V battery
• Display low battery symbol
• Auto shut-off

Suggested Operating ranges:

Specification Sheet:

 Downloads:
