Miltec Part # M36005D-1 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 42 Inch Arc Length - 48.88 Inch Total Length (end to end)

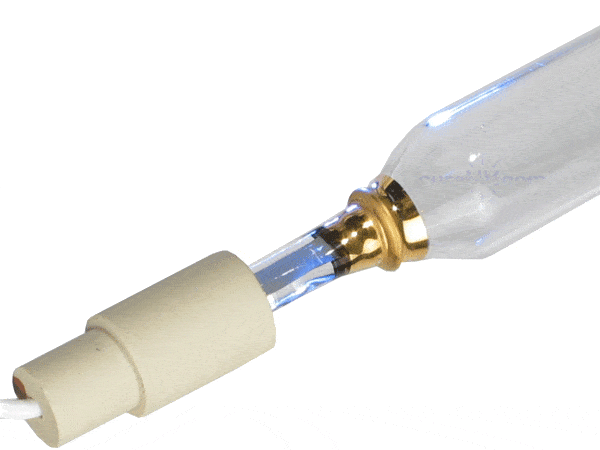

The Miltec Part # M36005D-1 UV Curing Lamp Bulb is a 400 WPI mercury filled lamp bulb that has an overall length of 48.88 inches and an arc length of 42 inches. The UV lamp bulb is 100% compatible to the Miltec UV systems and works well for the following part numbers:

• M650365
• M36005D-1

The UV lamp work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

• Output Power: 400 WPI
• Fill: Mercury
• Quartz: Standard

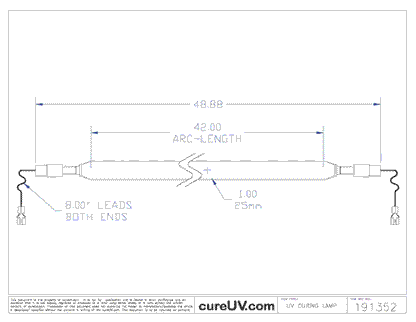

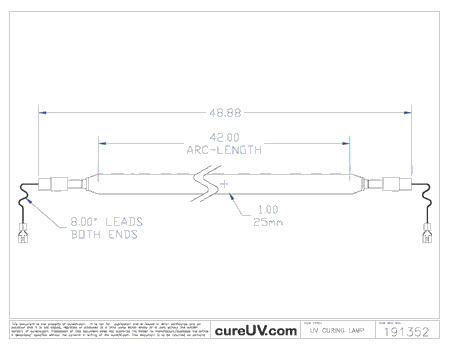

• Arc Length: 42 Inches
• Overall Length: 48.88 Inches

UV Spectral Output of a Mercury UV Lamp (PDF)

42In. Arc UV Lamp 400 WPI - Miltec UV System - Pt # M36005D-1 (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
