Neptune TRI-12 Replacement UVC Light Bulb

4 Pin on a Single End - 33 Watt Germicidal Water Treatment Bulb

The Neptune TRI-12 Replacement UVC Light Bulb is a 33 Watt germicidal water treatment bulb that has four pin on a single end. With a total length of 29.09" and an arc length of 25.79", this light bulb is an efficient one at destroying pathogens present in water. The UVC bulb is compatible with the following system models:

• TRI-12
• Triton-12

The light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers and sanitizers. The lamp is thoroughly tested and must be replaced annually for better efficiency. The UV lamp has a length of 14.06 inches and has a peak output of 253.7 nm. The energy reacts photo-chemically with the genetics of the microorganism and prevents them from reproducing. Studies are of the opinion that the UV water purification has the ability to destroy 99.9% waterborne microorganisms. This process of sterilizing water is a purely physical process and does not alter the pH, taste or chemistry of water. This system protects you from containments such as yeast, cyst, virus, bacteria and protozoa.

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specifications:

• Total Length: 29.09 inches (739mm)
• Arc Length: 25.79 inches (655mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 92V
• Lamp Wattage: 33 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

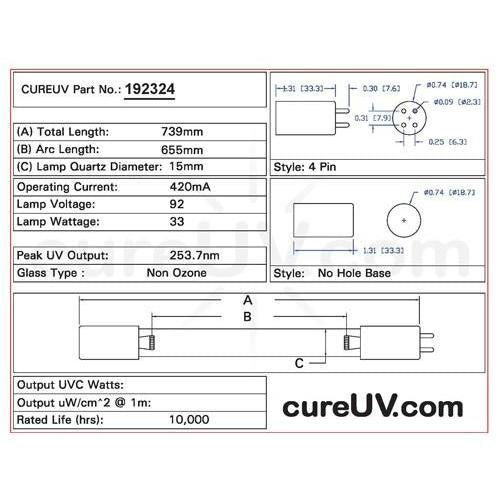

Drawing of Replacement UVC Bulb Item # 192324 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Neptune brand UVC bulbs. All Neptune brand names, trademarks, and logos are property of Neptune.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
