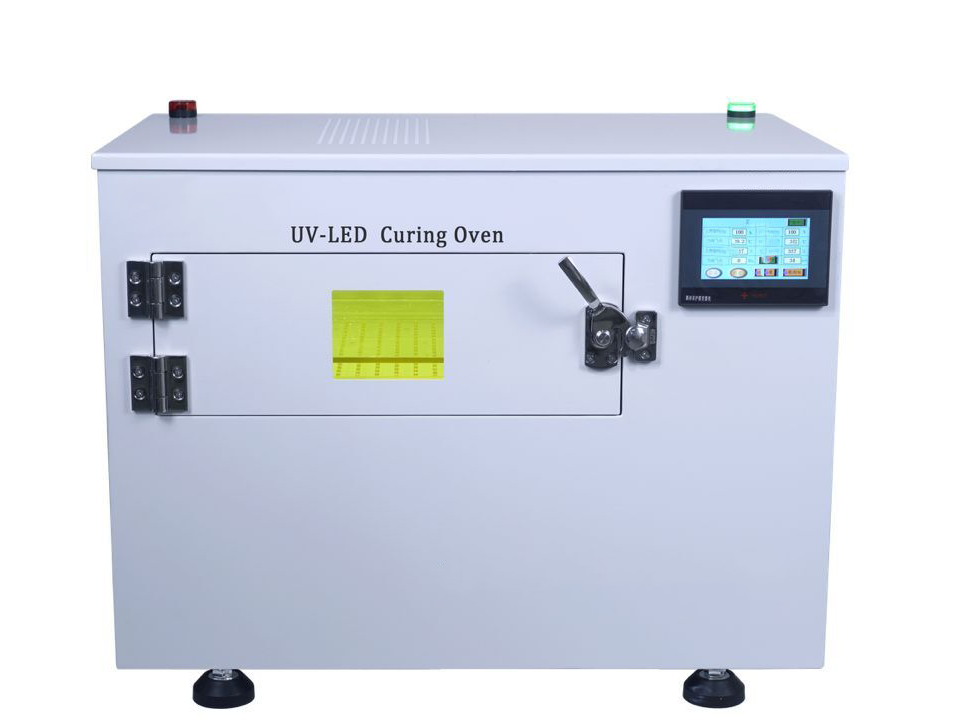

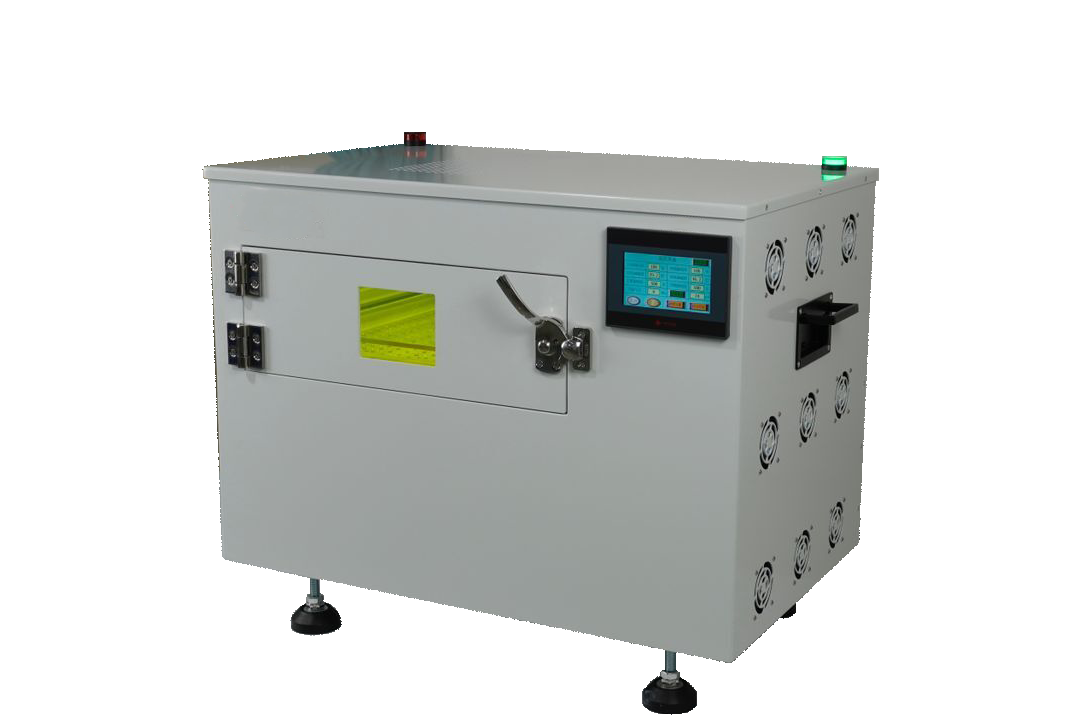

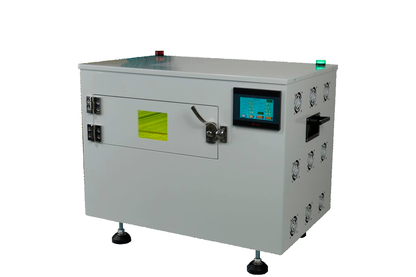

Nitrogen Purgeable UV LED Chamber

The Large UV LED Chamber with Nitrogen Purgeable and a curing area of 300x300mm or 400x400mm. Wavelength available in 365nm or 405nm to rapidly and effectively cure most materials, which might vary between UV glues, UV inks, UV varnishes, UV paints, and others. This curing system requires no warm-up time and remains cool, protecting heat-sensitive materials and saving you time and money.

Features:

• Nitrogen Purgeable Inclusion allows you to effectively eradicate the Oxygen from the chamber while sealed for optimal results
• Nitrogen filling time and pressure adjustable, real-time detection of air pressure in the cavity and overpressure protection
• Cold light source makes it suitable for any heat-sensitive material
• Ready for immediate use, maximum light intensity can be reached in an instant
• Easy to control and power-saving
• Forced air cooling ensures the system correctly works for prolonged periods
• Mercury-free and ozone-free

The addition of a Nitro Purgable Feature allows you to effectively and safely retract the oxygen from the chamber, filling it up with mostly nitrogen obtaining better results without exposing workers to high nitrogen exposure thanks to its sealed construction.

Specifications:

300 x 300mm

• Wavelength: 365nm
• Power Consumption: 2.2KW
• Optic power: 0.5W/cm² (10mm irradiation distance)
• Curing area: 300 x 300mm
• Dimensions: L665mm x W427mm x H569mm

• Inner cavity size: L350mm x W355mm x H100mm
• Cooling method: Fan cooling
• Input voltage:  220VAC 60Hz

• Lamp Life: ≥20000H

• Control method: PLC control
• Parameter settings: Touch screen operation
• Other functions: Support nitrogen filling function
• Power adjustment: Digital dimming (1-100%)
• Air pressure: ≤3Kpa
• Net weight: 55KG

Ambient temperature and humidity

• Ambient temperature: -10℃-50℃
• Relative humidity: 25%-80%RH

400 x 400 mm:

• Wavelength: 405nm
• Power Consumption: 2.2KW
• Optic power: 1000 mW/cm2
• Curing area: 400 x 400mm
• Dimensions: L780mm x W680mm x H600mm

• Inner cavity size: L500mm x W500mm x H200mm
• Cooling method: Fan cooling
• Input voltage:  220VAC 60Hz

• Lamp Life: ≥20000H

• Control method: PLC control
• Parameter settings: Touch screen operation
• Other functions: Support nitrogen filling function
• Power adjustment: Digital dimming (1-100%)
• Air pressure: ≤3Kpa
• Net weight: 55KG

Ambient temperature and humidity

• Ambient temperature: -10℃-50℃
• Relative humidity: 25%-80%RH

USER MANUAL

TECHNICAL DRAWING 300 x 300

TECHNICAL DRAWING 400 x 400

If you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
