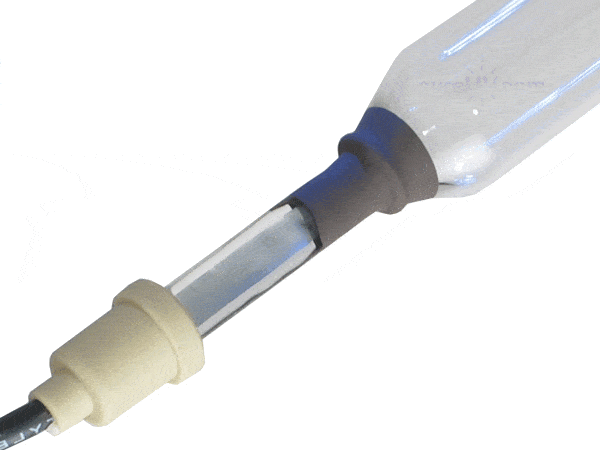

OnLine Energy Part # 01-1018-02 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The Online Energy Part # 01-1018-02 UV Curing Lamp Bulb is an 18 inch lamp bulb that exceeds OEM standards of bulb performance. The 300 WPI lamp bulb is 100% compatible to the Online Energy UV Systems and works well for the following part numbers:

• H18A-3 F1
• 01 1018-02

The use of UV curing systems is predominant in the graphic arts industry, automotive industry and for other industrial applications. Using a UV curing lamp bulb improves durability, enhances the quality of the end products and boost productivity. It also saves energy and reduces drying time with no instances of environmental pollution.

Technical Specifications:

• Output Power: 300 WPI
• Fill: Mercury
• Quartz: Standard
• Arc Length: 18 Inches
• Overall Length: 22.55 Inches
• Tube Diameter: 20mm

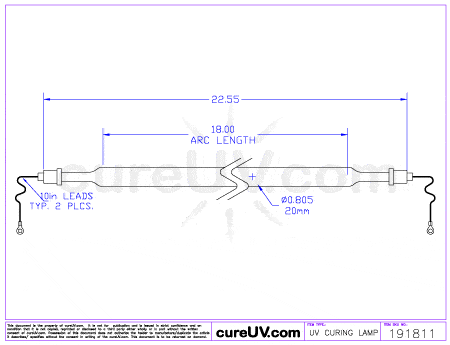

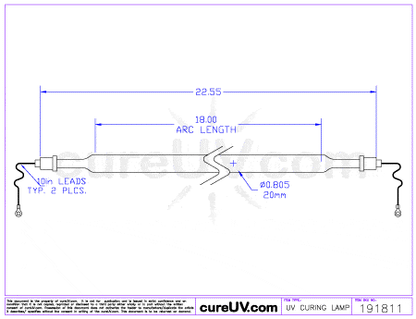

OnLine Energy 18 inch UV lamp (300 WPI) - OEM part number 01101802 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
