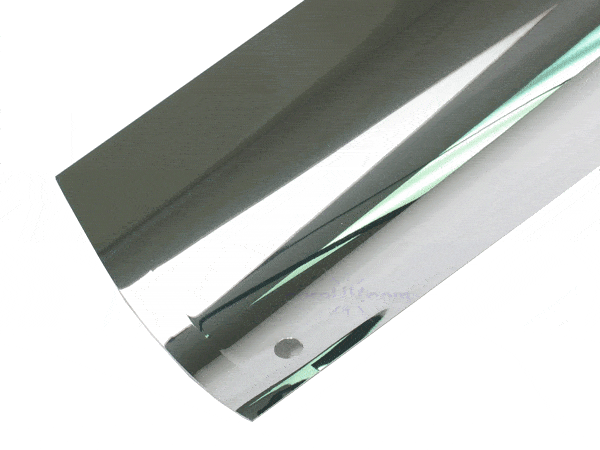

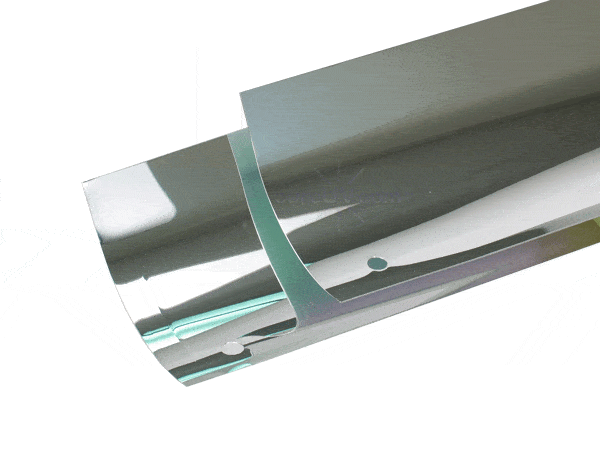

OnLine Energy Part # 01-0024-02 UV Curing Reflector Liner

Guaranteed 100% Ultraviolet (UV) Reflector Compatible for OnLine Energy Part # 01-0024-02 UV Lamp Bulb

The Online Energy Part # 01-0024-02 UV Curing Reflector Liner is a reflector liner that exceeds OEM standards of UV curing performance. The reflector liner is 100% compatible to the Online Energy UV systems and works well for the following part numbers:

• 01002402
• 11001300

The process of UV curing is a method where high-intensity UV rays helps in immediately drying or curing coatings or inks in the printer. The process of UV curing involves light instead of heat. This enables the ink to dry and harden in an instant. UV curing is a better option to traditional curing uses heat as the traditional method uses solvent and contains a risk of environmental pollution. The result of UV curing is higher productivity, lower production costs and better printing quality.

The main function of the reflectors is that it reflects visible light and allows infrared radiation to pass. The illuminated object is heated less as the infrared radiation of the light beam is reduced.

UV reflectors are very important in a UV system and are responsible for the reflection of over 55% of the UV energy source. Therefore it is very important to maintain and clean the UV reflectors in a UV system periodically.

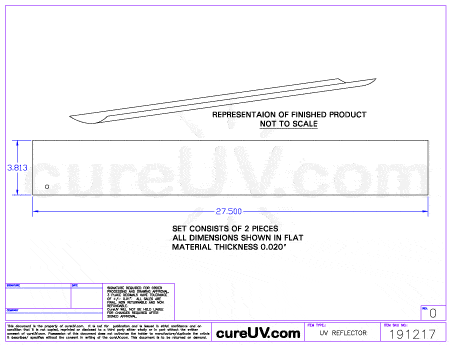

UV Reflector - OnLine Energy UV System - Fits 24" Arc Length UV Lamp Part # 01-0024-02 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
