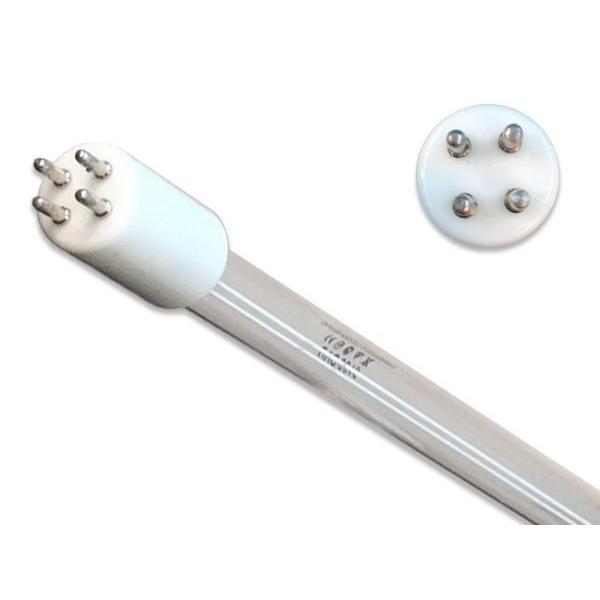

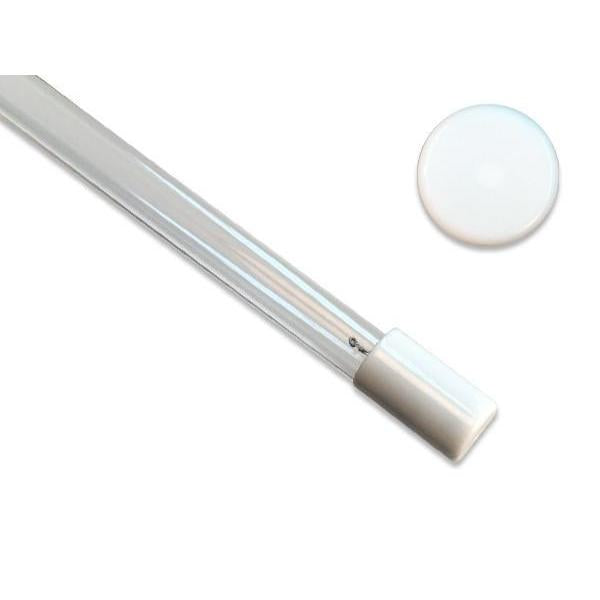

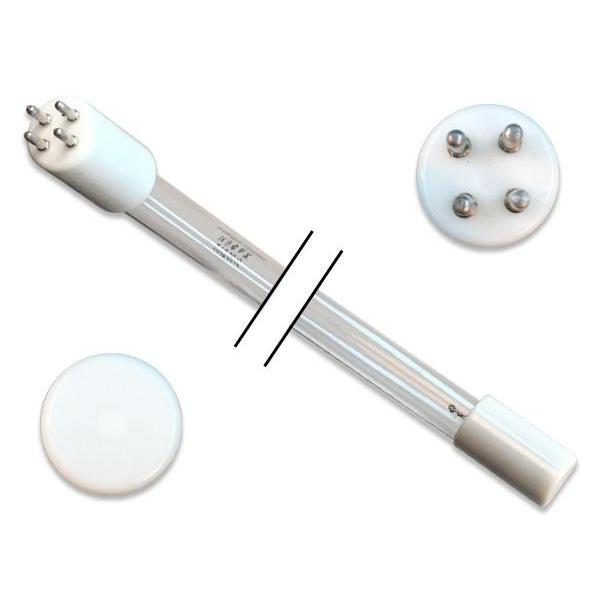

Pentek 163508 Replacement UVC Light Bulb

4 Pin on a Single End - 13 Watt Germicidal Water Treatment Bulb

The Pentek 163508 Replacement UVC Light Bulb is a 13 Watt germicidal water treatment bulb that has four pin on a single end. Measuring 10.83" in total, this UVC light bulb has an arc length of 7.48". The UVC bulb is compatible for use with the following system models and their part numbers:

Pentek Part Number:

• 163508
• 11-275

Pentek System Model:

• UV-110
• UV-110-1
• UV-110-2

The UVC light technology helps in sterilizing and destroying bacteria, molds, virus, and protozoa present in water. When water is passed through the CureUV’s germicidal UV light, it deactivates the genetic material of the microorganism and renders them incapable of multiplying. This high quality fixture has a lifespan of up to 10,000 hours and is set inside non-ozone glass. The UVC light bulb comes with 12 months sterilizing property after which it must be replaced for maximum effectiveness. Ensure clean and safe water always with the Pentek 163508 Replacement UVC Light Bulb.

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Technical Specifications:

• Total Length: 10.83 inches (275mm)
• Arc Length: 7.48 inches (190mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 425mA
• Lamp Wattage: 13 Watts
• Output UVC Watts: 4 Watts
• Output uW/cm^2 @ 1m: 40
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

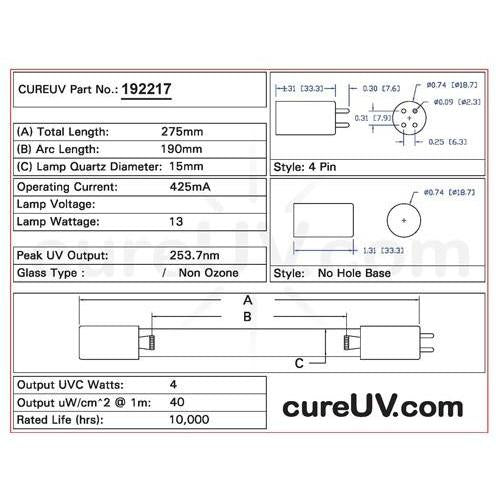

Drawing of Replacement UVC Bulb Item # 192217 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Pentek brand UVC bulbs. All Pentek brand names, trademarks, and logos are property of Pentek.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
