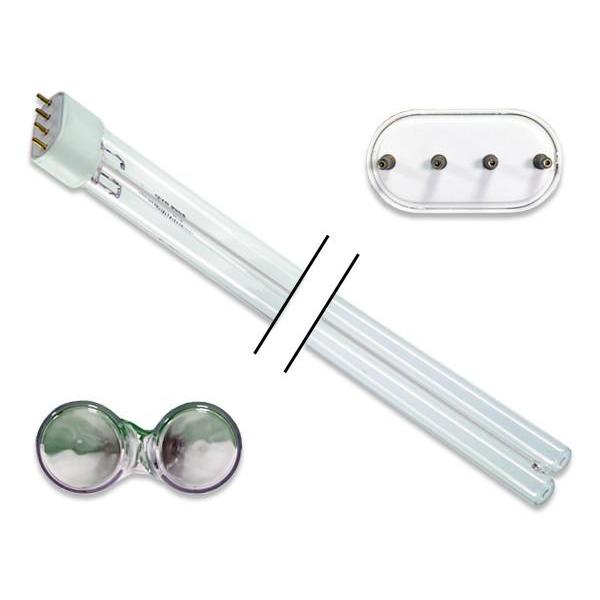

CureUV Brand Replacement for Philips TUV PL-L 55W/4P UVC Light Bulb

4 Pin 2G11 on a Single End - 55 Watt Germicidal Air, Surface & Water Treatment Bulb

The Philips TUV PL-L 55W/4P Compatible Replacement UVC Light Bulb is a guaranteed replacement UV bulb that has wattage of 55 Watts and a lamp length of 21.06". The germicidal UV bulb is made using ceramic as its base material in a non ozone glass type. It has single pin on both ends and has a rated life of 10,000 hours. The UVC light bulb is completely compatible with germicidal OEM Air & Water sterilization filters, UV sanitizers and air/water purifiers. We recommend that you replace the light bulb annually for better functioning of your system. The UVC light bulb has 4 pin 2G11 on a single end and is an effective treatment against bacteria, molds, protozoa and virus present in water. The light bulb emits a short wavelength of 253.7 nm that reacts with the genetics of the microorganisms and renders them incapable of reproduction.

Common Applications:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

Technical Specifications:

• Total Length: 21.06 inches (535mm)
• Arc Length: 19.29 inches (490mm)

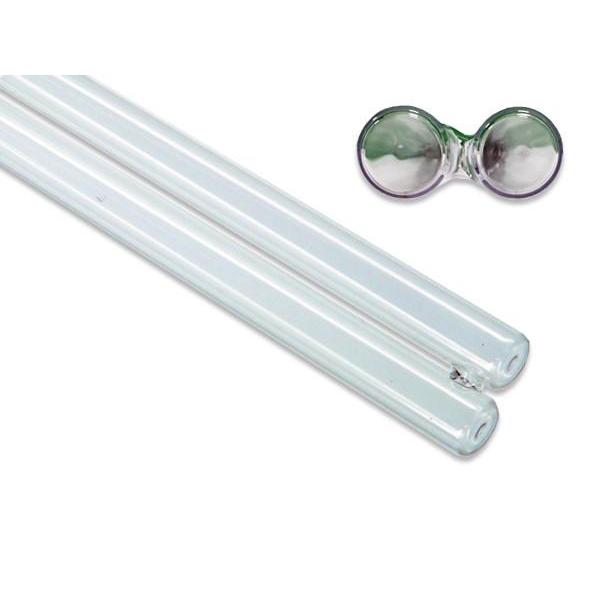

• Lamp Quartz Diameter: 17mm Twin Tube
• Operating Current: 540mA
• Lamp Voltage: 103V
• Lamp Wattage: 55 Watts
• Output UVC Watts: 17 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone

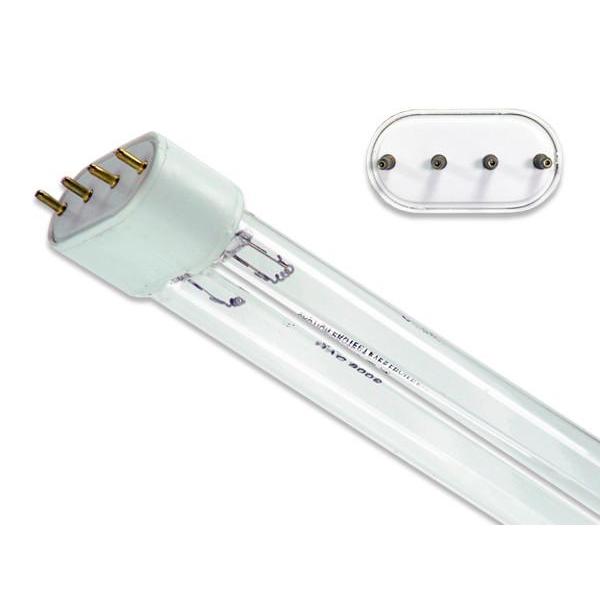

• Base Style: 4 pin 2G11 on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Offices
• Ships

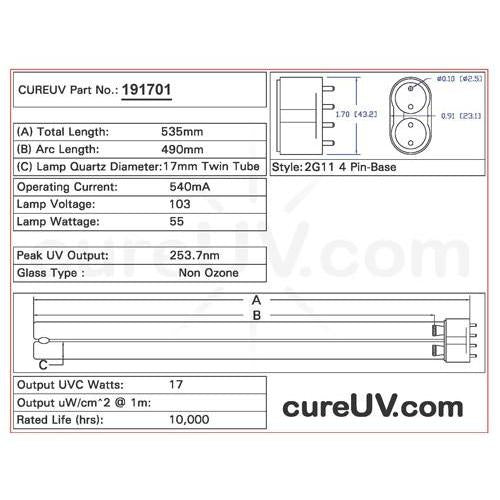

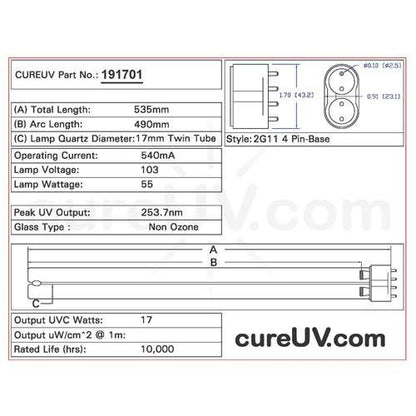

Drawing of Replacement UVC Bulb Item # 191701 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
