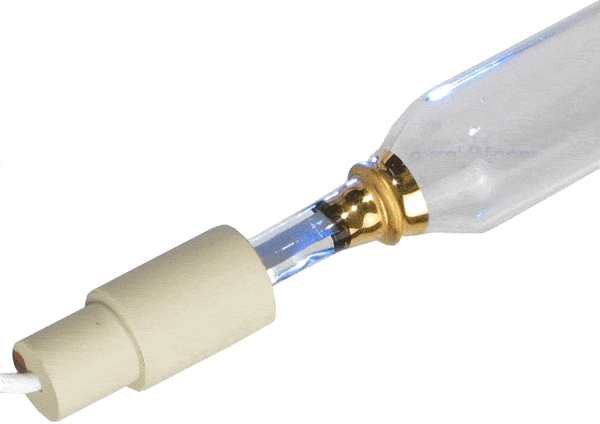

Printing Research Part # H96C32A5C6B UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 32 Inch Arc Length

The Printing Research Part # H96C32A5C6B UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that exceeds OEM standards of bulb performance. the lamp bulb is 100% compatible to the Printing Research UV systems and works well the following part numbers:

• H96C32A5C6B

UV curing is a process where high-intensity UV rays helps in instantly drying or curing coatings or inks in the printer. With the usage of light instead of heat, the ink hardens and dries instantly. Curing inks using UV rays is widely used as an alternative to traditional solvent-based products. Conventional drying methods (the ones that use heat to dry) works only when the solvents are evaporated, which meant that there was always a risk of environmental pollutants. In the UV curing method, however, there no process of evaporation and no pollution created. The result is greater productivity, higher quality printing and lower production costs.

Technical Specifications:

• Type: Mercury
• Arc Length: 32 inches
• Total Length: 38.50 inches
• Tube Diameter: 25.5mm
• Watts Per Inch: 300 WPI

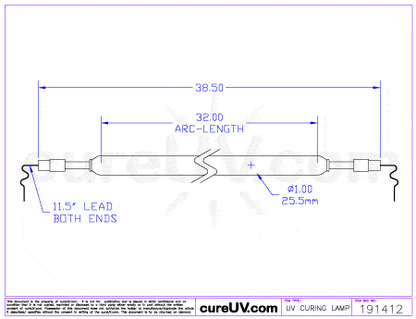

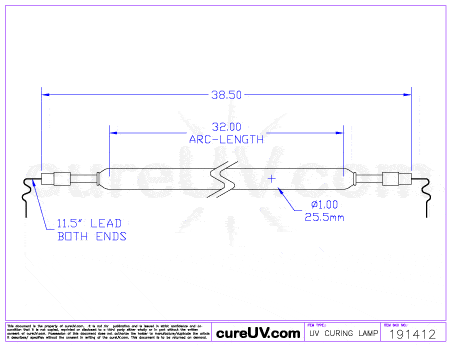

Printing Research 32 inch UV lamp - OEM part number H96C32A5C6B - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
