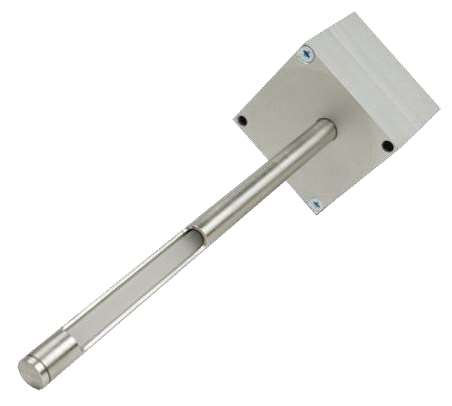

QSO 3 UV Inline Sensor

The QSO 3 UV Inline Sensor is a highly developed solution designed specifically for conducting real-time measurements of UV intensity in medium-pressure lamps or UV LEDs. With its precise engineering and ability to withstand high UV intensity and elevated temperatures, this sensor is the perfect tool for accurate online UV measurement.

QSO 3 UV Inline Sensor is equipped with a relative measuring system that simplifies the calibration process. By setting the measured value to 100% for new lamp, reflector, and associated components, users can ensure accuracy without sacrificing ease of use. This makes it a convenient and reliable option for streamlining the user experience.

Features:

• Durable and reliable tool for accurately measuring UV levels online.
• Signal output is directly proportional.
• Adjustable sensitivity.
• Air purging possible.

Technical Data:

• Spectral ranges

• Spectral measuring ranges:

• Measuring range: 20 to 2000 mW/cm²
• Amplification factors: 1, 10, 100, 1000, and in combination of 0.3
• Output signal: DC 0-10 V (proportional to irradiance), max. 2 mA
• Auxiliary voltage: DC 24 V, max. 5 mA
• Measuring distance to lamp: 0.78 - 3.93 in
• Max permissible intensity:

• Air purging: 1/8¨
• Dimensions:  1.77 x 1.77 x 1.33 in / Stainless steel protection tube: L= 5.51 in, ø 0.31
• Weight: 7.05 oz.
• Temperature range:
