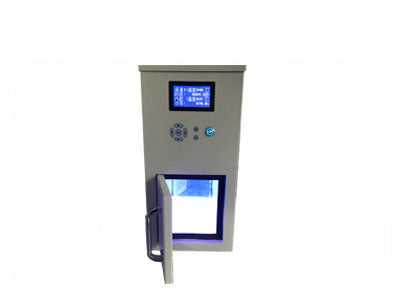

LED UV Curing Oven Box (140mm L x 140mm W x 130mm H)

The Small 140mmx140mm LED UV Curing Oven Box is a curing system available with either 365/385/395/405nm wavelengths, composed of a UV LED Head and oven with a temperature sensor centered in the bottom panel of the oven. Its curing area is 120mmx120mm.

Features:

• Available 365/385/395/405nm wavelengths are suitable for curing most UV glues, adapting to the job at hand
• Cold light source makes it suitable for any heat-sensitive material
• Ready for immediate use, maximum light intensity can be reached in an instant
• Easy to control and power saving
• Forced air cooling ensures the system correctly works for prolonged periods
• Temperature sensor on the bottom of the oven
• Mercury-free and ozone-free

 Applications

• Electronics: Micro speakers, motors, cameras, lenses, displays, PCBA, etc.
• Medical instruments
• Research institutes
• Laboratory

Specifications:

• Wavelength: 365nm*
• Curing Area: 120x120mm
• Optic Power: 200-500mW/cm²
• Curing cavity size:  L140xW140xH130mm
• Dimensions: L200xW315xH435mm
• Input voltage:  120VAC 60Hz

* Current available specifications apply only to the 365nm option

Technical Drawing:

Product Video:

If you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
