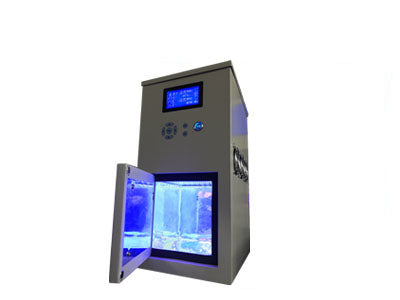

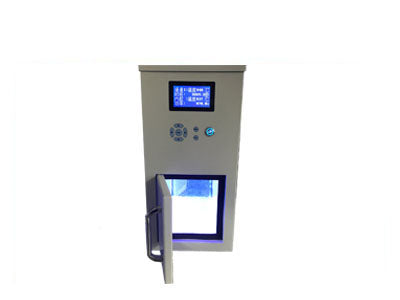

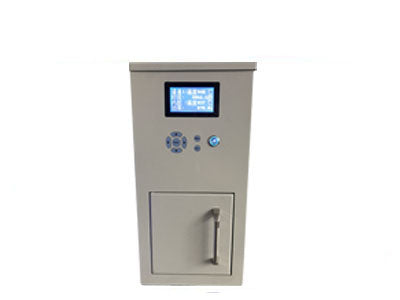

LED UV Curing Oven Box (140mm L x 140mm W x 130mm H)

The Small LED UV Curing Chamber has a curing area of 120mmx120mm. Wavelengths available in 365nm, 385nm, 395nm and 405nm rapidly and effectively cure most materials, which range from UV glues, inks, and varnishes to paints. This curing system requires no warm-up time and remains cool, protecting heat-sensitive materials and saving you time and money.

The system consists of a UV LED Head and oven with a temperature sensor centered in the bottom panel of the oven and the corresponding connecting wires. The irradiation head is comprised of high-quality UV LEDs. The available wavelength for this curing system are 365/385/395/405nm and its effective curing area is 120mmx120mm. The forced air cooling ensures the system correctly works for prolonged periods. Also, this chamber supports external signal input and trigger.

Features:

• Available in 365/385/395/405nm wavelengths are suitable for curing most UV glues, adapting to the job at hand
• Cold light source makes it suitable for any heat-sensitive material
• Ready for immediate use, maximum light intensity can be reached in an instant
• Easy to control and power saving

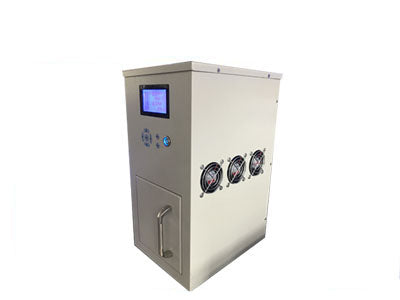

• Forced air cooling ensures the system correctly works for prolonged periods
• Mercury-free and ozone-free
• 9.999-second timer


 Applications

• Electronics: Micro speakers, motors, cameras, lenses, displays, PCBA, etc.
• Medical instruments
• Research institutes
• Laboratory

Specifications:

• Wavelength: 365nm*
• Curing Area: 120x120mm
• Optic Power: 200-500mW/cm²
• Curing cavity size:  L140xW140xH130mm
• Dimensions: L200xW315xH435mm
• Input voltage:  120VAC 60Hz

* Current available specifications apply only to the 365nm option

Technical Drawing:

Product Video:

*The video below doesn't correspond exactly to this product, but rather to a similar one to demonstrate its functionality

If you require higher irradiation, please let us know so that we can offer you our water cooling systems, or if you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
