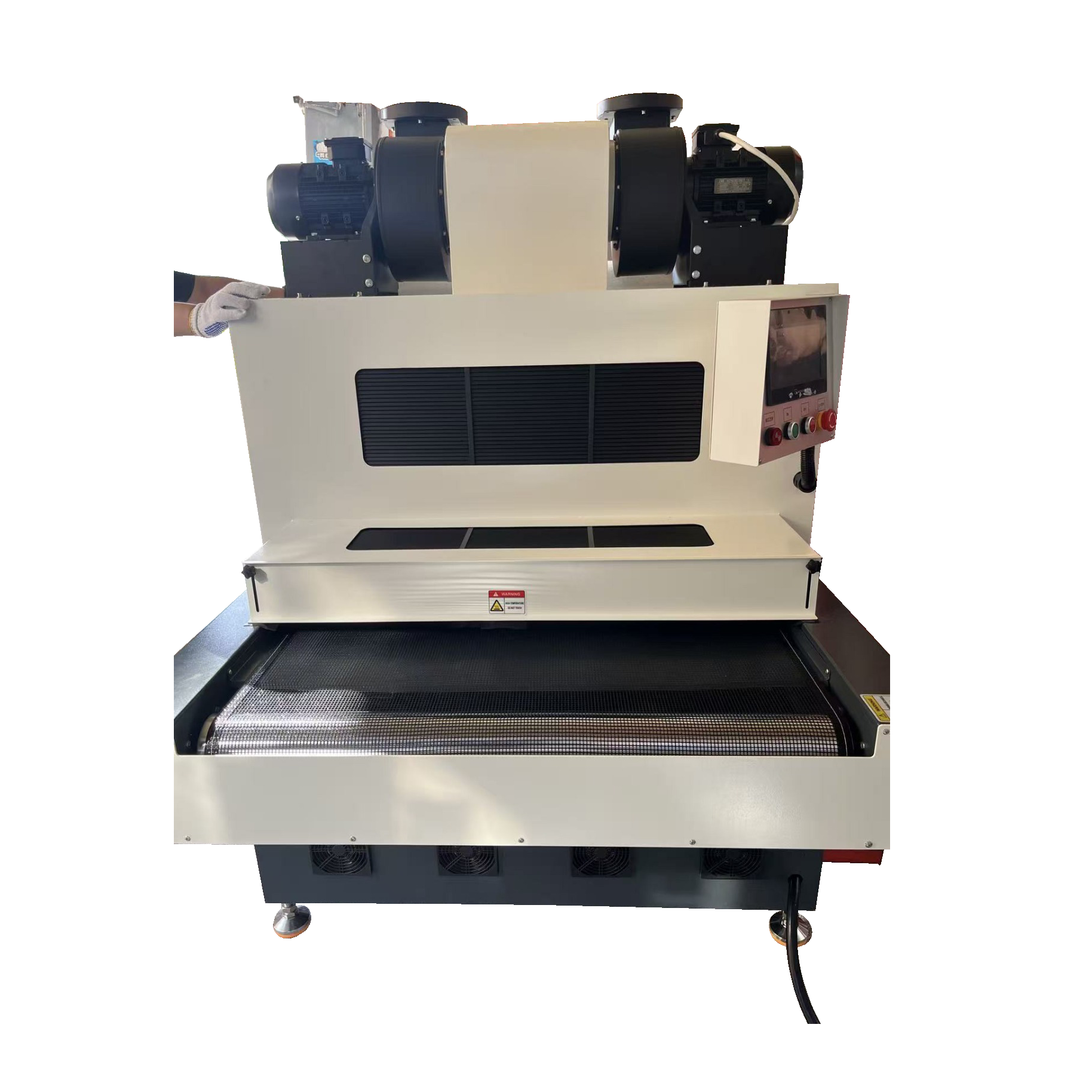

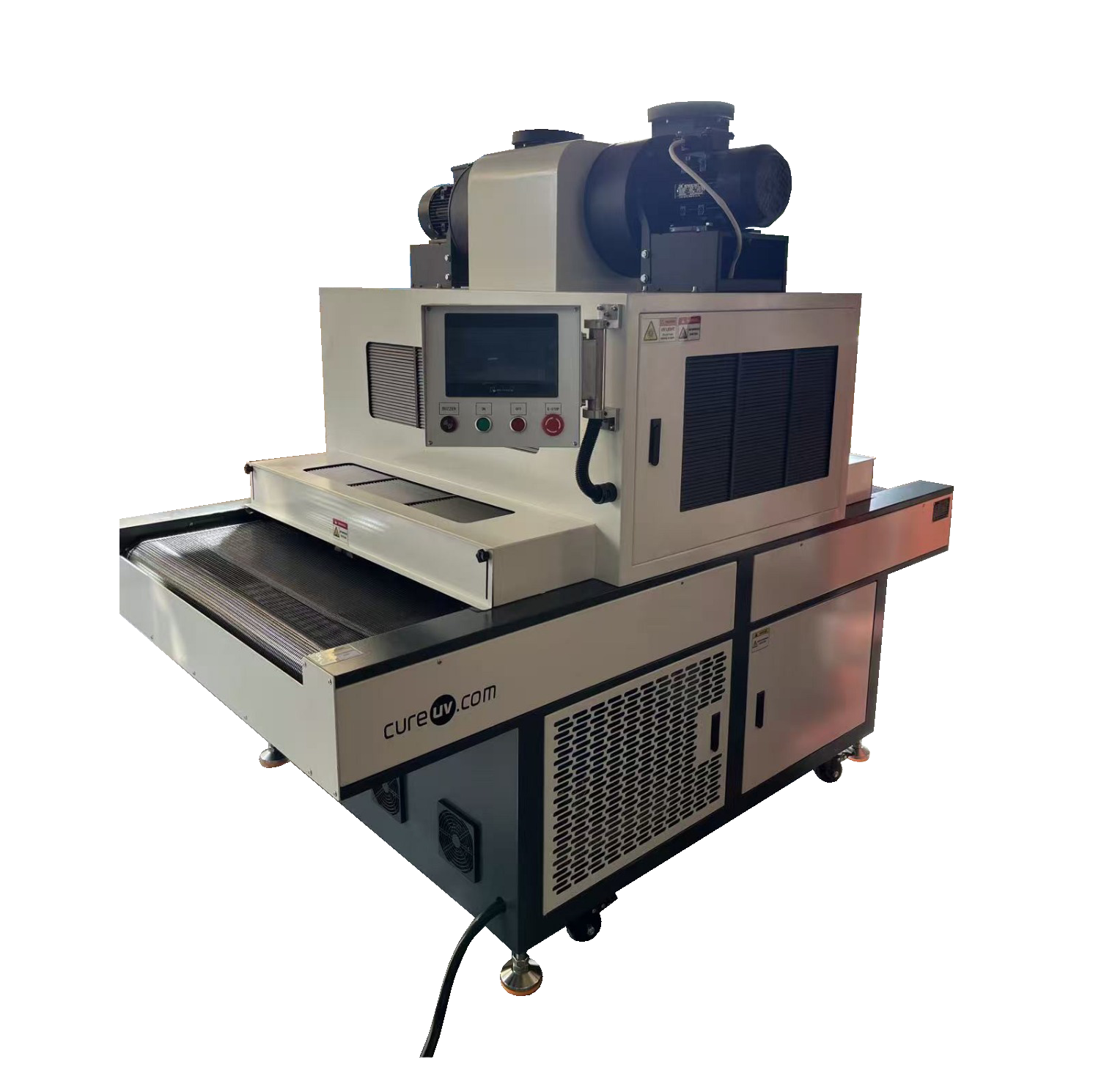

SPDI UV Total-Cure 20” Conveyor System UV-A Medium Pressure Curing Irradiator

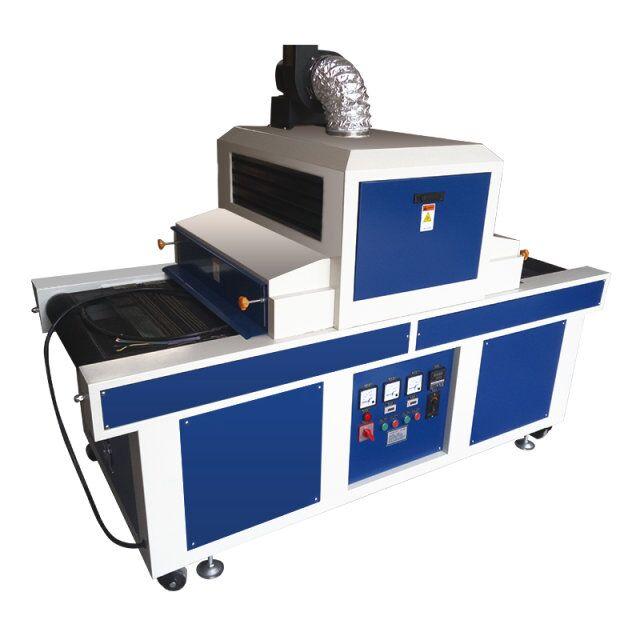

Features of 20" Conveyor:

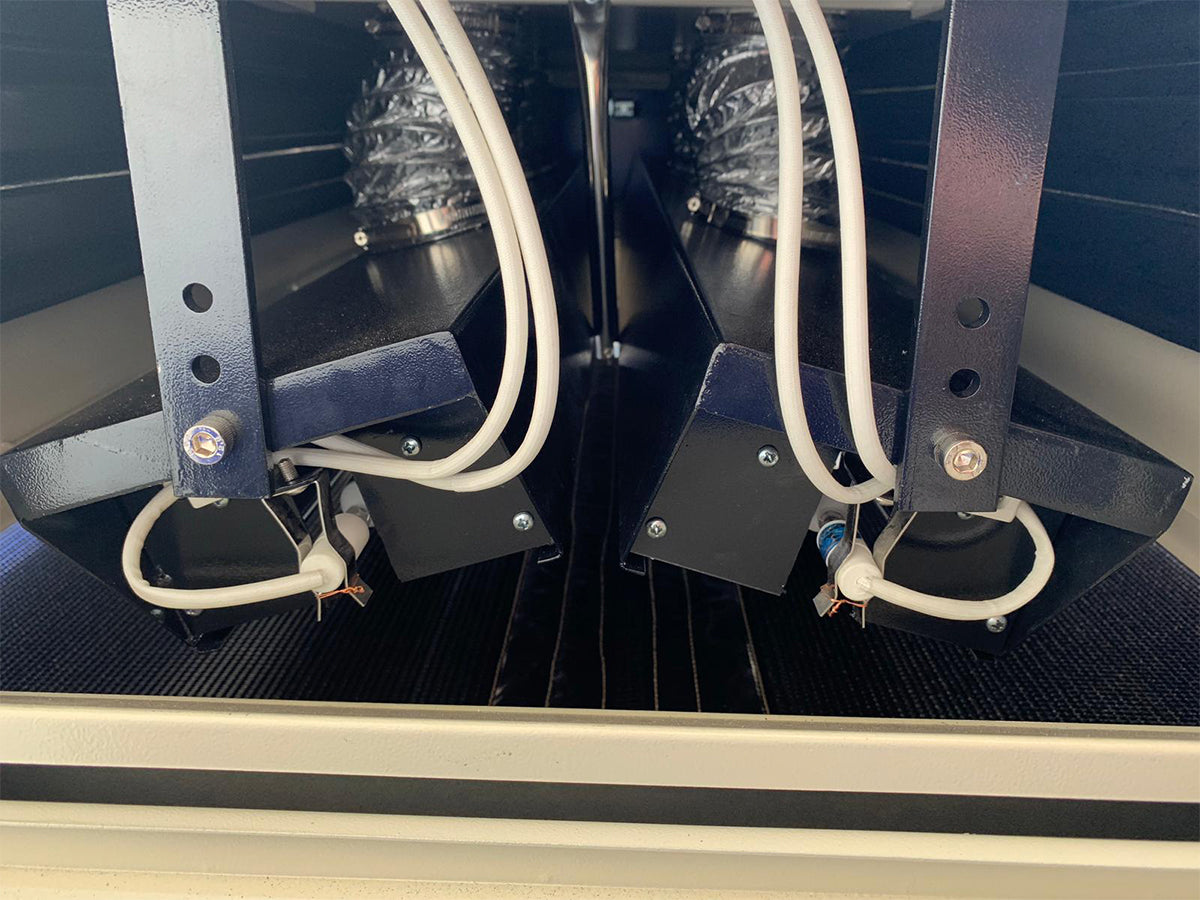

• Dual 18" curing lamps.
• UV lamps available in Mercury (365 nm) or Gallium (420 nm)
• 20" conveyor width to fit most applications.
• Adjustable conveyor speed from 0 to 40 feet per minute.
• 10,000 watts of curing power (two x 5,000 watt lamps)
• 277 watts per inch of intensity per bulb

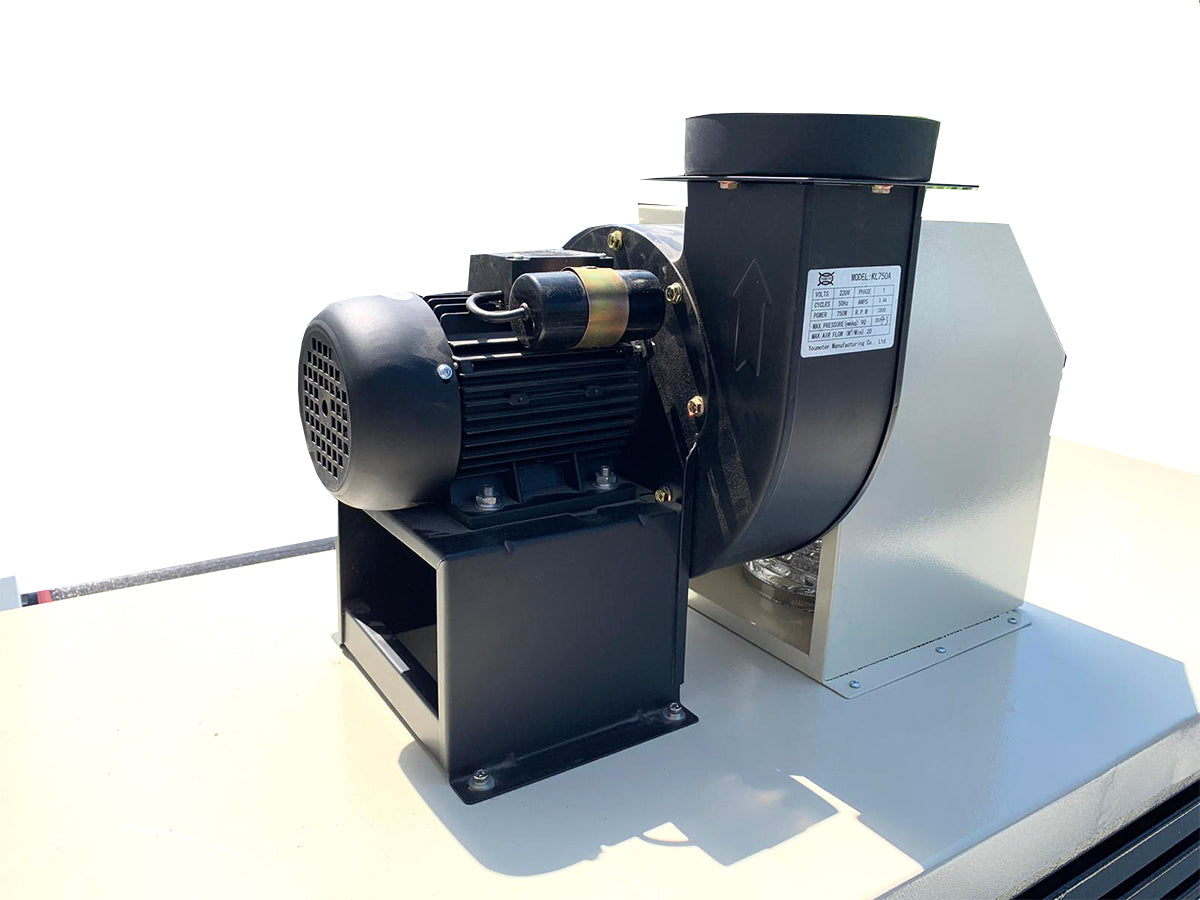

• 500 watt cooling fan.
• 80" long x 48" high x 22" wide

Features of 12" Conveyor:

• Dual 12" curing lamps.
• UV lamps available in Mercury (365 nm) or Gallium (420 nm)
• 12" conveyor width.
• Adjustable conveyor speed from 0 to 40 feet per minute.
• 6,000 watts of curing power (two x 3,000 watt lamps)
• 250 watts per inch of intensity per bulb
• 500 watt cooling fan.
• 50" long x 30" high x 14" wide

 Features of 8" Conveyor:

• Dual 8" curing lamps.
• UV lamps available in Mercury (365 nm) or Gallium (420 nm)
• 8" conveyor width to fit most applications.
• Adjustable conveyor speed from 0 to 40 feet per minute.
• 6,000 watts of curing power (two x 3,000 watt lamps)
• 250 watts per inch of intensity per bulb
• 500 watt cooling fan.
• 42" long x 30" high x 10" wide
