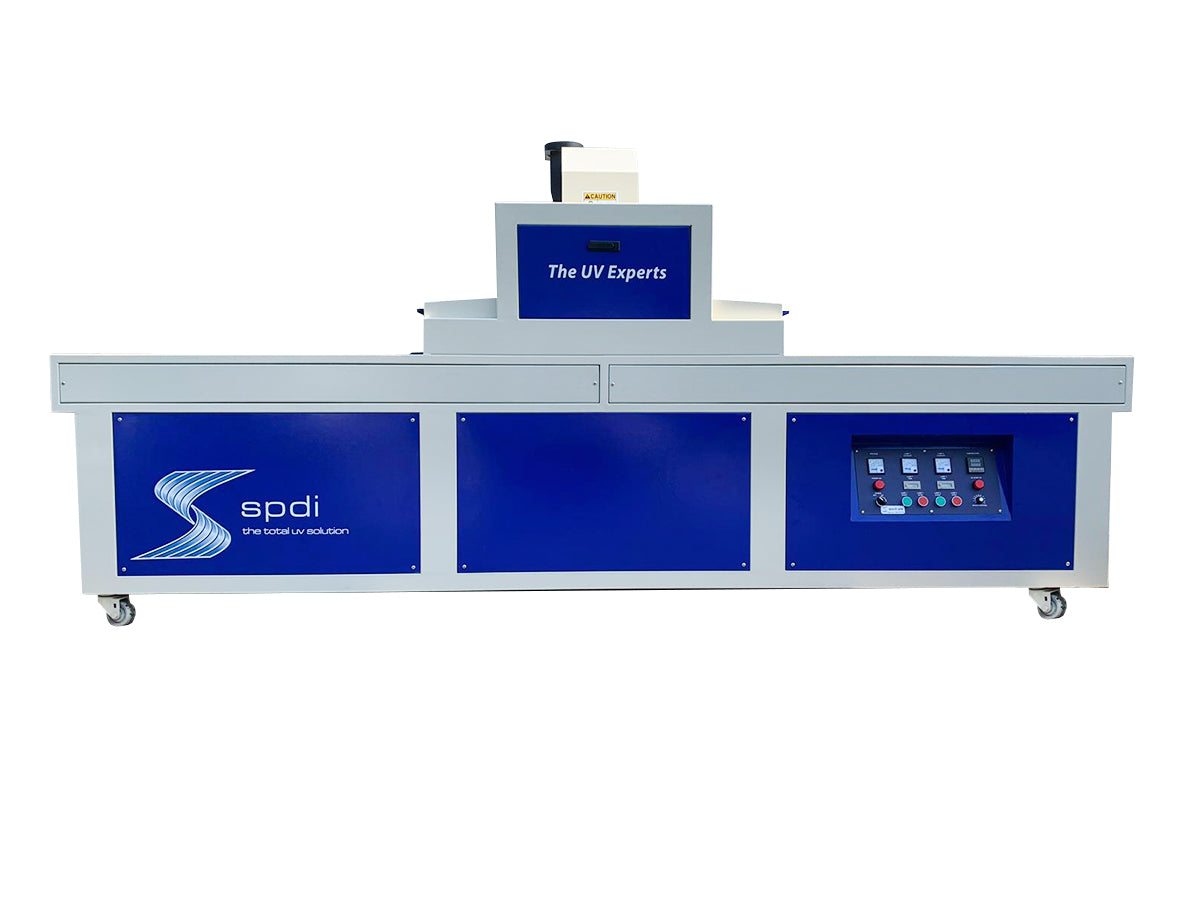

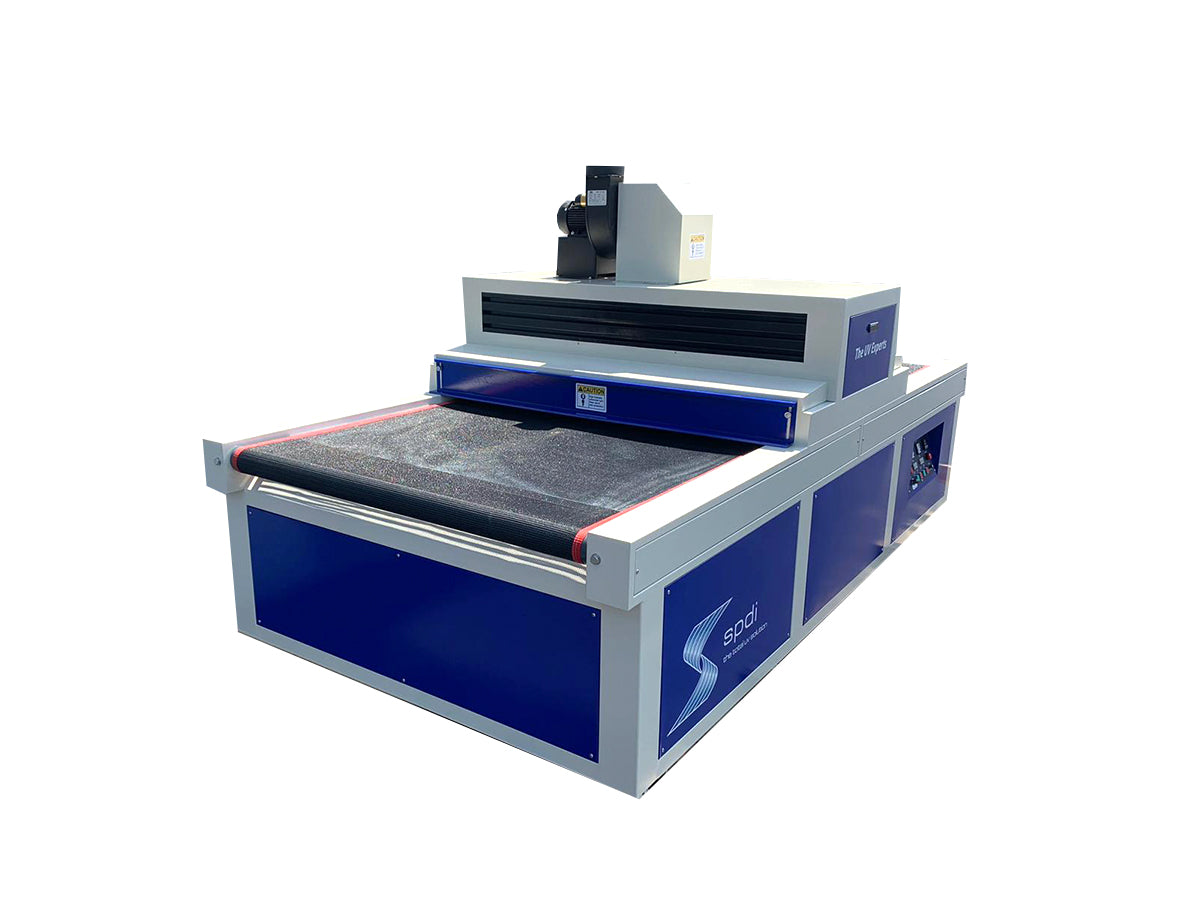

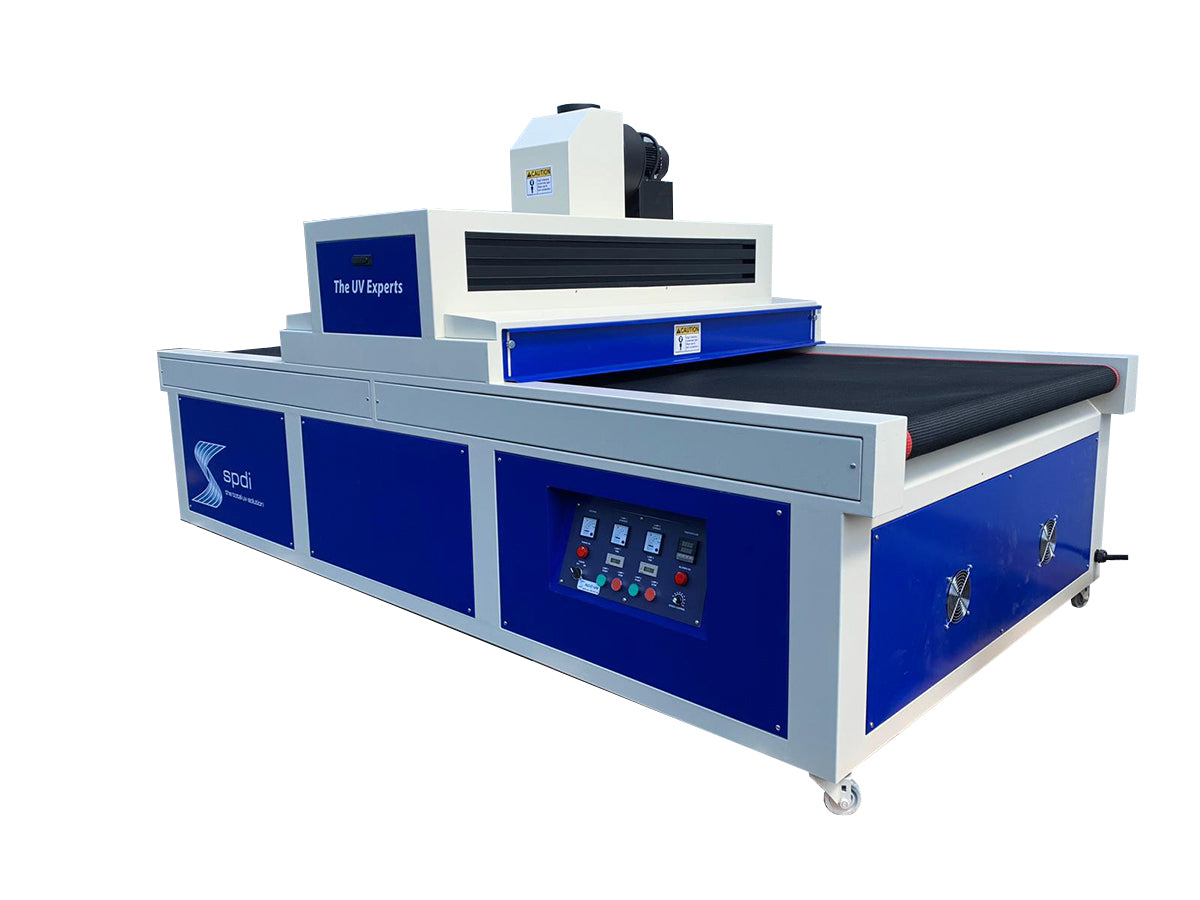

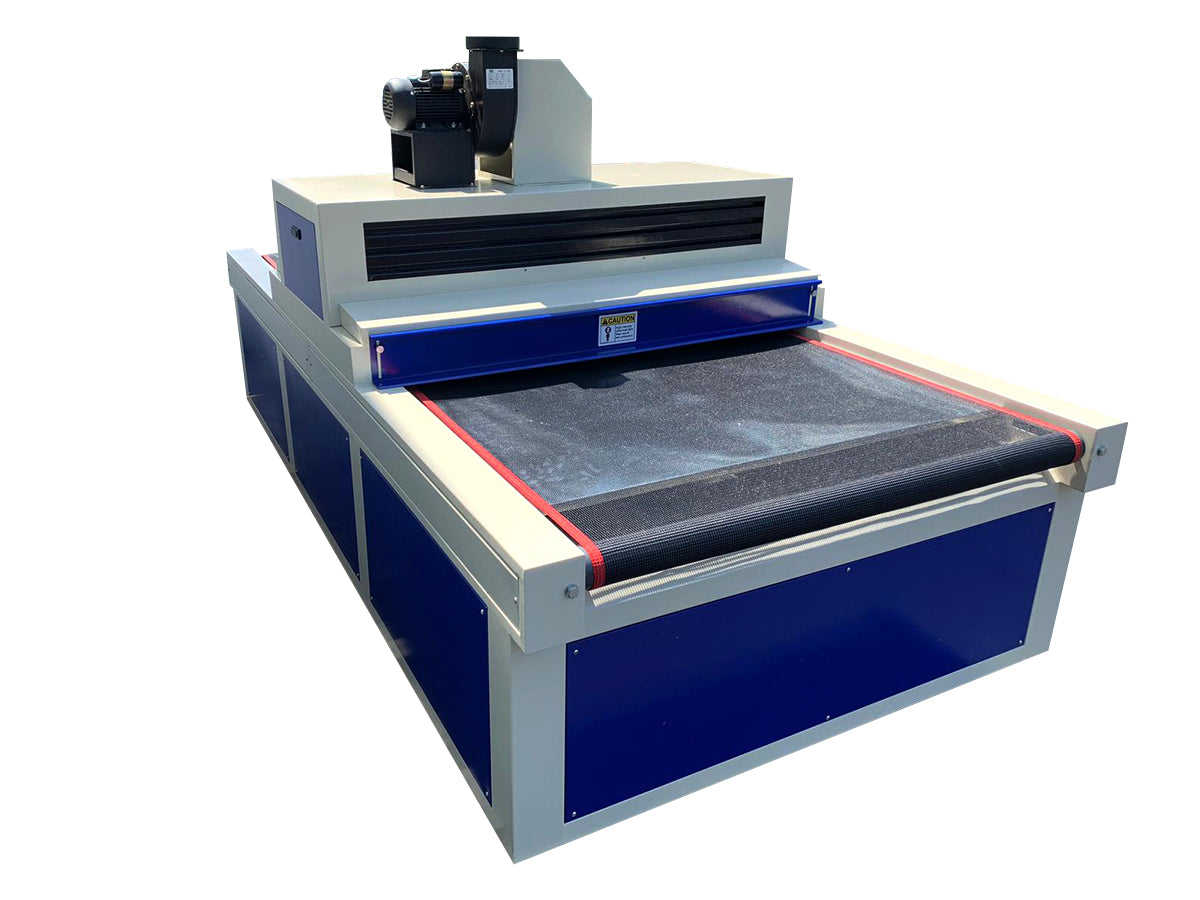

SPDI UV Total-Cure 66” Conveyor System with Dual UVA Curing Irradiators

SPDI UV Total-Cure 66” Conveyor System with Dual UVA Curing Irradiators

$52,999.00 USD
$52,999.00 USD
Sale Sold out

301153-66

Features:

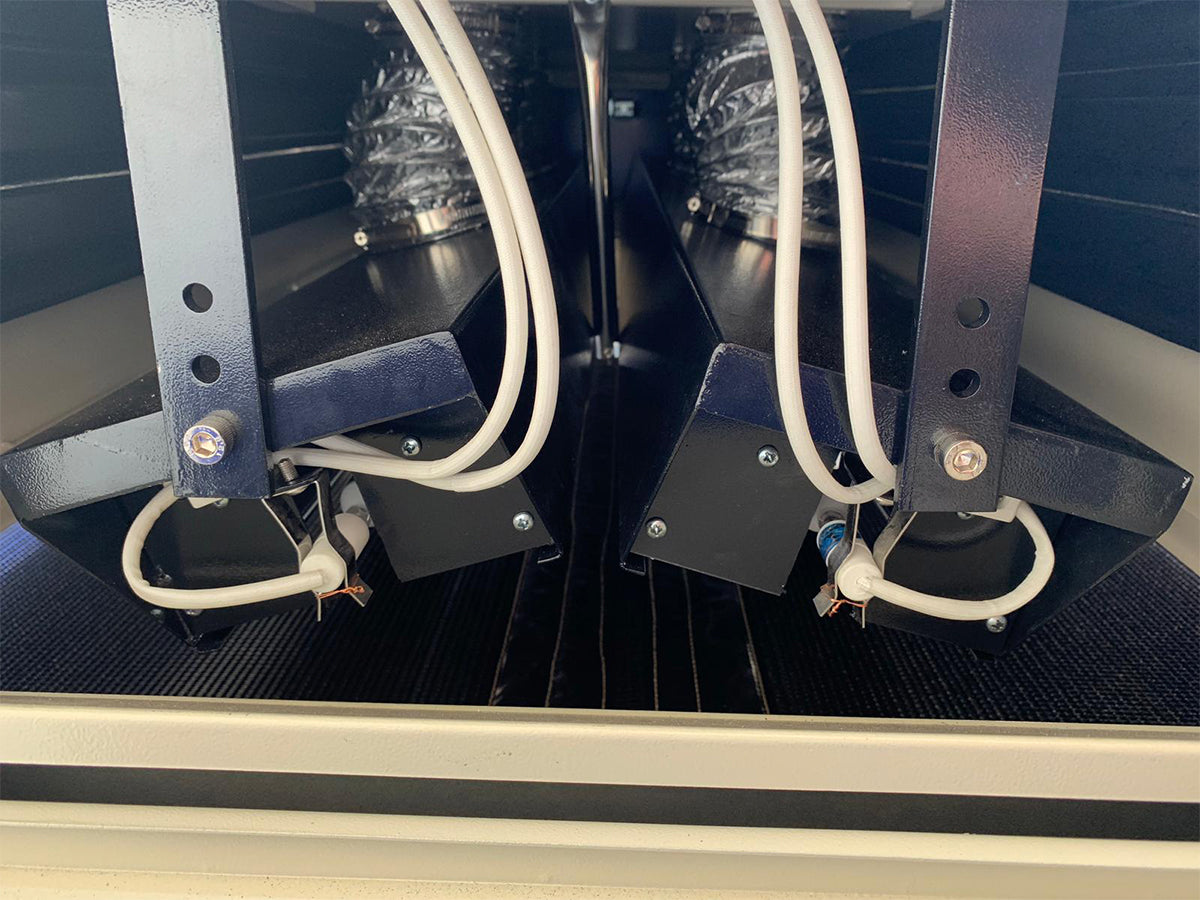

  • Dual 66" (152 cm) curing lamps.
  • UV lamps available in Mercury (365 nm) or Gallium (420 nm)

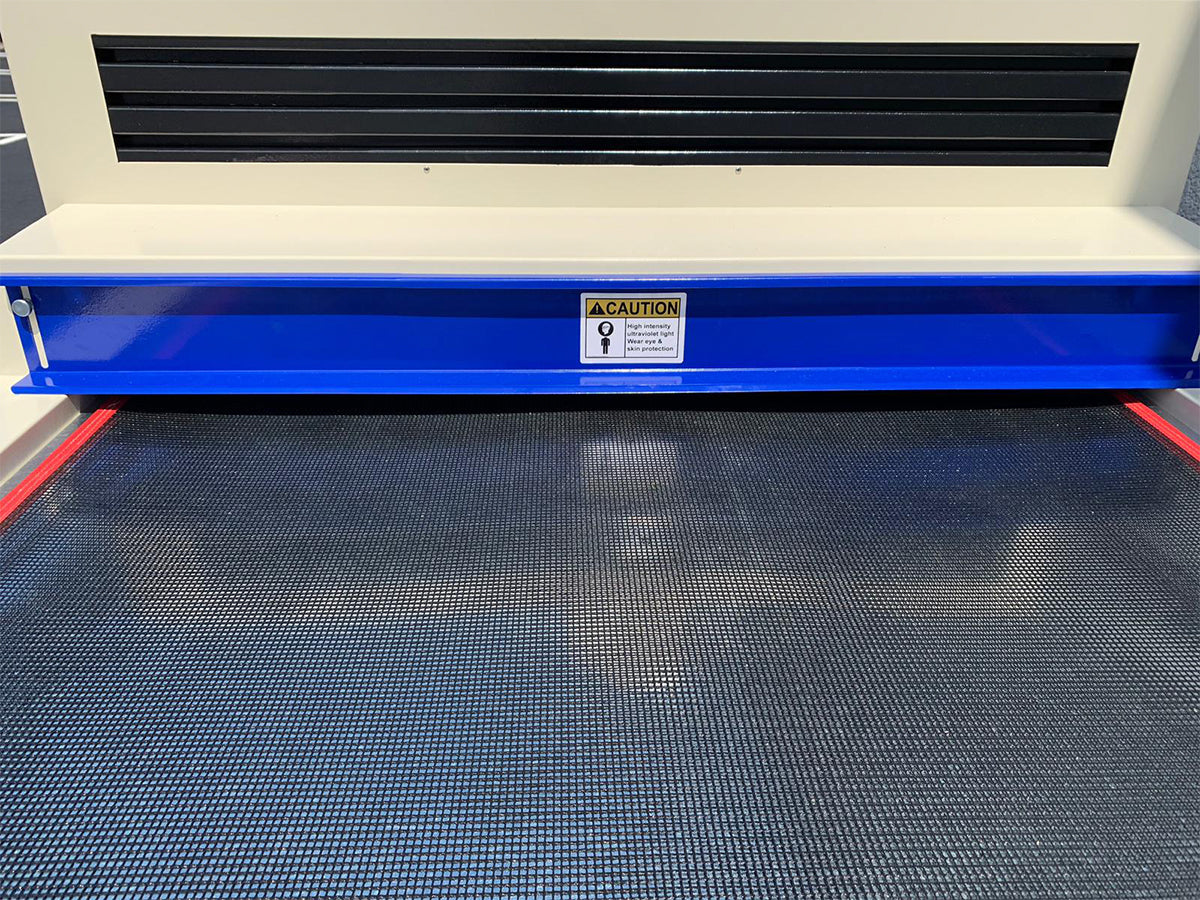

  • 70" (178cm) conveyor fits even the widest of materials..
  • Adjustable conveyor speed from 0 to 40 feet per minute.
  • 16,000 watts of curing power (two x 8,000 watt lamps)

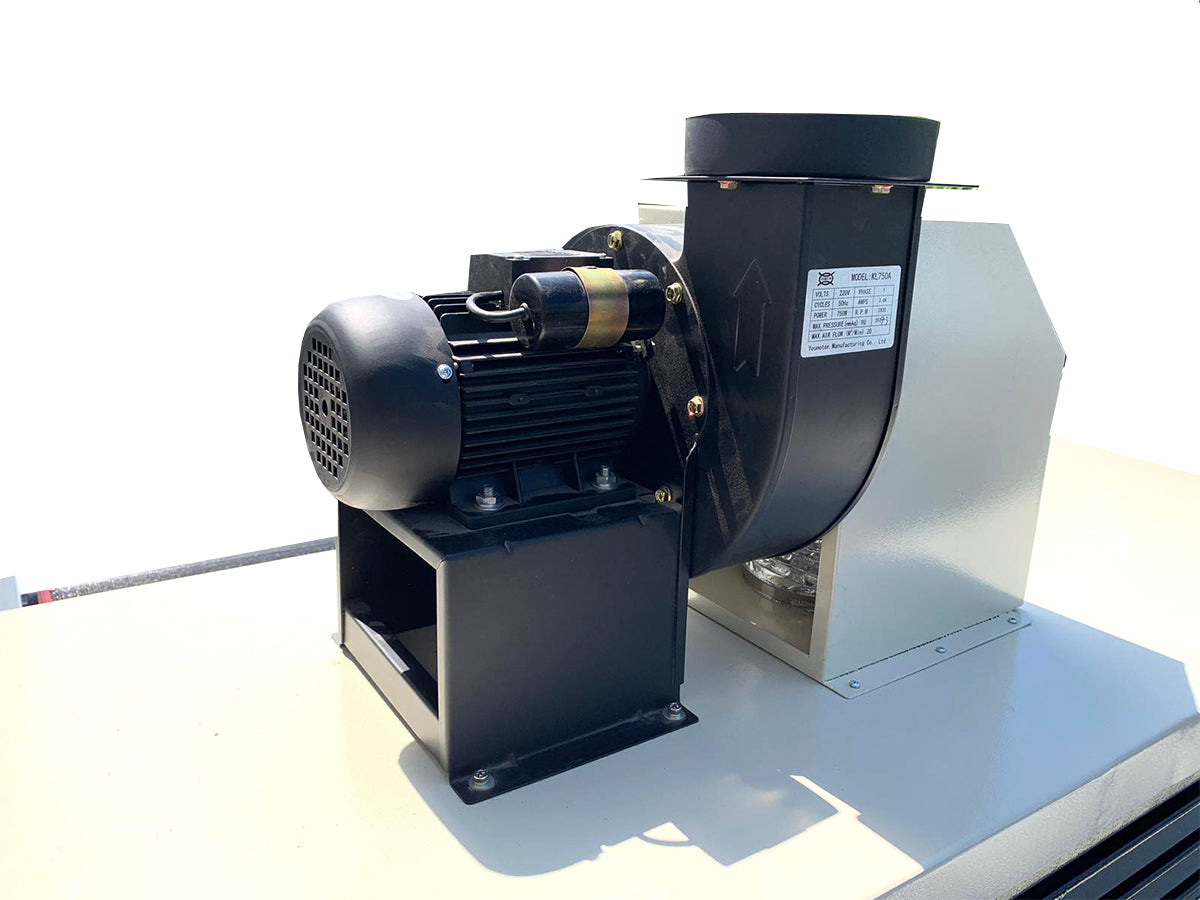

  • 500 watt cooling fan.



Intensity & Dosage at Various Speeds:

Conveyor Speed 15 ft/min 20 ft/min 30 ft/min 40 ft/min
Intensity|Dosage mw/cm2 | mJ/cm2 mw/cm2 | mJ/cm2 mw/cm2 | mJ/cm2 mw/cm2 | mJ/cm2
UVA 448  | 1150  437  | 691  437  | 532  433  | 415
UVB 402  | 1043  397  | 632  395  | 488  398  | 381
UVC 113  | 299  112  | 181  111  | 140  111  | 109
UVV 356  | 901  351  | 544  348  | 418  346  | 326

Also Known As:
