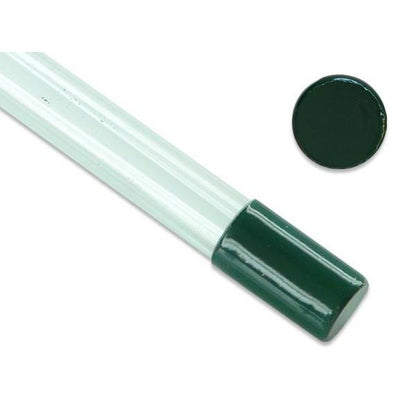

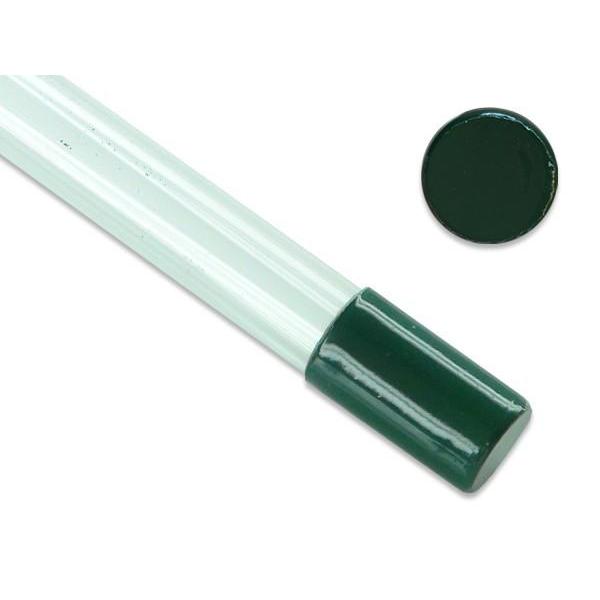

Sterilight R-Can S463RL Compatible CureUV Brand Replacement UVC Light Bulb

4 Pin Stepped on a Single End - 28 Watt Germicidal Water Treatment Bulb

The Sterilight R-CAN S463RL Replacement UVC Light Bulb is a four pin stepped on a single end that has lamp wattage of 28 Watts. The 62V lamp has a non-ozone glass type and a rated life of 10,000 hours.

The lamp uses UV-C light to destroy molds, protozoa, virus and bacteria. The germicidal bulb is compatible with filters, sanitizers and water purifiers. When water is passed through the CureUV’s germicidal UV light, it deactivates the genetic material of the microorganism and renders them incapable of multiplying. The UVC light bulb comes with 12 months sterilizing property after which it must be replaced for maximum effectiveness.

Common Applications:

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

The UVC bulb is a compatible replacement with the following light bulb models:

• S5Q
• S5Q/2
• S5Q-Gold
• S5Q-Gold/2
• S5Q-PA
• S5Q-PA/2
• SSM-24
• SSM-24/2

Technical Specifications:

• Total Length: 18.5 inches (470mm)
• Arc Length: 15.16 inches (385mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Voltage: 62V
• Lamp Wattage: 28 Watts
• Output UVC Watts: 7.5 Watts
• Output uW/cm^2 @ 1m: 77
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone

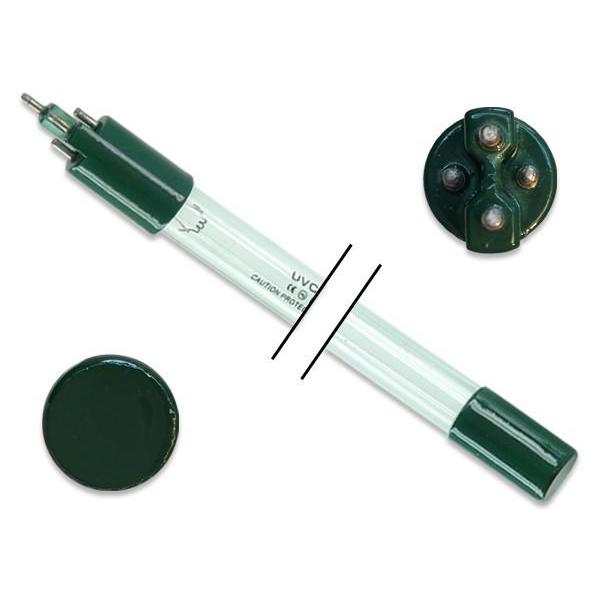

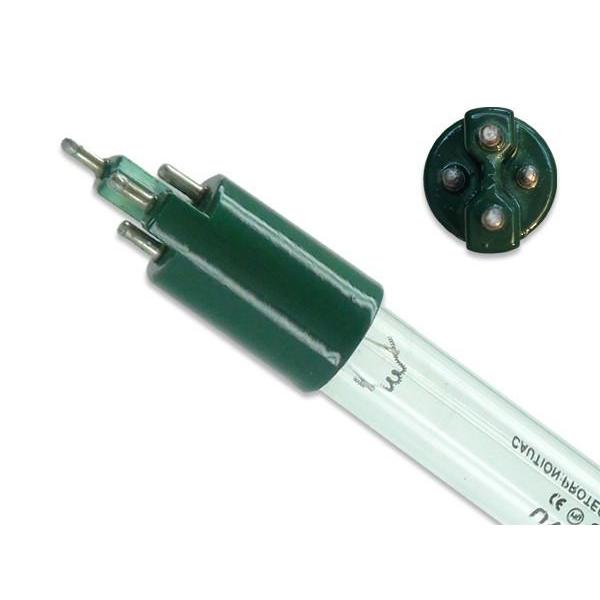

• Base Style: 4 pin stepped on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

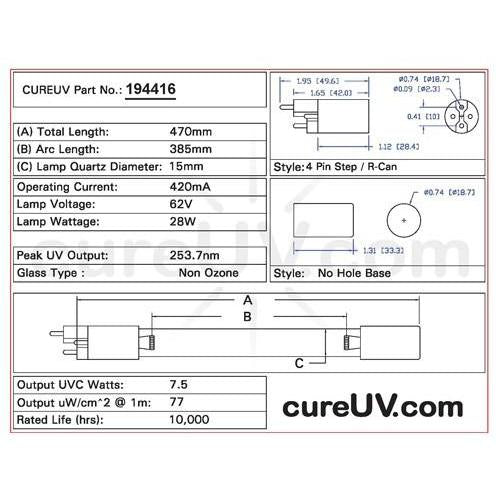

Drawing of Replacement UVC Bulb Item # 194416 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Sterilight R-Can brand UVC bulbs. All Sterilight R-Can brand names, trademarks, and logos are property of Sterilight R-Can.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment. CureUV is not associated with TrojanUV. Brand names, trademarks, and logos are property of their respective owners.
