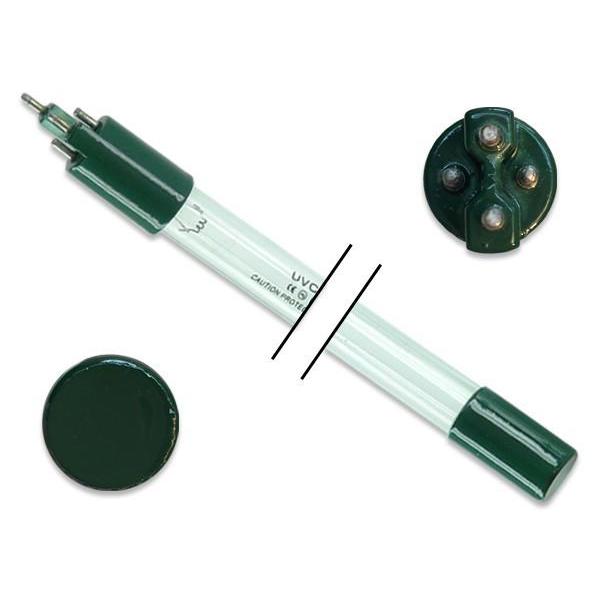

Sterilight R-Can SC-200 Compatible CureUV Brand Replacement UVC Light Bulb

4 Pin Stepped on a Single End - 28 Watt Germicidal Water Treatment Bulb

The Sterilight R-Can SC-200 Compatible Generic Replacement UVC Light Bulb 4 Pin Stepped on a Single End - 28 Watt Germicidal Water Treatment Bulb. The lamp bulb is made using ceramic and has an average lifespan of 10,000 hours. The lamp bulb is compatible with germicidal OEM Water sterilization filters, UV sanitizers and water purifiers.

The lamp also uses UV-C light to extinguish pathogens such as bacteria, virus, protozoa and molds present in water. The fixture has a long lifespan and has low mercury dosage to meet environmental demands.

The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. All you will need to do is to select the option above. The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

Technical Specifications:

• Total Length: 11.8 inches (300mm)
• Arc Length: 8.58 inches (218mm)
• Lamp Quartz Diameter: 15mm
• Operating Current:800mA
• Lamp Voltage: 36V
• Lamp Wattage: 28 Watts
• Output UVC Watts: 7.5 Watts
• Output uW/cm^2 @ 1m: 77
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone

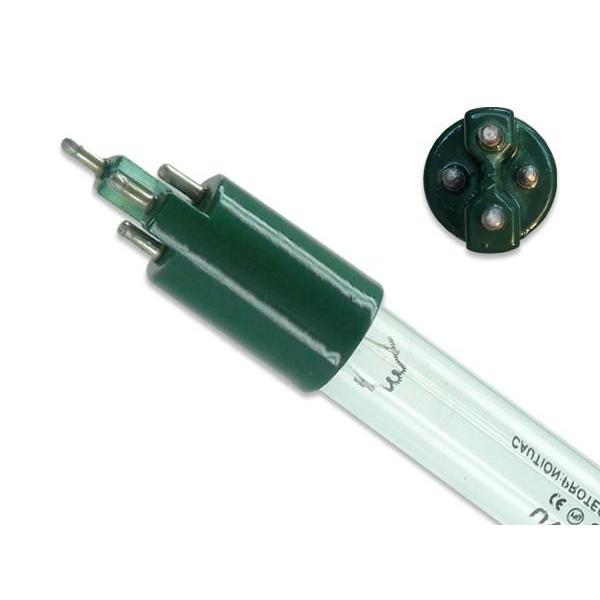

• Base Style: 4 pin stepped on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Sterilight R-Can brand UVC bulbs. All Sterilight R-Can brand names, trademarks, and logos are property of Sterilight R-Can.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Safety Data Sheet for CureUV Germicidal Bulb

Safety Data Sheet for CureUV Germicidal Bulb

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment. CureUV is not associated with TrojanUV. Brand names, trademarks, and logos are property of their respective owners.
