Tank Master UV Tank Storage Sanitizers
Tank Master UV Tank Storage Sanitizers
Regular price
$594.99 USD
Regular price
Sale price
$594.99 USD
Unit price
/
per
No reviews
SKU:201156-25-8522A6
Maintain the integrity and quality of the air space and liquid contents of your storage tanks with a Tank Master UV Tank Storage Sanitizer.
With multiple sizes and wattage's available no matter the application the Tank Master can be configured to work for you. Multiple systems can be mounted together and either vertically or horizontally to best suit your need.
System Highlights-
- Continuous disinfection without special monitoring
- State-of-the-Art Electronic Ballast
- Disinfects the air space and surfaces above the liquid, and the liquid contents
- Irradiates contents with germicidal ultraviolet rays, without the use of heat or chemicals

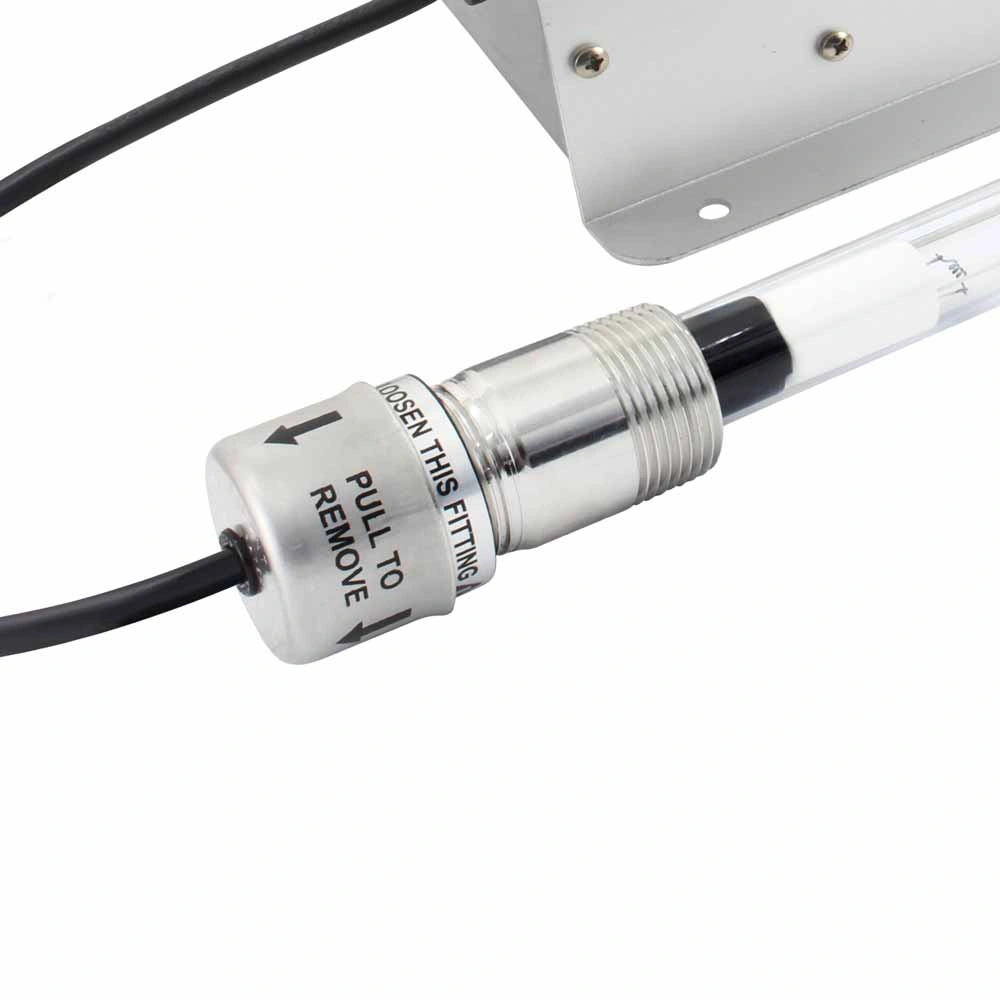

- Quick Lamp Change and Fused Quartz Sleeve

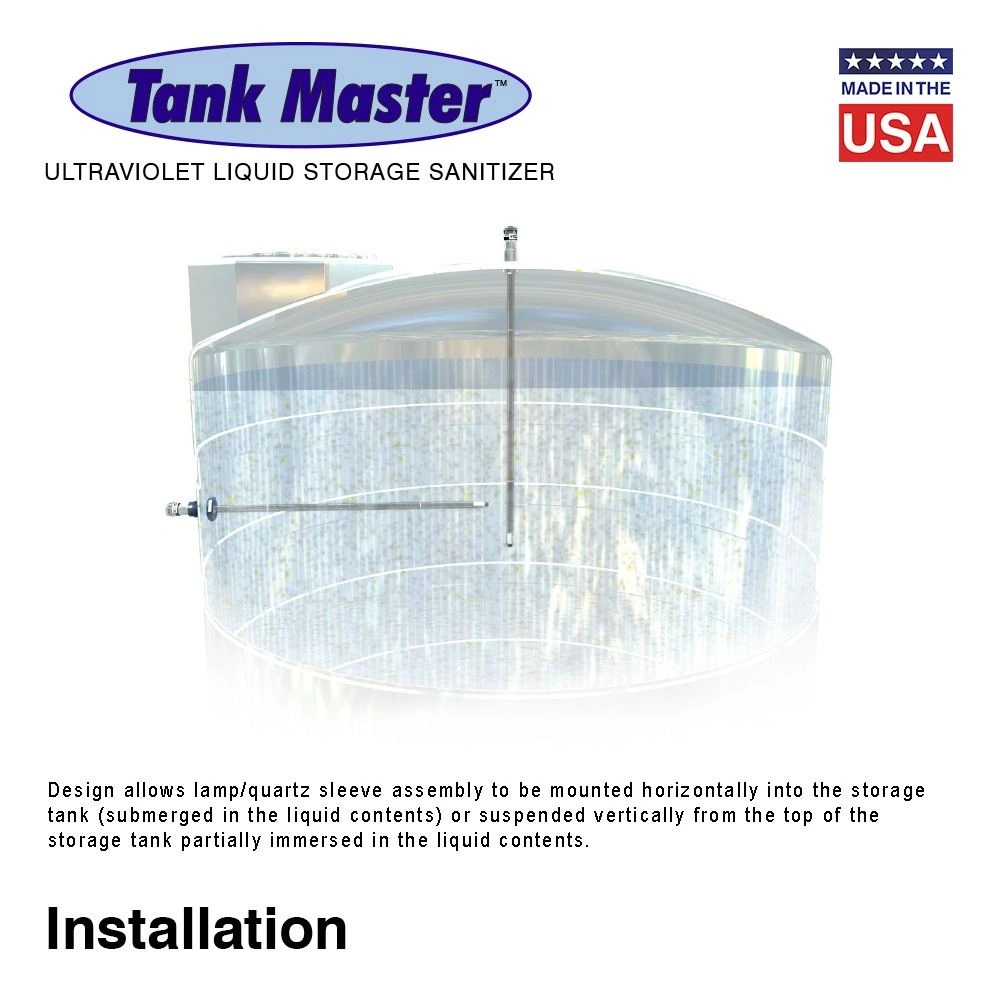

- Design allows most models to be mounted vertically or horizontally
into the storage tank - Can be either mounted into the storage tank (submerged in the liquid contents) or suspended vertically from the top of the storage tank (partially immersed in the liquid contents)
- Inexpensive to operate
- SAFE — no danger of overdosing – no addition of chemicals
- Includes STER-L-RAY ® Lamp and CRYSTAL CLEAR™ Quartz Sleeve
Also Known As:
Also Known As:
Share

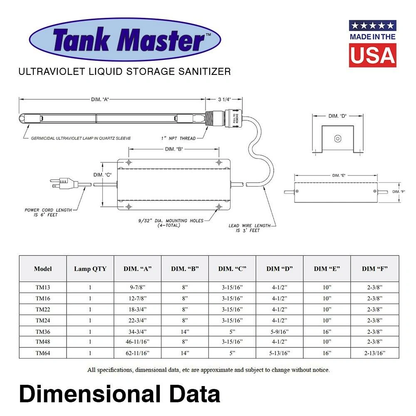

Technical Data for Tankmaster

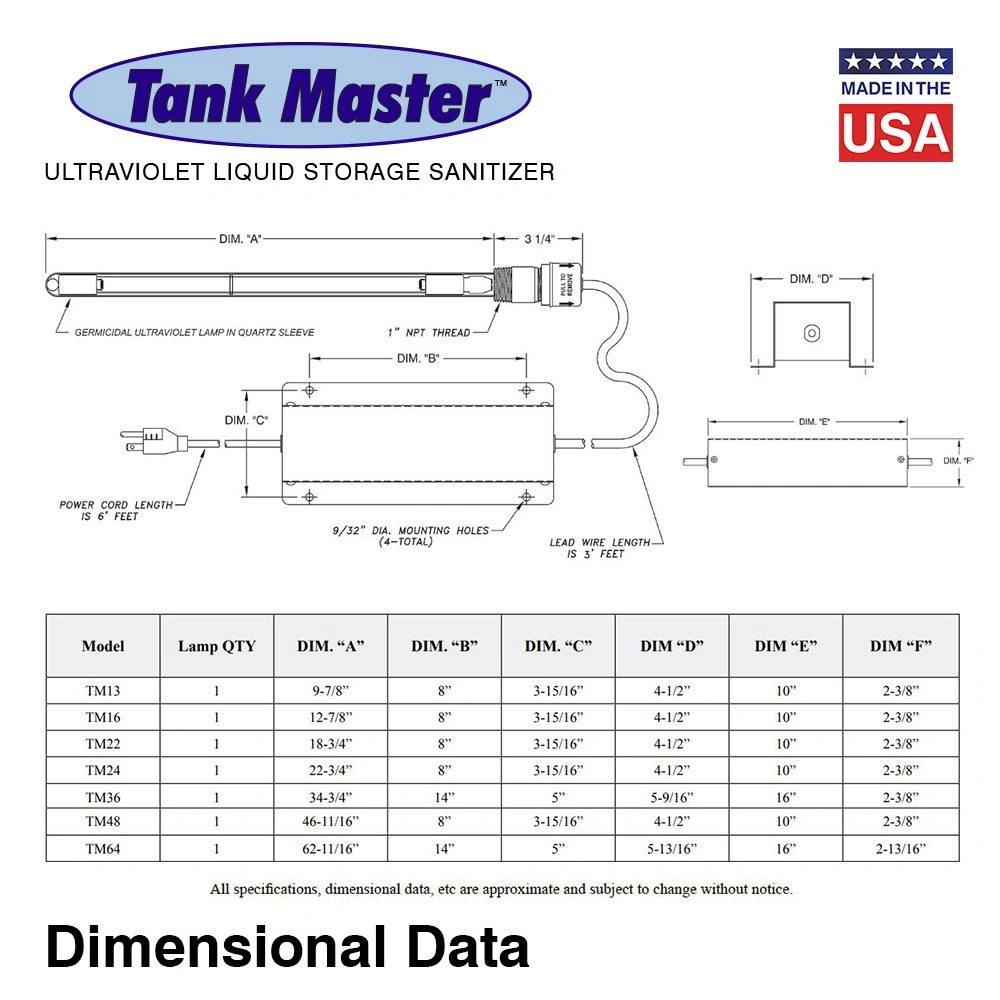

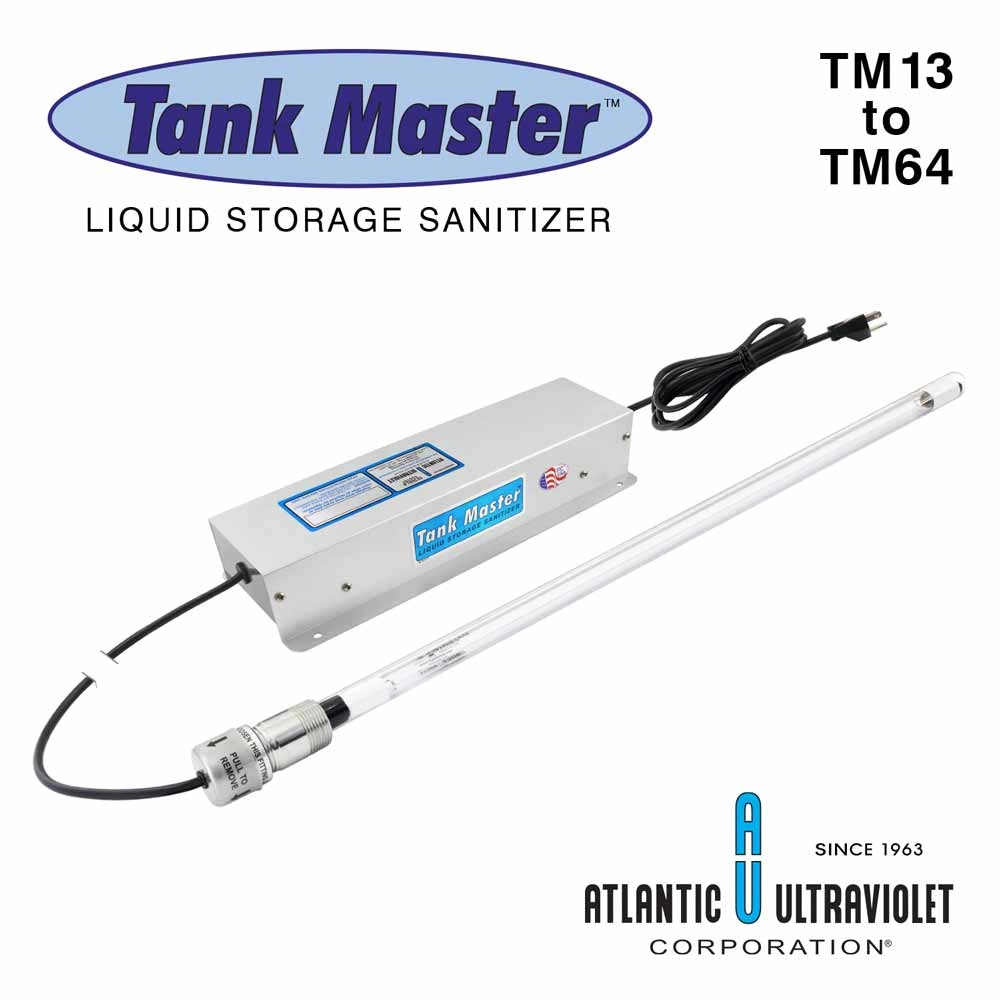

Tank Master™ UV Tank Storage Sanitizers - One Lamp Units (Lamp Included)
Model | Voltage | Insertion Depth |
Power Usage | Total UV Output | Lamp | Quartz Sleeve |
TM13 25-8513A1 |
120 | 9.875" | 12W | 2.7W | 05-1119-R | 15-1274A1 |
TM13 25-8513A2 |
220 | 9.875" | 12W | 2.7W | 05-1119-R | 15-1274A1 |
TM13 25-8513A3 |
12vDC | 9.875" | 12W | 2.7W | 05-1119-R | 15-1274A1 |

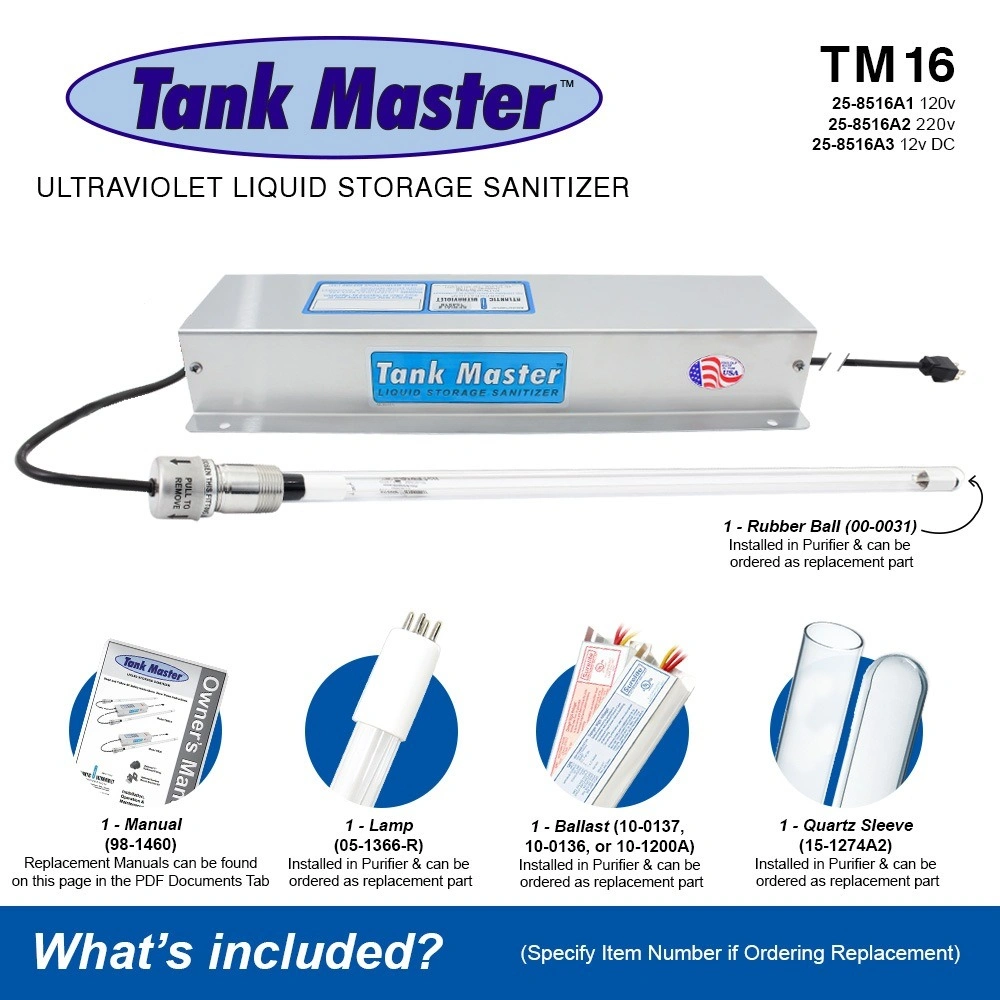

TM16 25-8516A1 |
120 | 12.875" | 16W | 4W | 05-1366-R | 15-1274A2 |
TM16 25-8516A2 |
220 | 12.875" | 16W | 4W | 05-1366-R | 15-1274A2 |
TM16 25-8516A3 |
12vDC | 12.875" | 16W | 4W | 05-1366-R | 15-1274A2 |

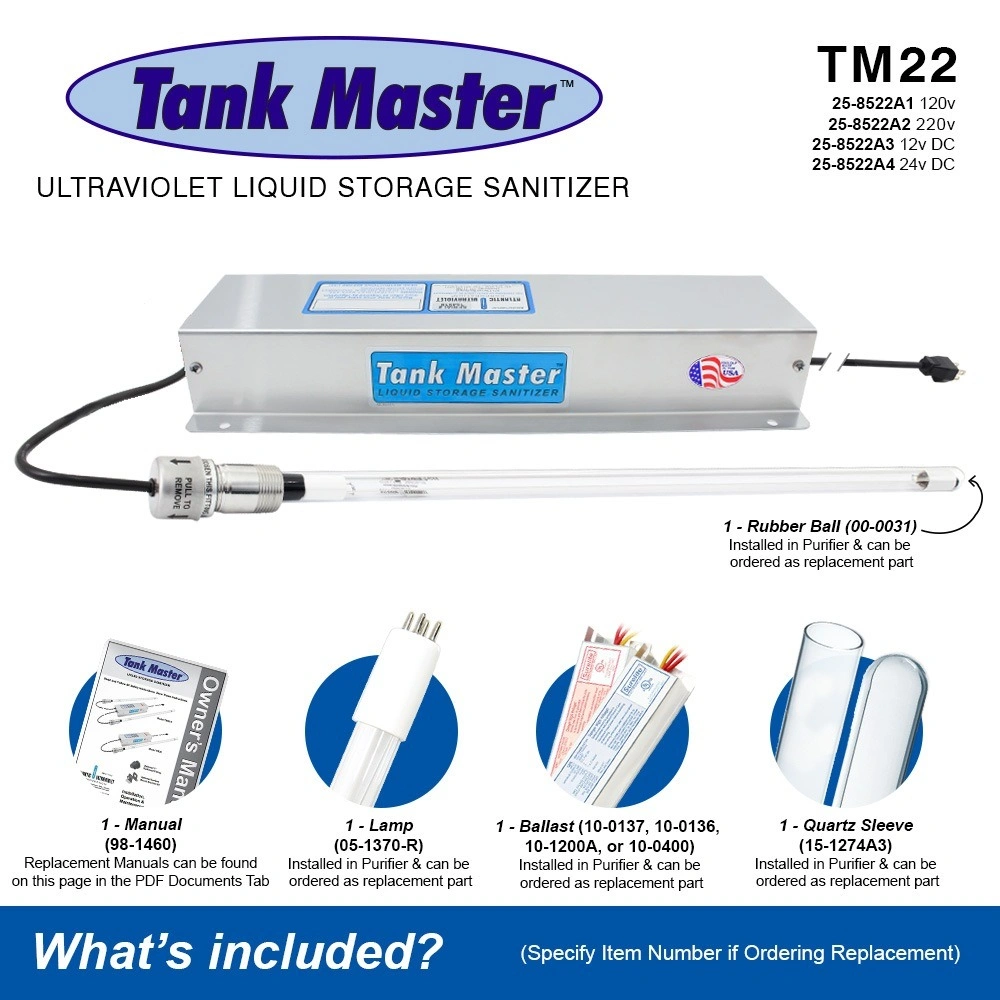

TM22 25-8522A1 |
120 | 18.75" | 25.2W | 7.3W | 05-1370-R | 15-1274A3 |
TM22 25-8522A2 |
220 | 18.75" | 25.2W | 7.3W | 05-1370-R | 15-1274A3 |
TM22 25-8522A3 |
12vDC | 18.75" | 25.2W | 7.3W | 05-1370-R | 15-1274A3 |
TM22 25-8522A4 |
24vDC | 18.75" | 25.2W | 7.3W | 05-1370-R | 15-1274A3 |

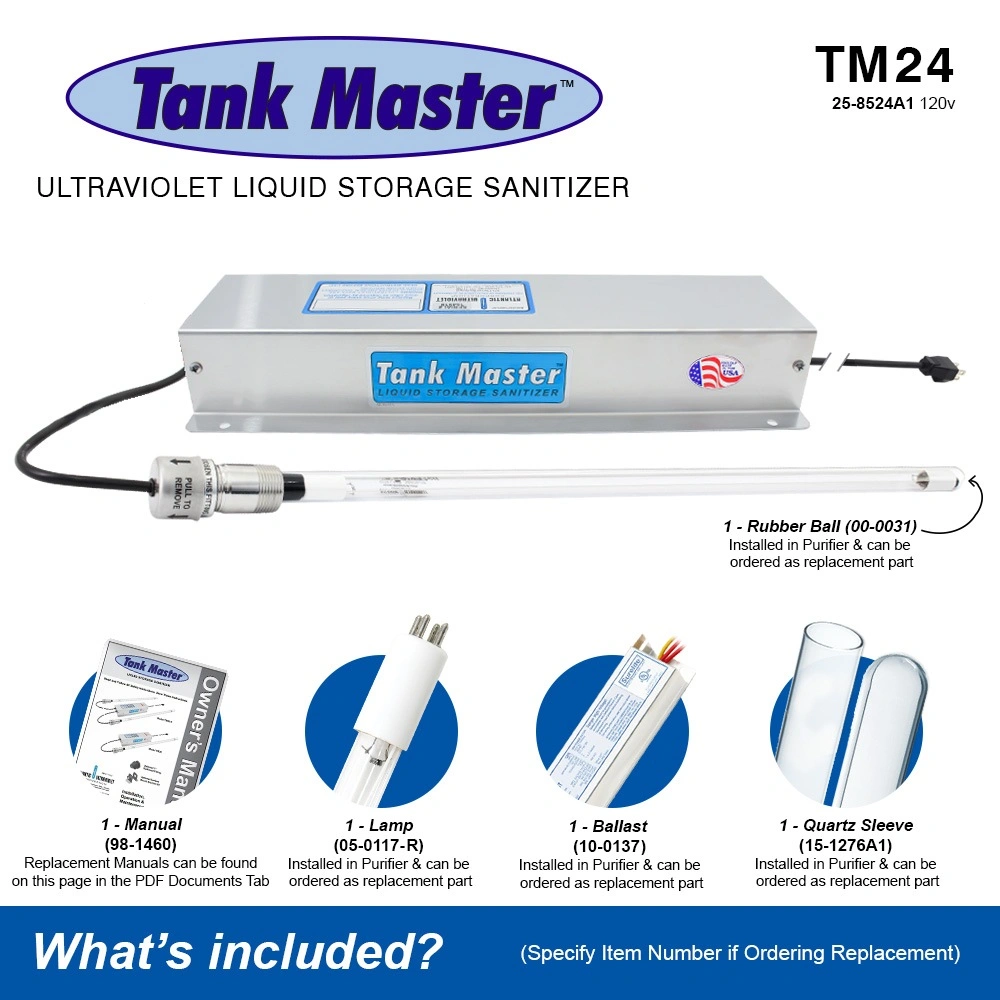

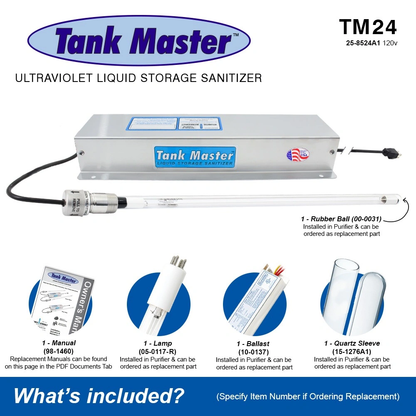

TM24 25-8524A1 |
120 | 22.75" | 30.7W | 8.5W | 05-0117-R | 15-1276A1 |
TM36 25-8536A1 |
120 | 34.75" | 49.2W | 15W | 05-1382-R | 15-1275A1 |
TM36 25-8536A2 |
220 | 34.75" | 49.2W | 15W | 05-1382-R | 15-1275A1 |
TM36 25-8536A3 |
12vDC | 34.75" | 49.2W | 15W | 05-1382-R | 15-1275A1 |
TM48 25-8548A1 |
120 | 46.6875" | 66W | 21W | 05-0197-R | 15-1275A2 |
TM48 25-8548A2 |
220 | 46.6875" | 66W | 21W | 05-0197-R | 15-1275A2 |

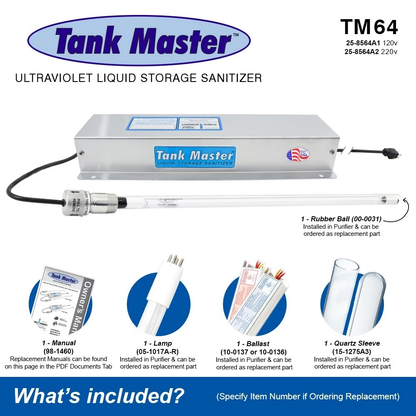

TM64 25-8564A1 |
120 | 62.6875" | 94W | 33W | 05-1017A-R | 15-1275A3 |
TM64 25-8564A2 |
220 | 62.6875" | 94W | 33W | 05-1017A-R | 15-1275A3 |

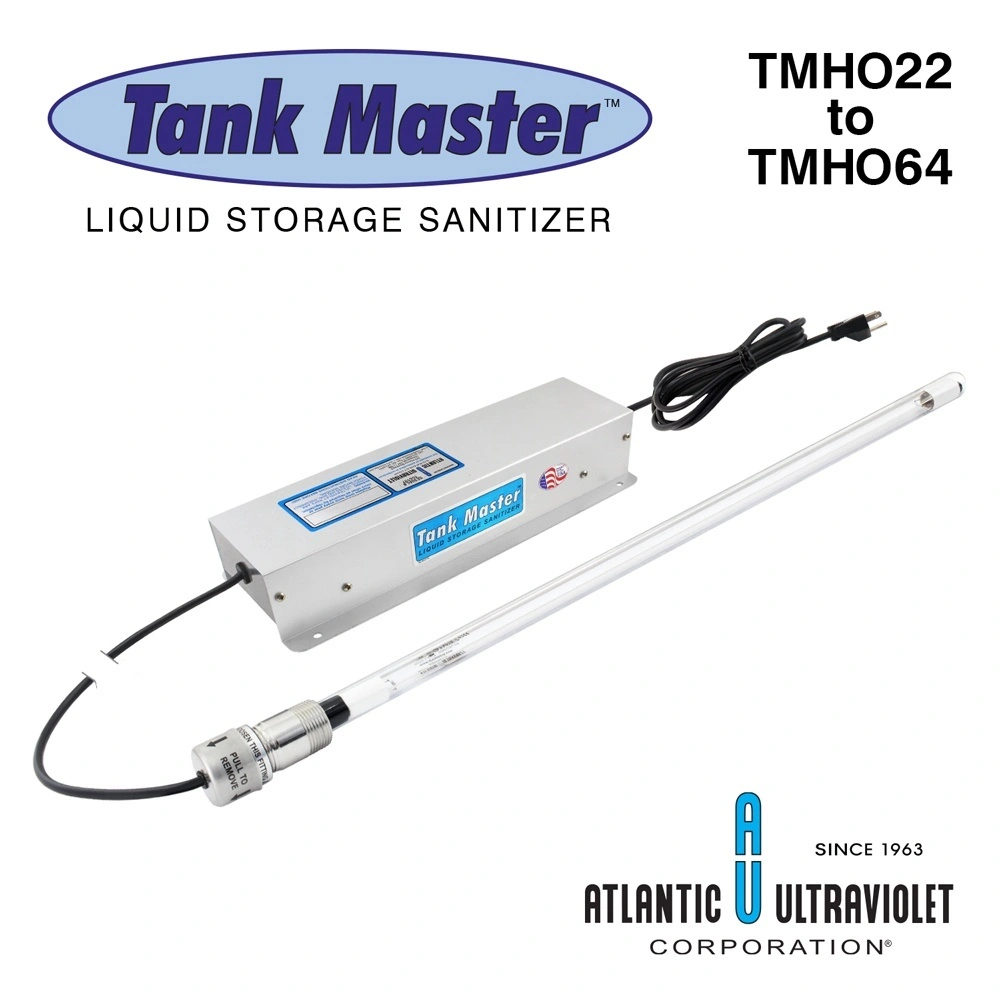

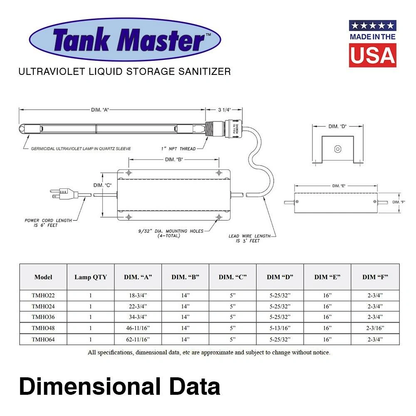

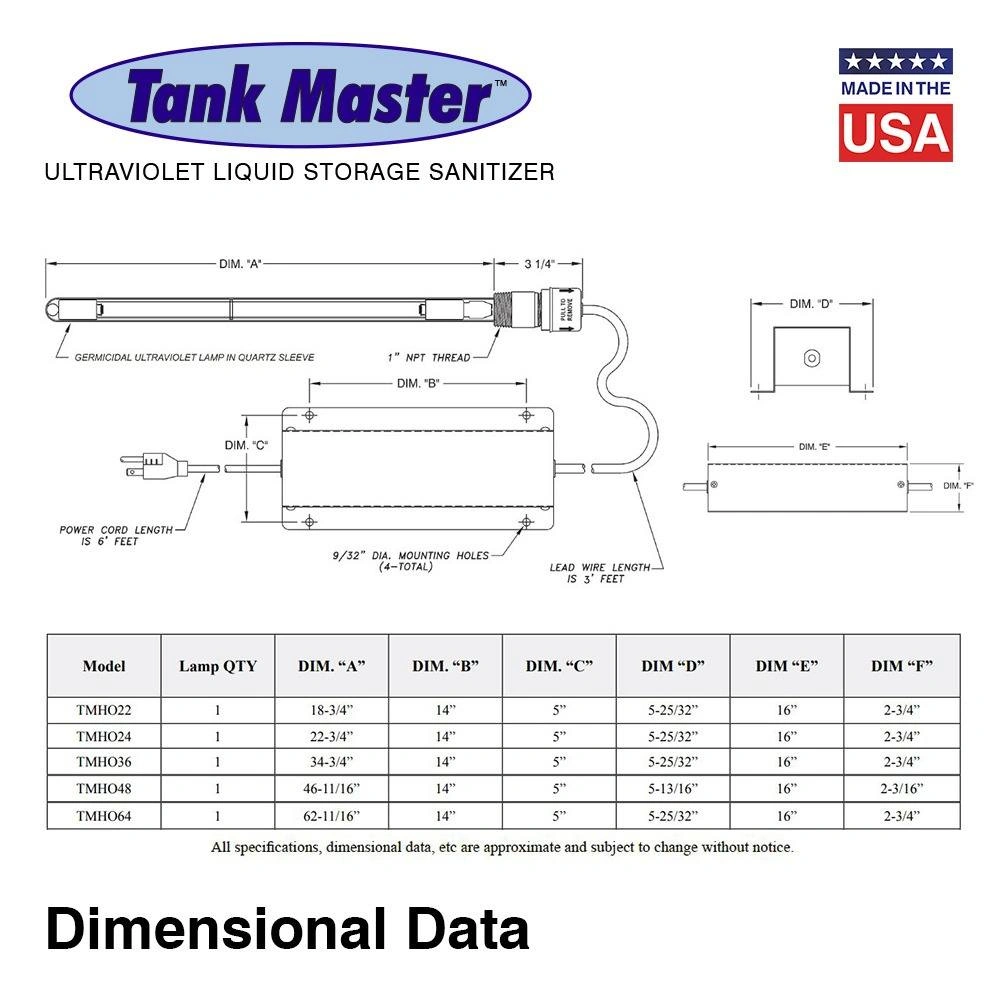

Tank Master™ UV Tank Storage Sanitizers - High Output Lamp Units
Model | Voltage | Insertion Depth | Power Usage | Total UV Output | Lamp | Quartz Sleeve |

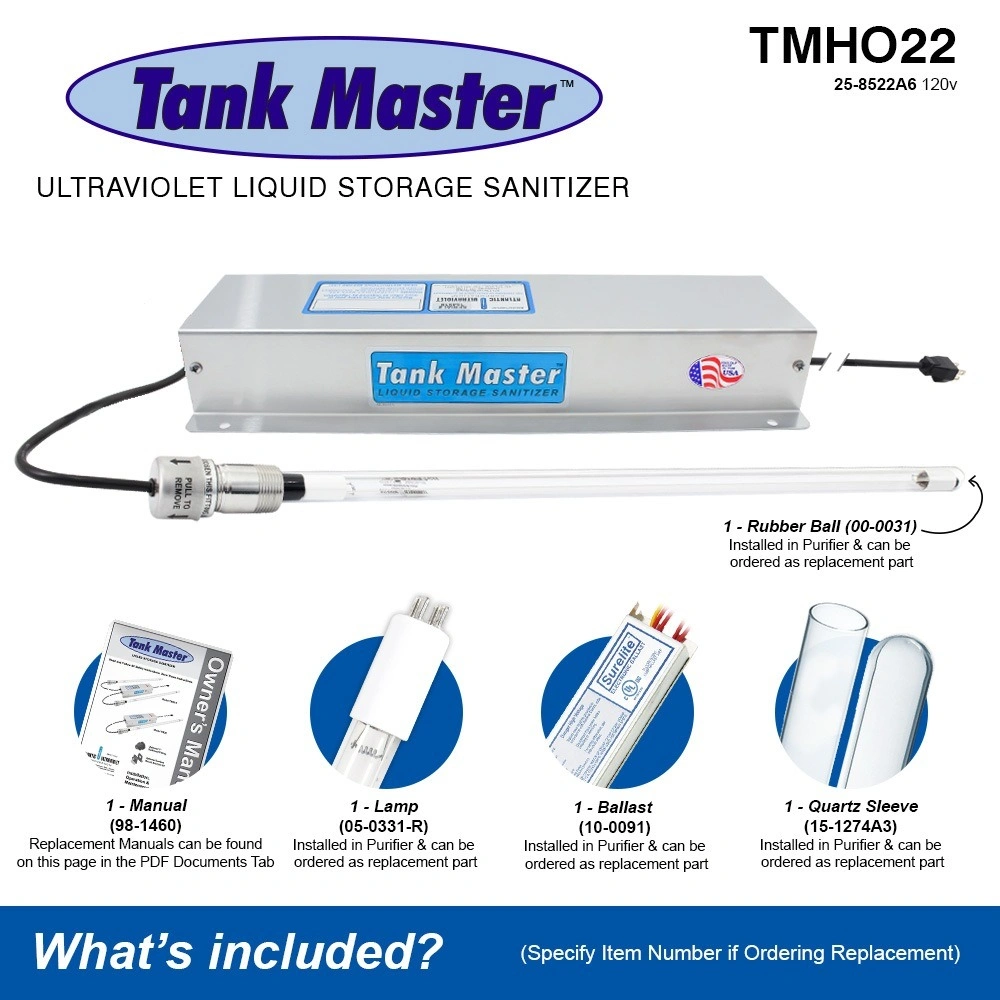

TMHO22 25-8522A6 |
120 | 18.75" | 48W | 13W | 05-0331-R | 15-1274A3 |

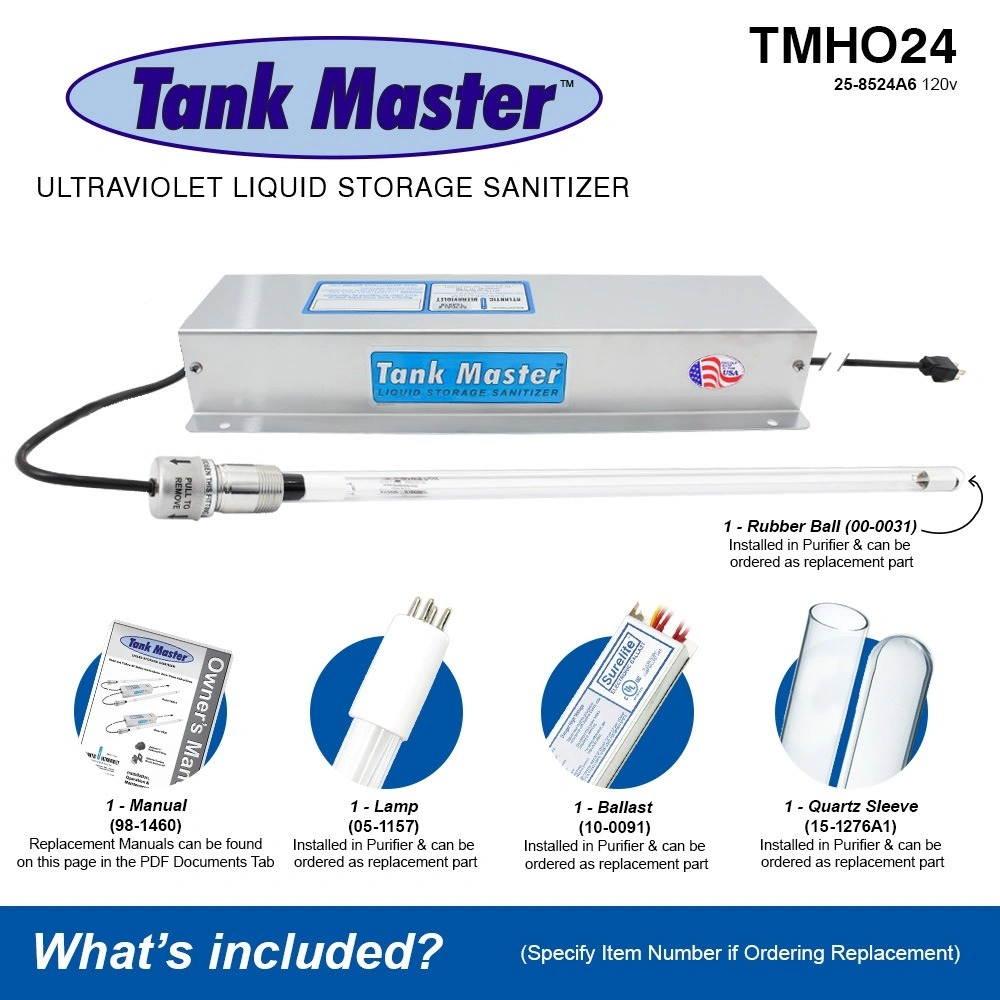

TMHO24 25-8524A6 |
120 | 22.75" | 51W | 18W | 05-1157 | 15-1276A1 |
TMHO36 25-8536A6 |
120 | 34.75" | 87W | 28W | 05-0264-R | 15-1275A1 |

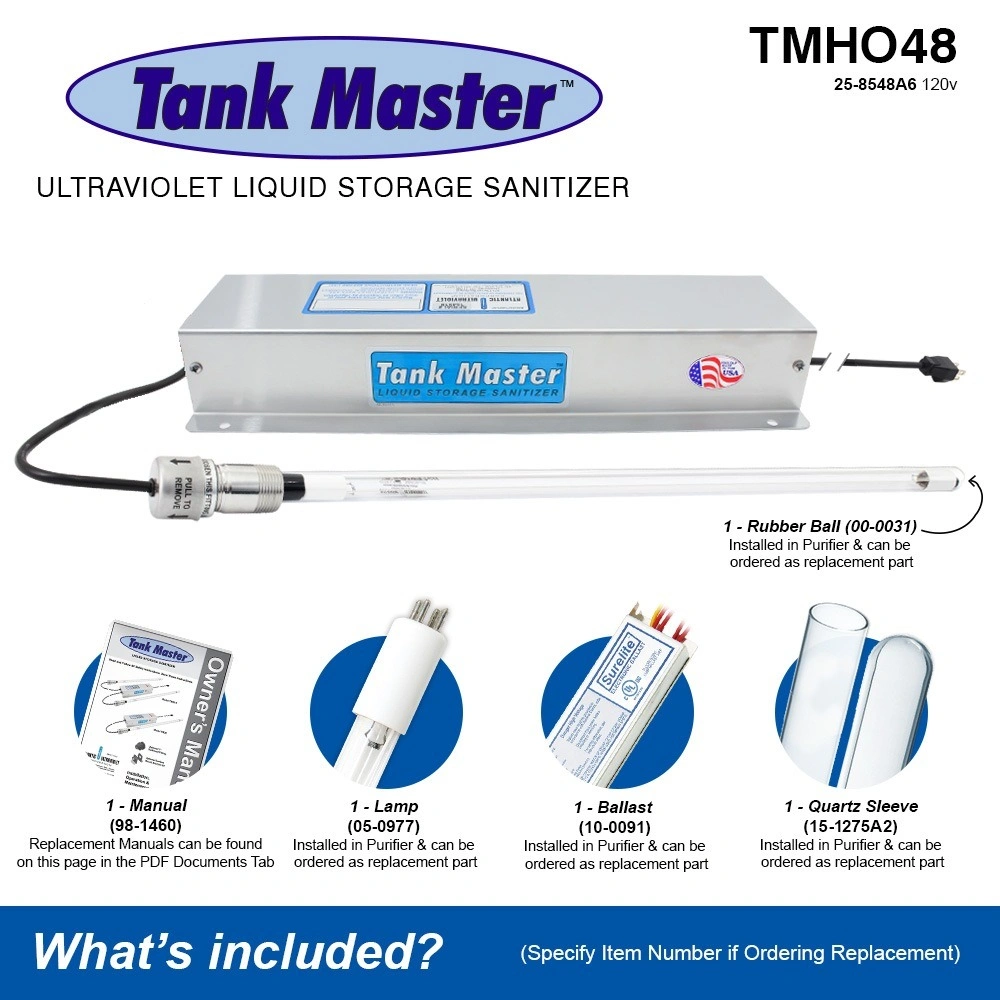

TMHO48 25-8548A6 |
120 | 46.6875" | 119W | 39W | 05-0977 | 15-1275A2 |

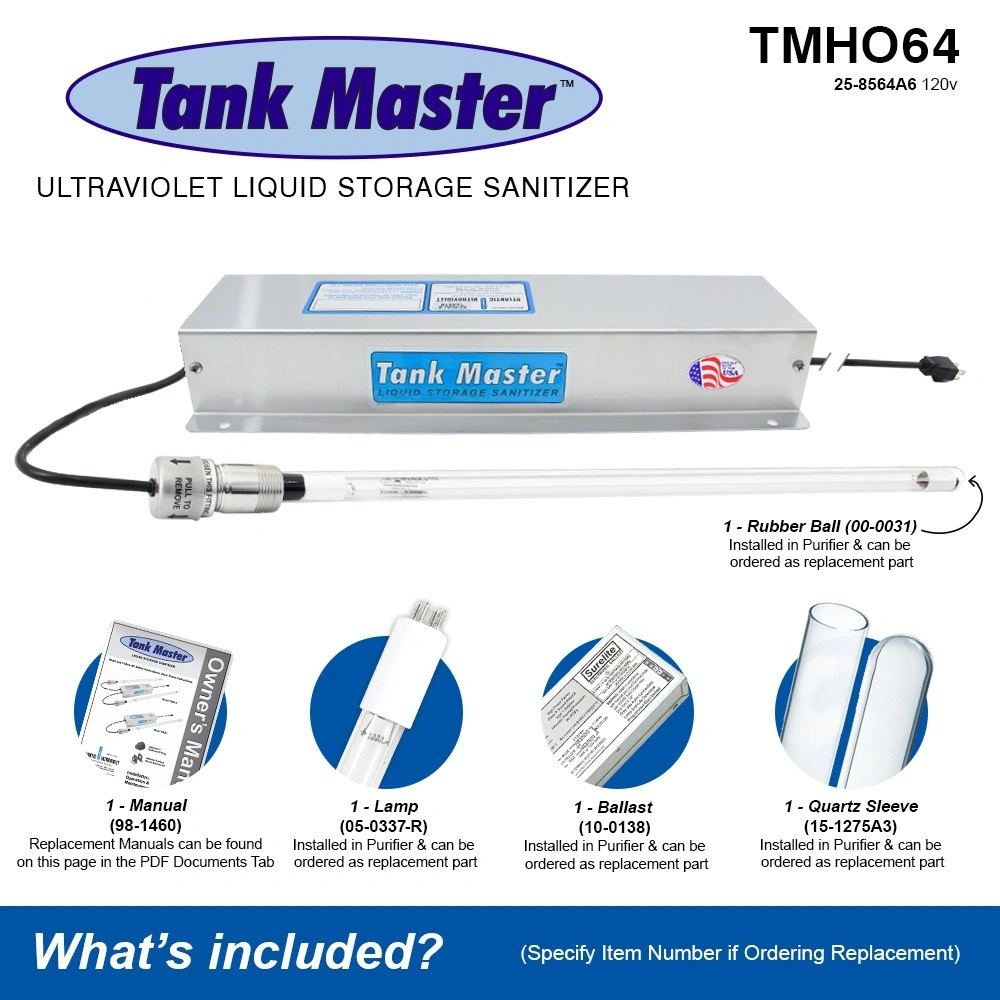

TMHO64 25-8564A6 |
120 | 62.6875" | 115W | 54W | 05-0337-R | 15-1275A3 |

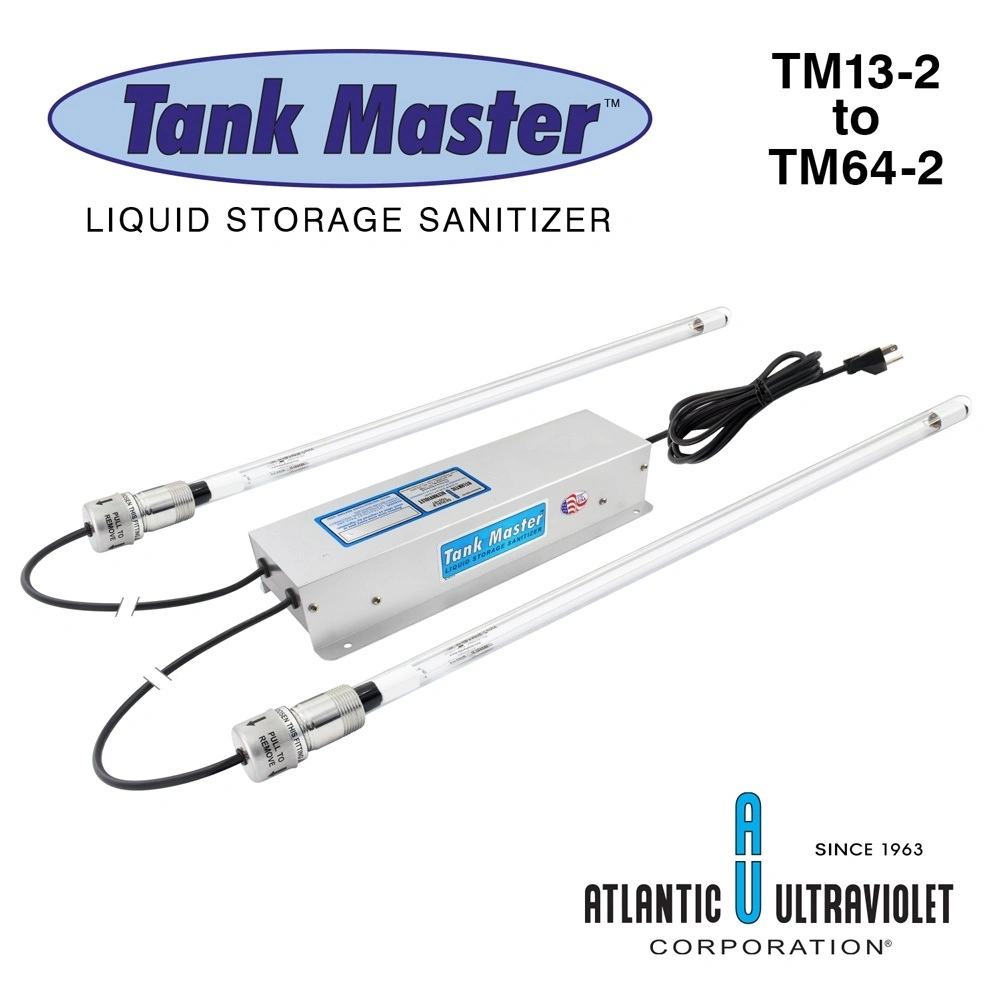

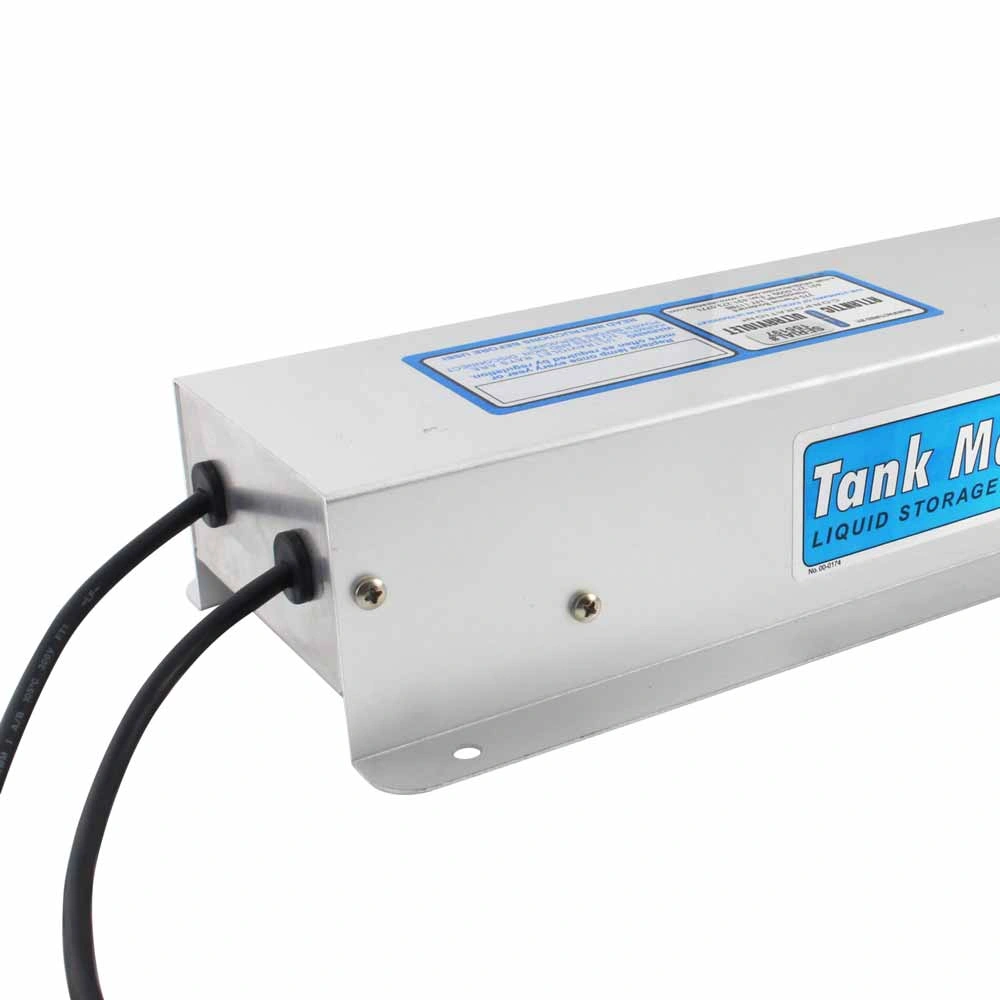

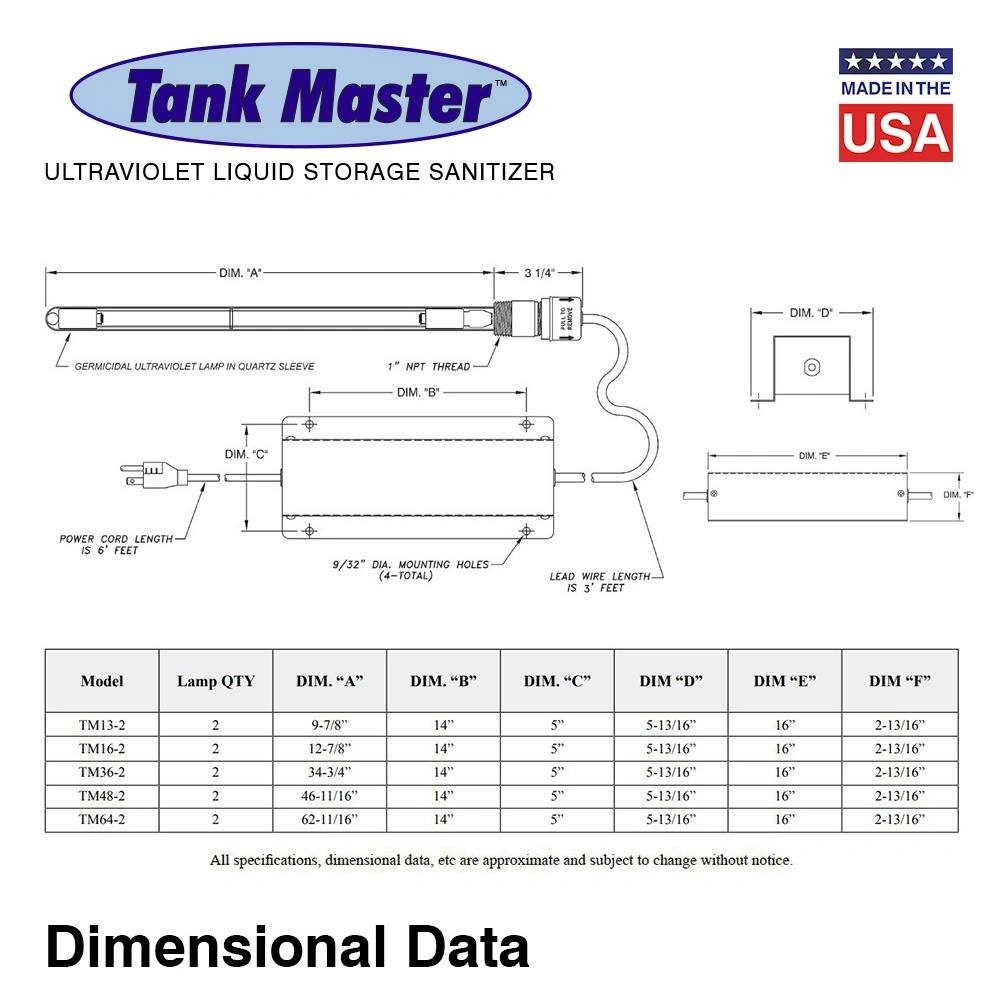

Tank Master™ UV Tank Storage Sanitizers - Two Lamp Units
Model | Voltage | Insertion Depth | Power Usage | Total UV Output | Lamp | Quartz Sleeve |

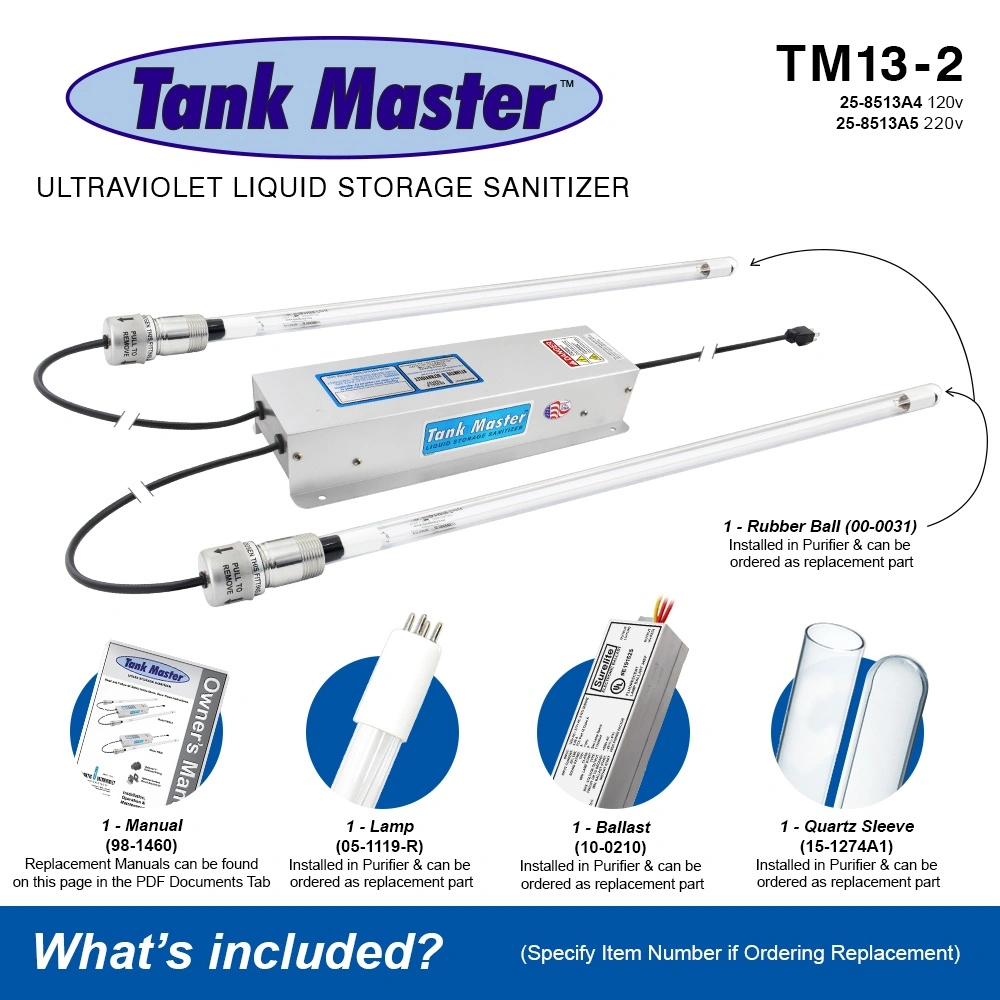

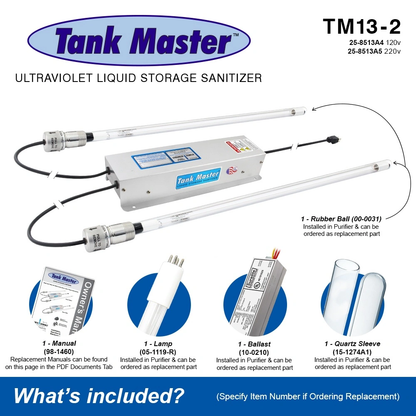

TM13-2 25-8513A4 |
120 | 9.875" | 24W | 5.4W | 05-1119-R | 15-1274A1 |
TM13-2 25-8513A5 |
220 | 9.875" | 24W | 5.4W | 05-1119-R | 15-1274A1 |

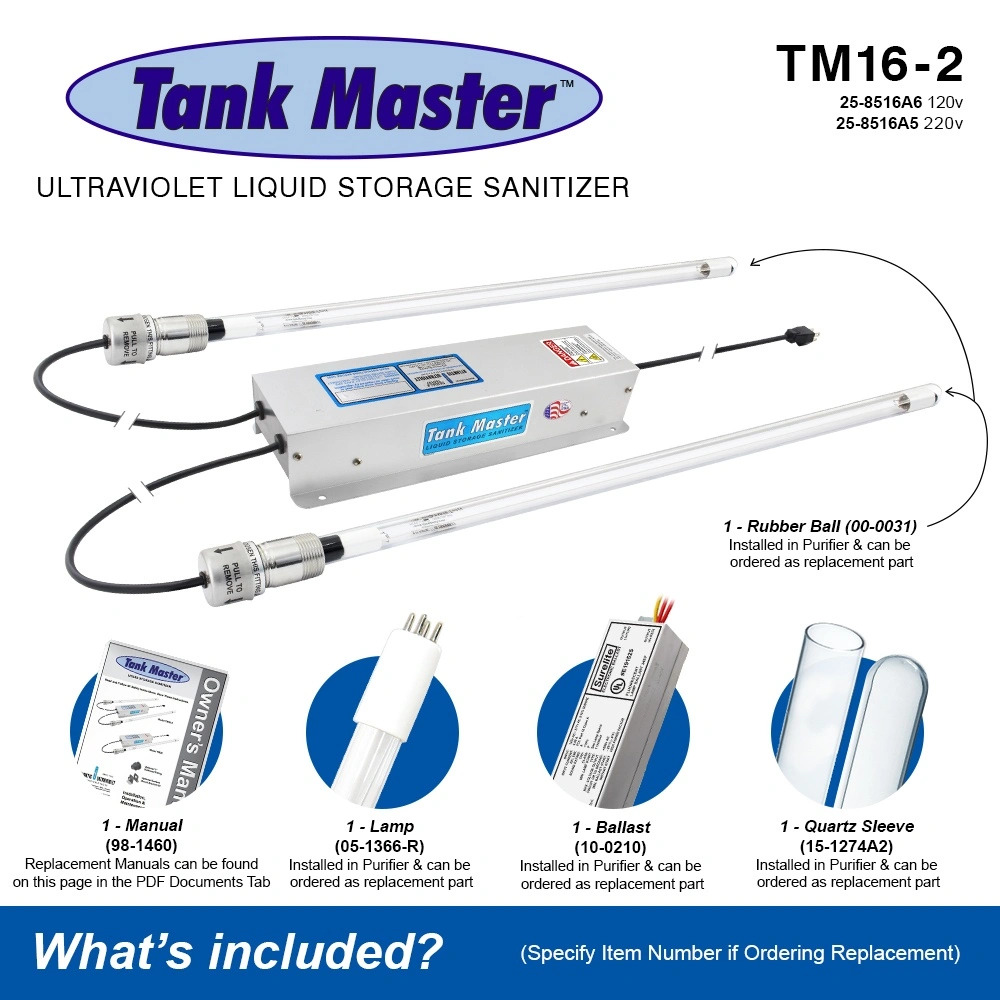

TM16-2 25-8516A6 |
120 | 12.875" | 32W | 8W | 05-1366-R | 15-1274A2 |
TM16-2 25-8516A5 |
220 | 12.875" | 32W | 8W | 05-1366-R | 15-1274A2 |

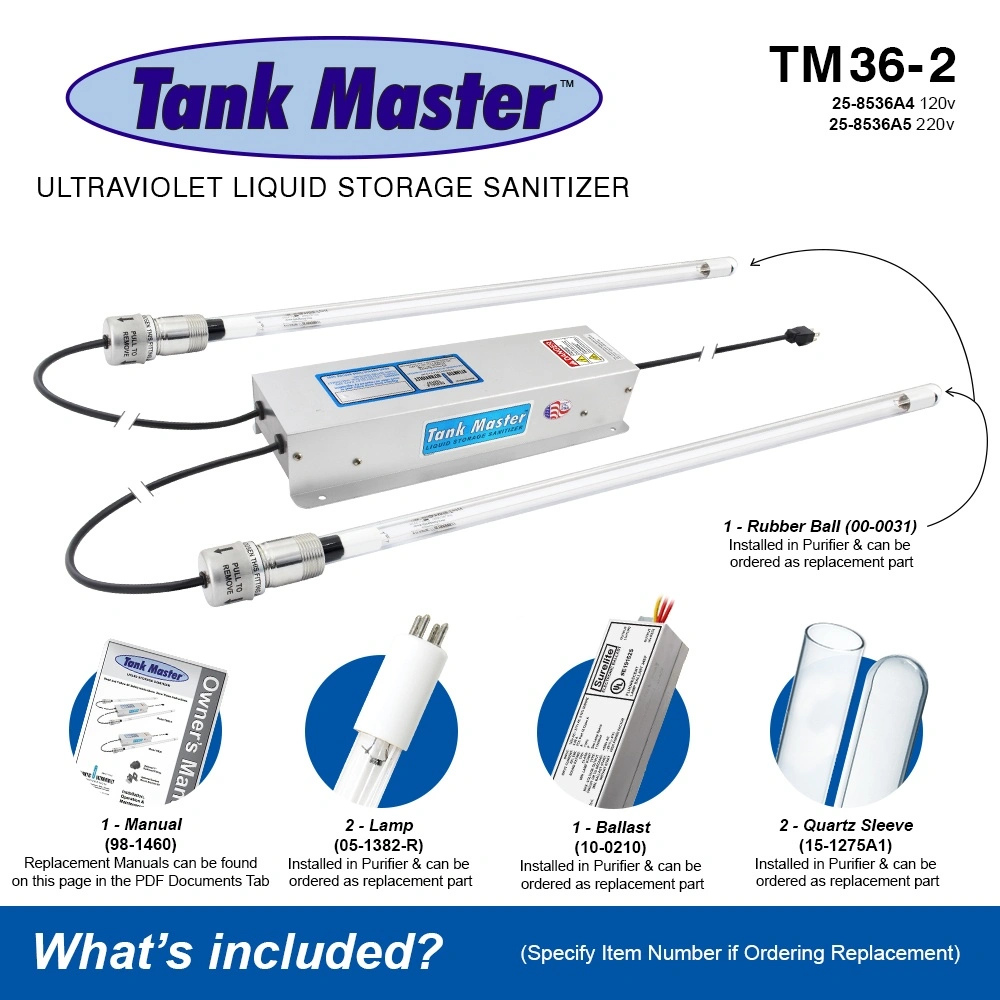

TM36-2 25-8536A4 |
120 | 34.75" | 98.4W | 30W | 05-1382-R | 15-1275A1 |
TM36-2 25-8536A5 |
230 | 34.75" | 98.4W | 30W | 05-1382-R | 15-1275A1 |
TM48-2 25-8548A4 |
120 | 46.6875" | 132W | 42W | 05-0197-R | 15-1275A2 |
TM48-2 25-8548A5 |
220 | 46.6875" | 132W | 42W | 05-0197-R | 15-1275A2 |

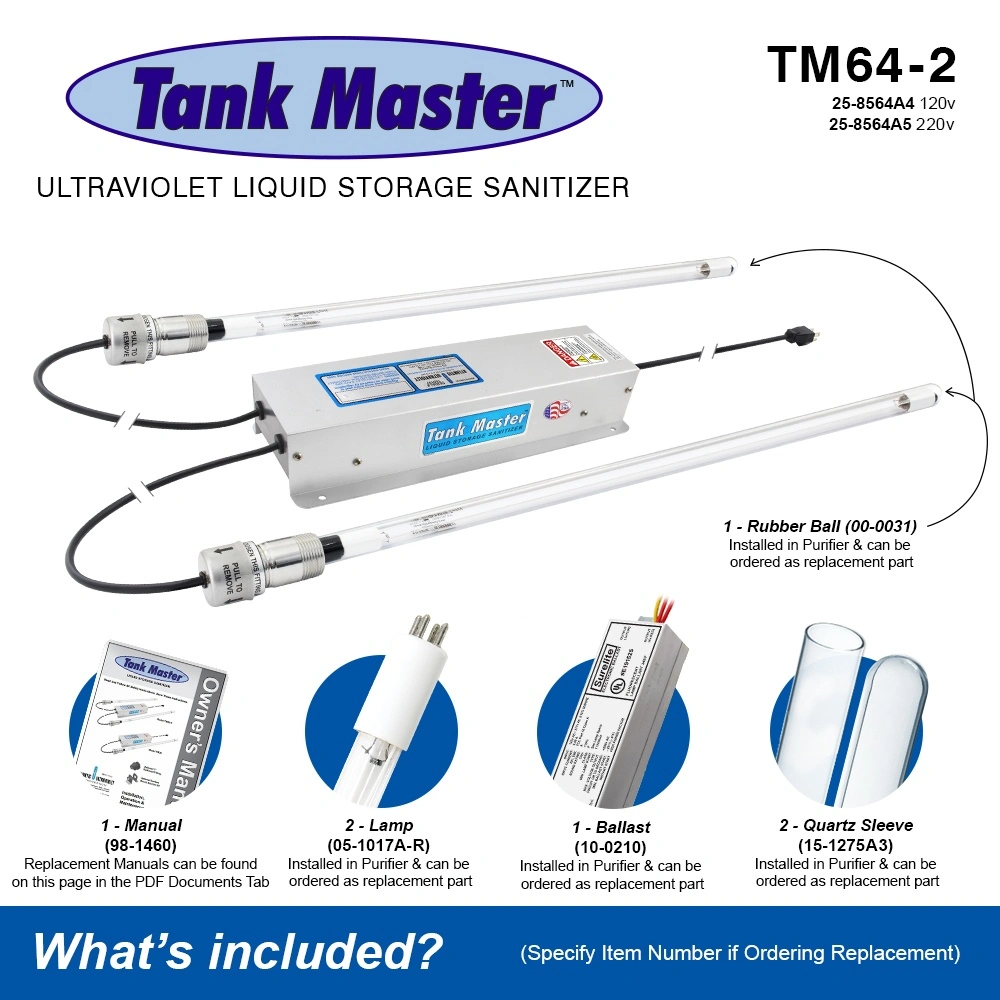

TM64-2 25-8564A4 |
120 | 62.6875" | 188W | 66W | 05-1017A-R | 15-1275A3 |
TM64-2 25-8564A5 |
220 | 62.6875" | 188W | 66W | 05-1017A-R | 15-1275A3 |
