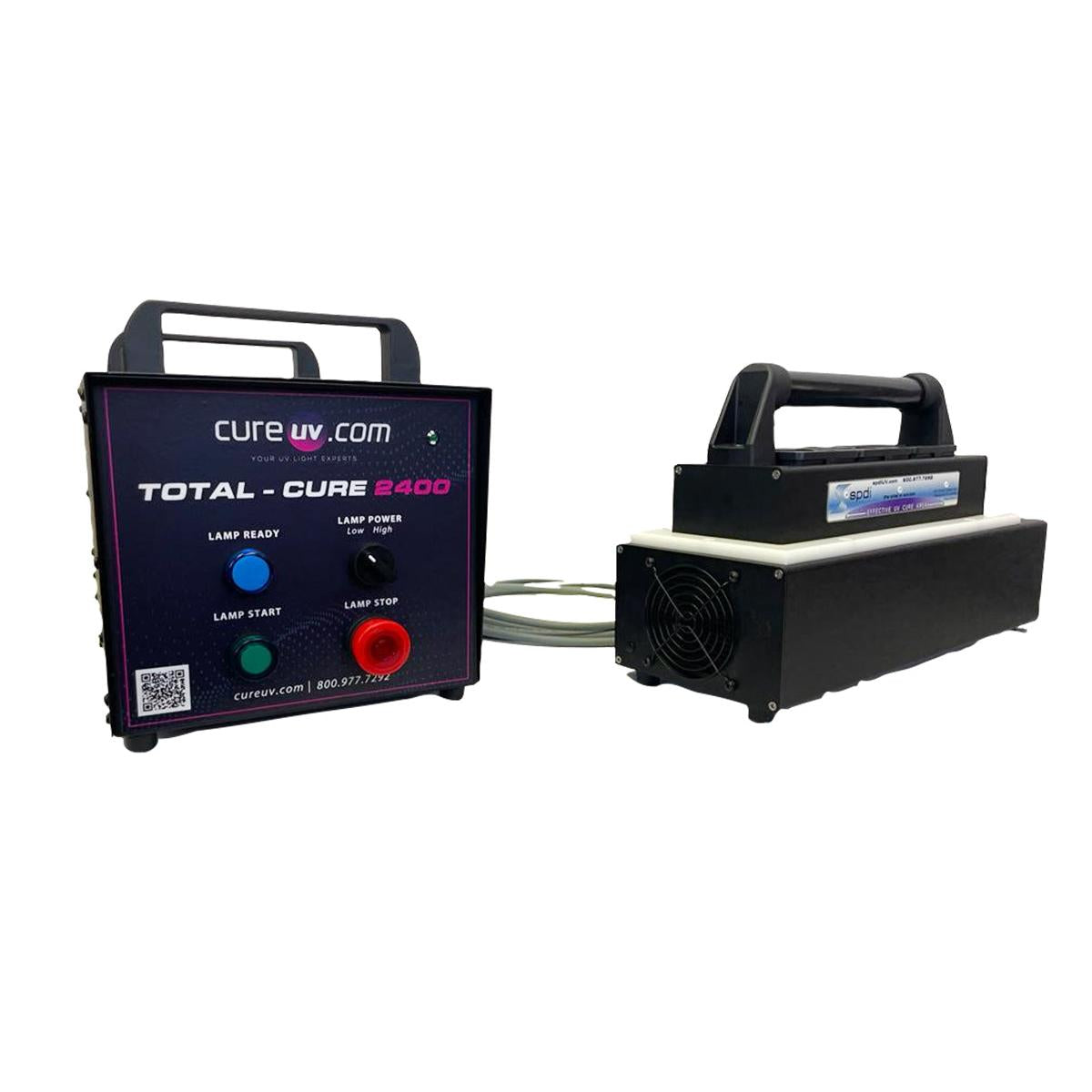

CureUV Total-Cure 2400 UV Curing System

When you absolutely, positively need it to UV cure perfectly all the way through.

Our Total-Cure benchtop UV system is the most powerful handheld machine in the industry. With a maximum effective output beyond anything in the field and a 6-inch cure width. This unit is ideal for heavy industrial production.

With its simple yet high-tech design, it can handle a wide variety of curing applications, requiring virtually no learning curve or setup time. This system can be run all day every day for years and function just as well as when it was first purchased. It is made to take the daily heavy-duty use of a production environment. If you want the best 220 volt UV Curing System in the industry, look no further. If you, however, would like a 120 volt system, you can check out our 1100 watt UV Curing System.

Features:

• Power: with 2400 watts, there is no unit in the industry that is more powerful. This allows your facility to increase the speed of production to the highest levels.
• Intensity: with over 1250 mW/cm² of intensity, this system will cure virtually any UV coating in existence.
• Robustness: this system is designed to be used, whether mounted or in handheld configuration day in, day out for years to come. Whether you are running the system for a couple of hours a day or for three 8 hour shifts, 7 days a week, it will cure the coatings perfectly every time.
• Ergonomics: the lightweight and compact irradiator gives the user the freedom to cure even the most demanding applications.
• Uniform Power Delivery: All CureUV Total-Cure systems are thoroughly tested for uniform power delivery. Lesser systems with uneven UV output lead to warped or unevenly cured surfaces.
• Smart Nesting: Whenever you are not using the handheld irradiator, simply place it in the nest and it automatically goes into standby mode. This not only lowers your power consumption but elongates bulb life and reduces any safety concern.
• Thermal Control: The built-in thermal controls keep the unit at an optimal temperature at all times to 1) maximize UV curing energy, 2) extend bulb life, 3) prevent excess heat from warping your finished surfaces, and 4) prevent unnecessary heat from reaching the operator.
• Made in the USA : Unlike our competitors, we still do all of our design, engineering, and manufacturing right in our Jacksonville, FL headquarters.
• Industry Leading Warranty: Our US production allows us to ensure that our UV systems meet the highest quality standards and that is why we can so easily offer a 2 year limited warranty right out of the box. Whether you purchased our system 1, 5, or even 10 years ago. We stand by our systems.

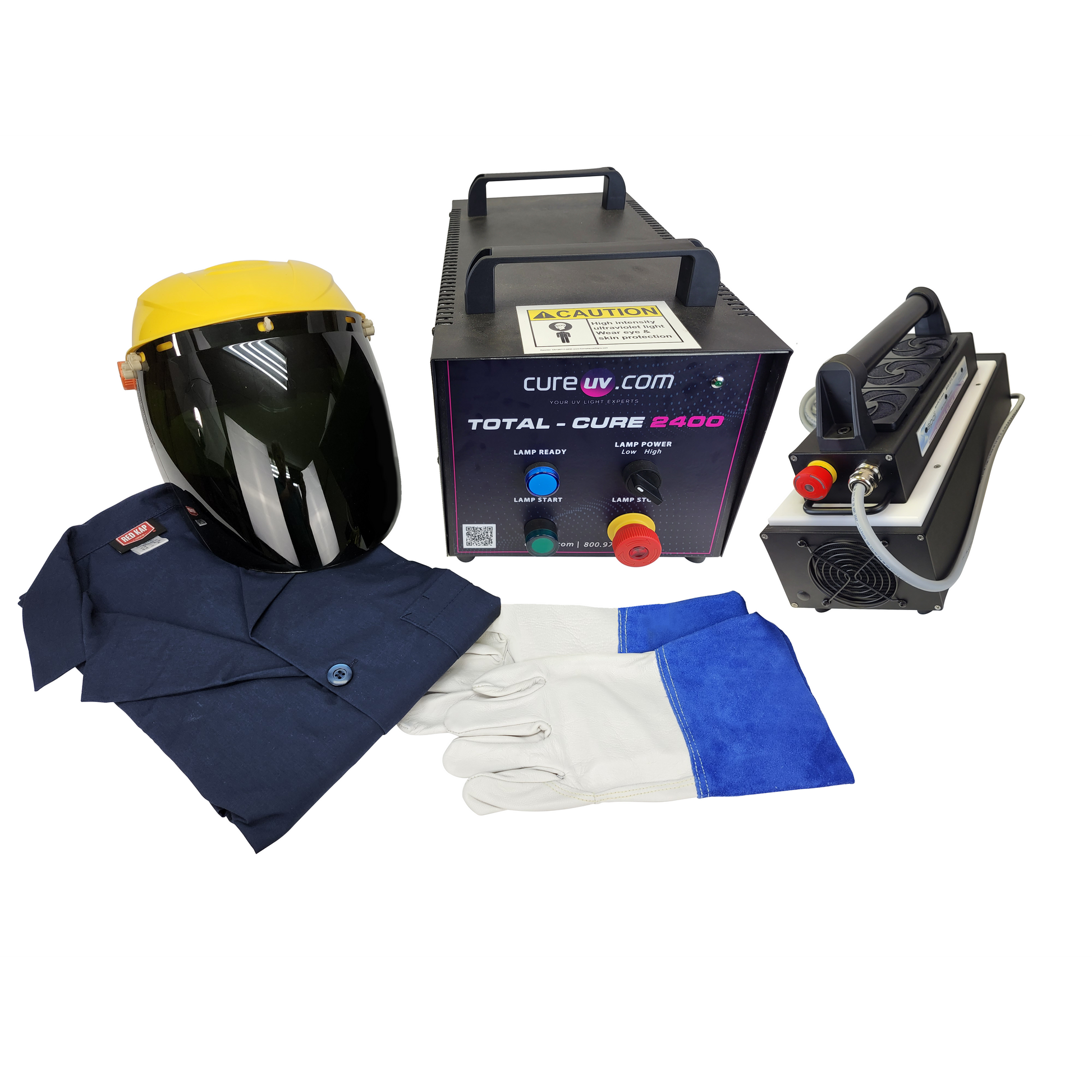

• PPE Safety Kit Included: All Total-Cure systems come with the necessary Personal Protection Equipment to operate them safely. This includes, deer-skin gloves, shop coat, and UV face shield.

Specifications:

• Bulb: Mercury 365 nm
• UVA Intensity: at 1 inch from Light - 1250 mw/cm²
• UVA Intensity: at 3 Inches from Light - 954 mw/cm²

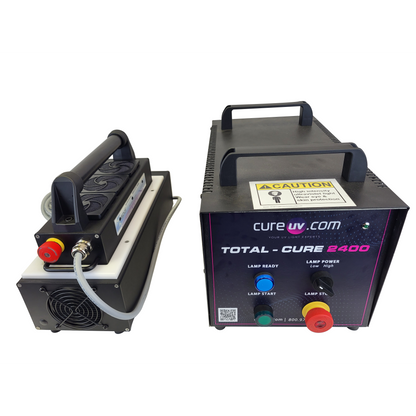

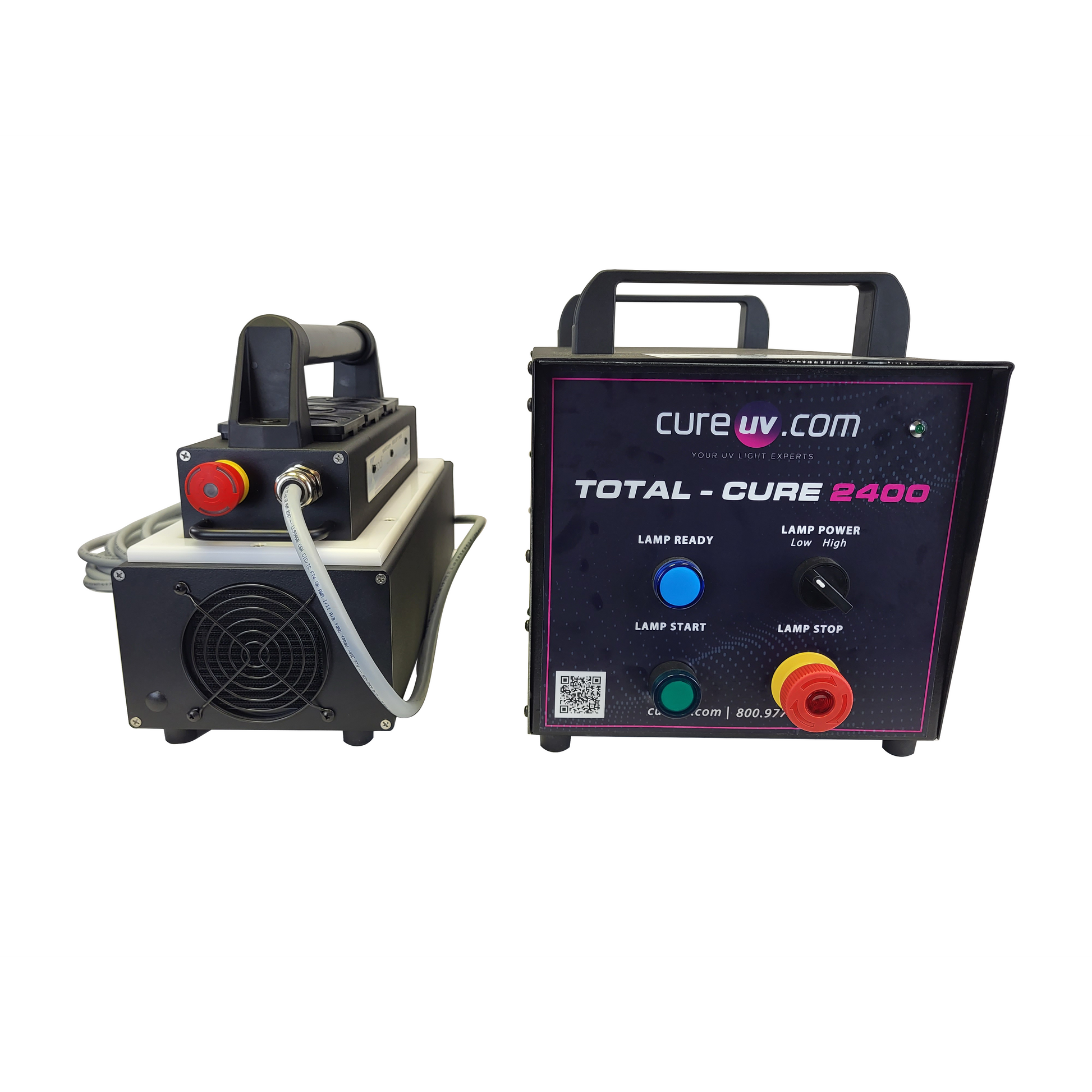

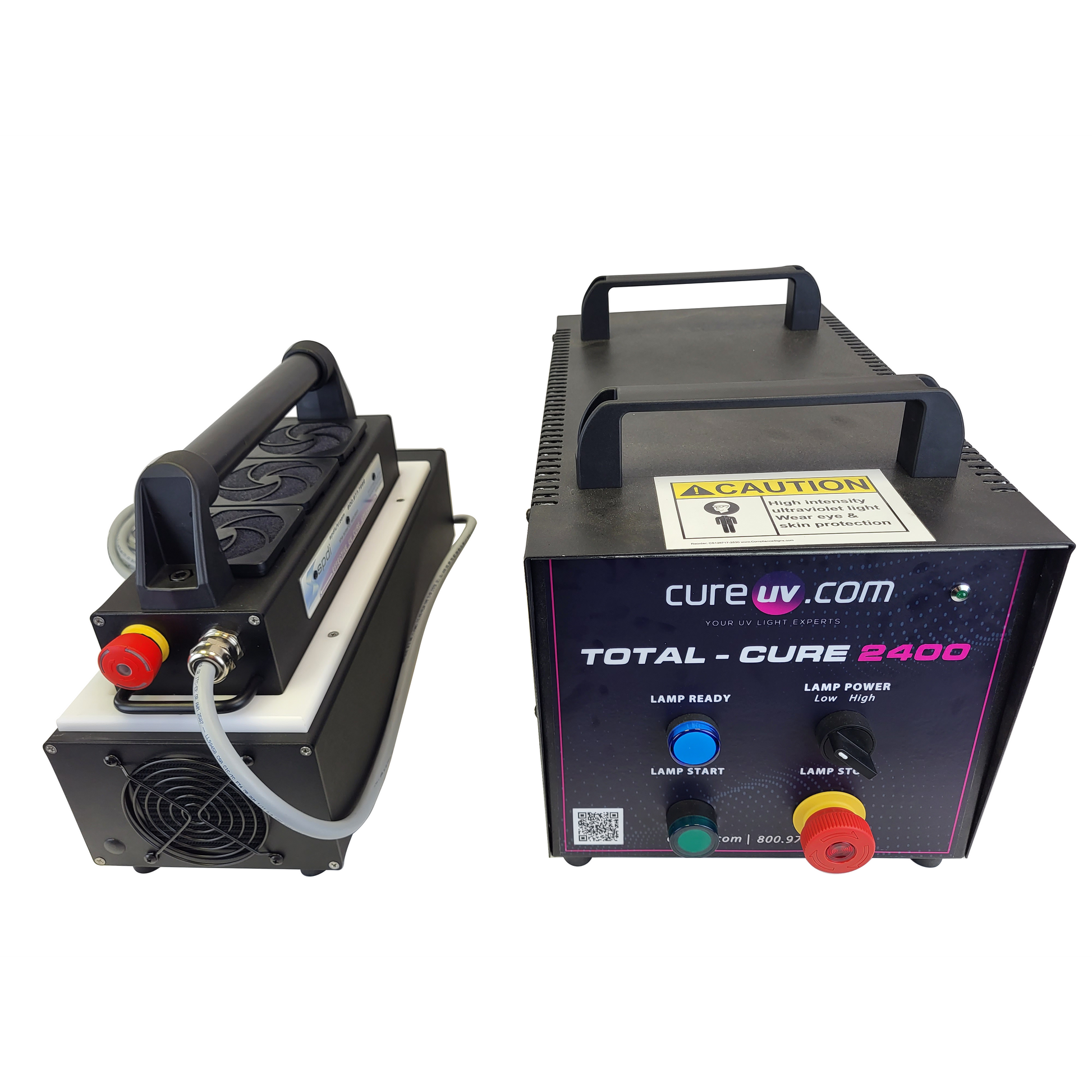

The compact package allows permanent mounting in fixed locations or to be transported if required. The unit also features a convenient nesting station, which provides safe placement for the UV cure irradiator head during standby operation.

CureUV's knowledgeable technical support staff is dedicated to help with your specific requirements. If you have questions, call and you will speak directly to an Applications Expert with extensive product knowledge and hands-on expertise

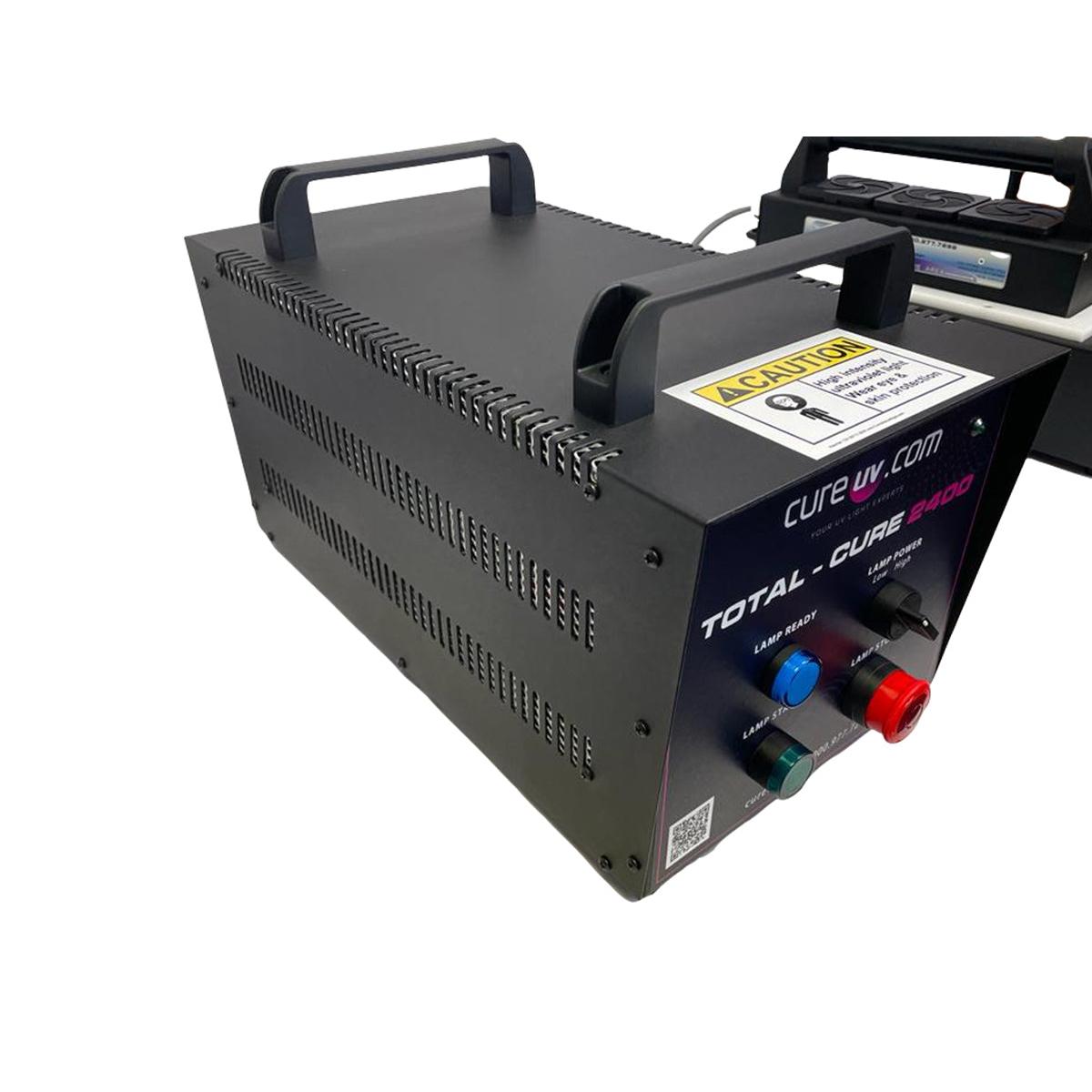

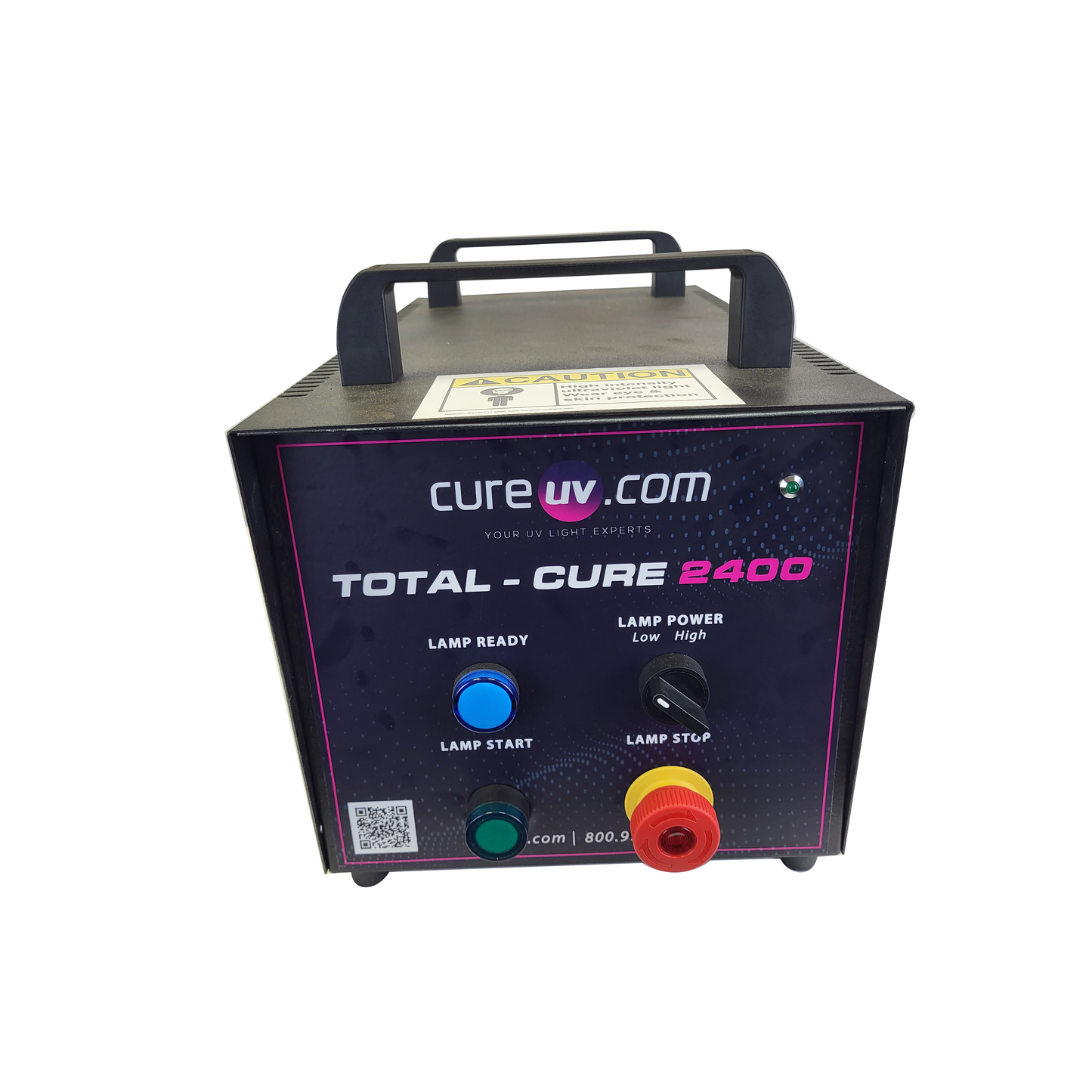

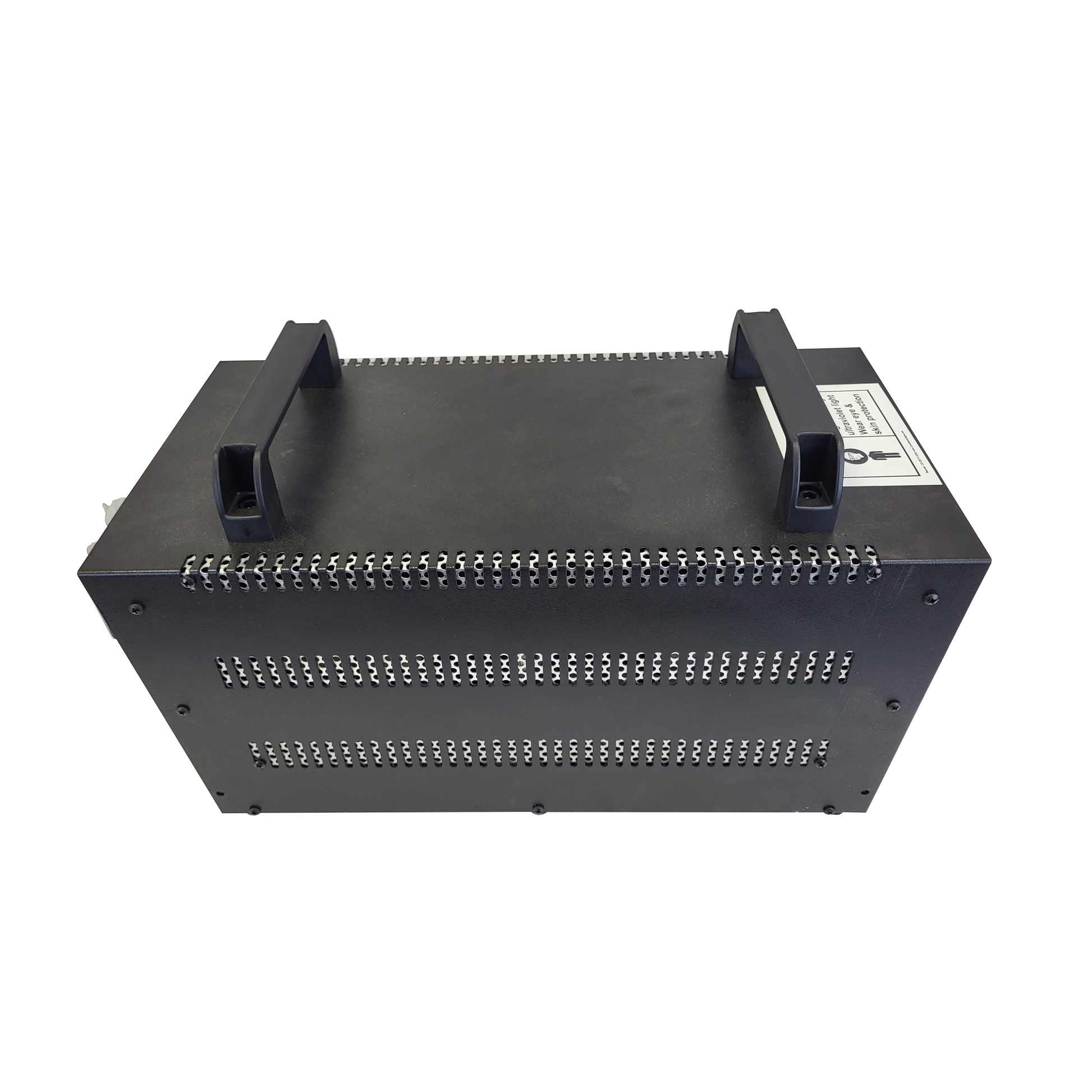

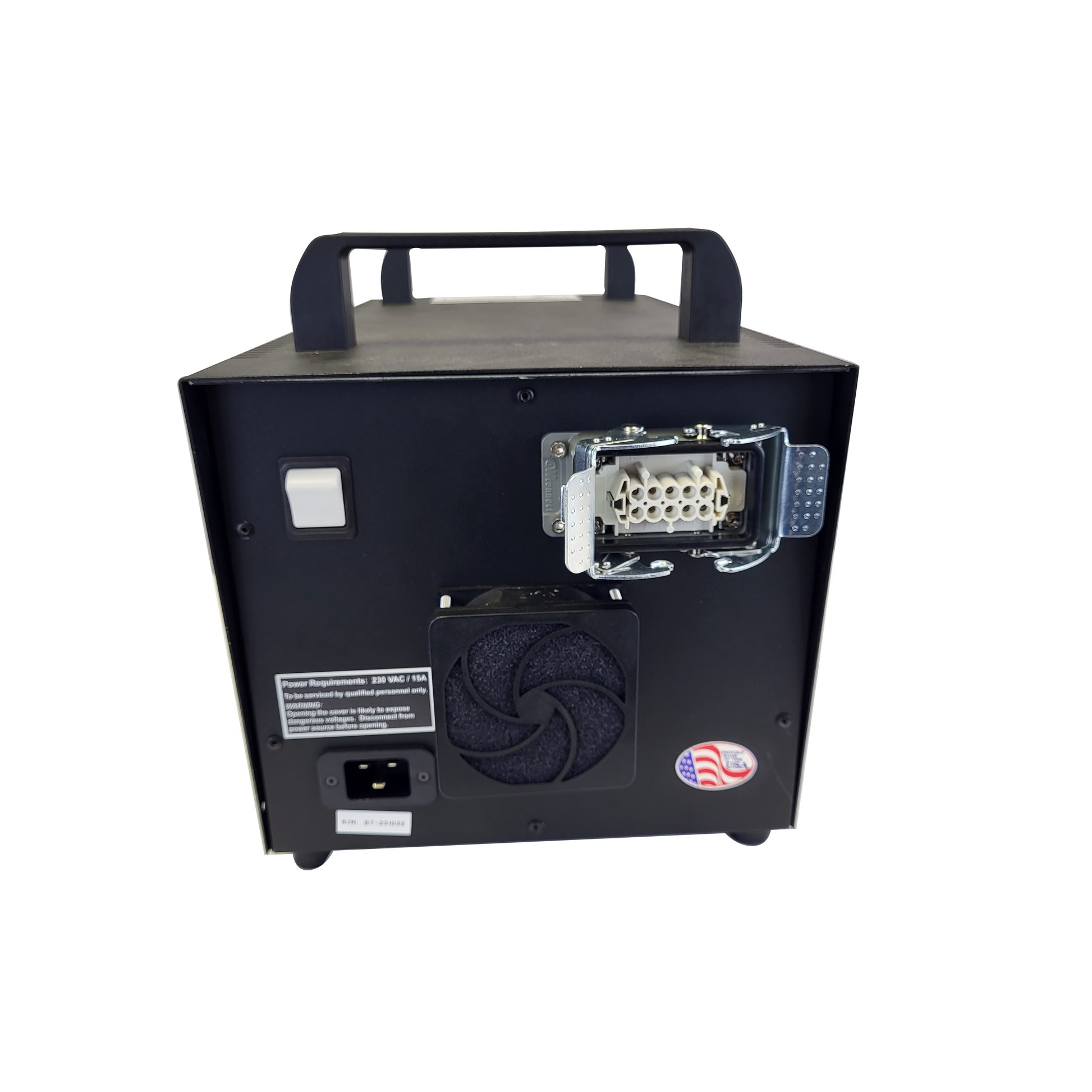

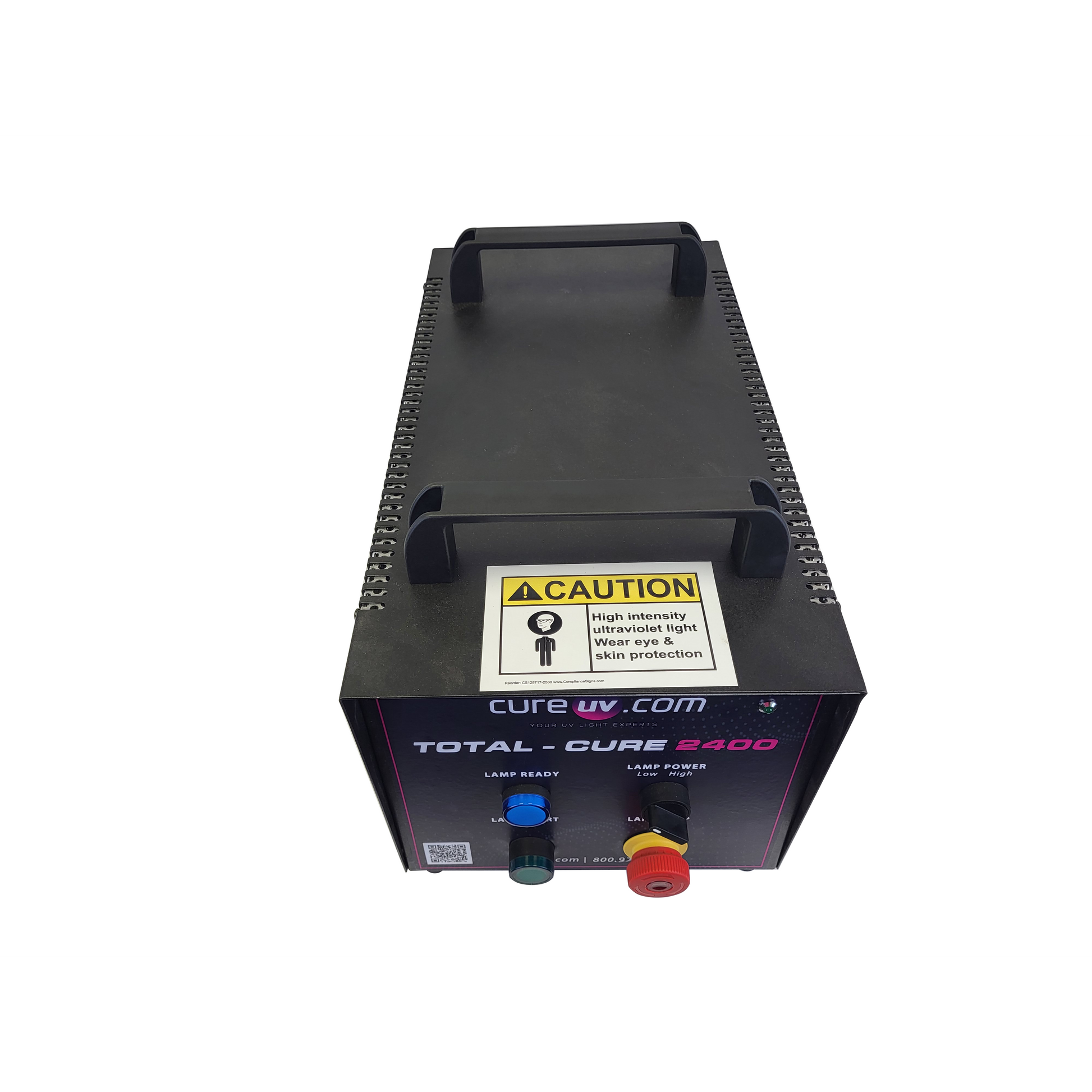

Power Supply:

• Weight - 59lbs
• Dimensions - Width 10.13" x Depth 19.50" x Height 9.50"
• Power Requirements - 208-240V, 60Hz, 15A Service

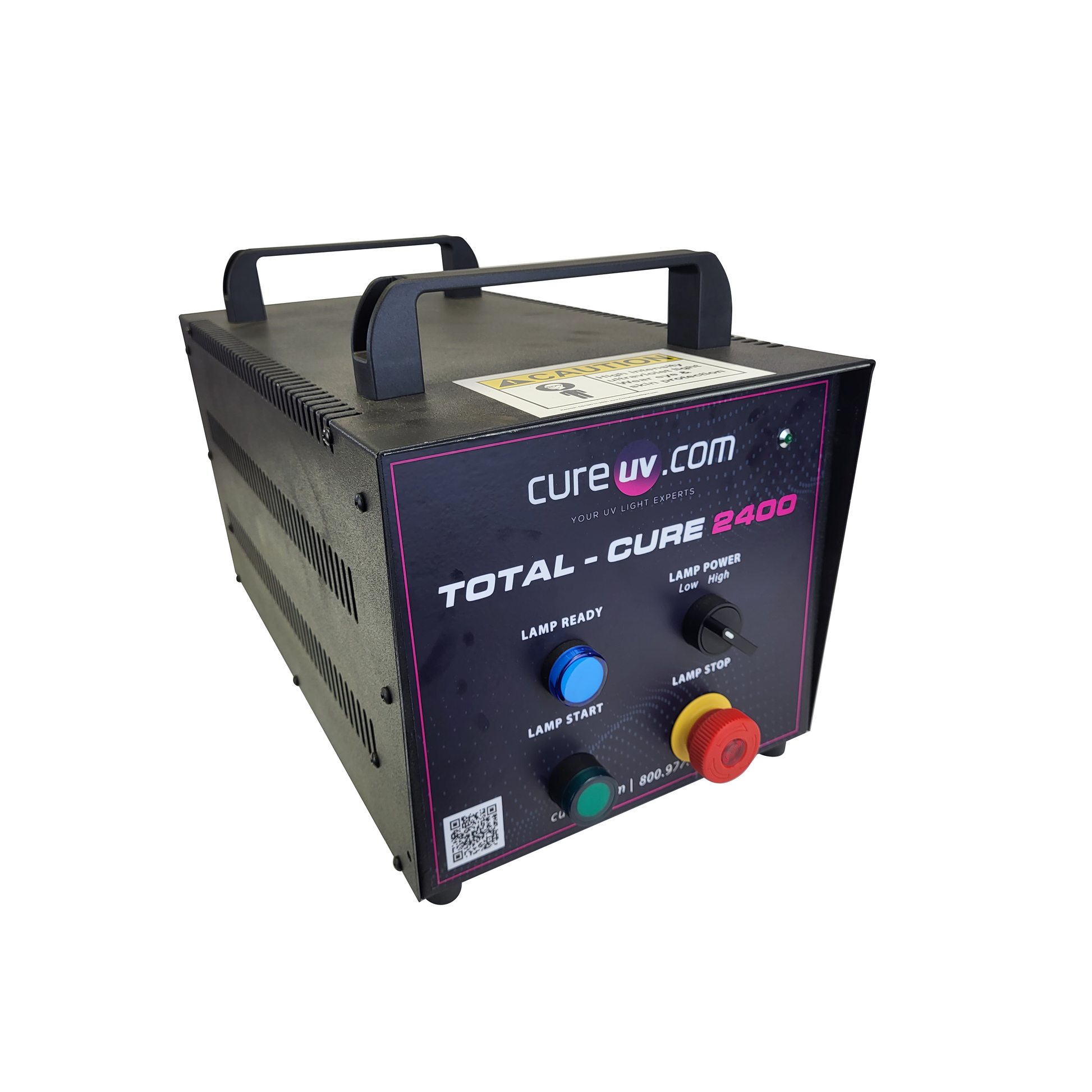

• Main Power and Lamp on/off control
• System control, power Hi / Low, E-Stop
• Integrated cooling
• 10' (foot) power cord
• 20' (foot) irradiator cord
• Molded plastic handles for portability
• 6 non-marking, non-skid feet

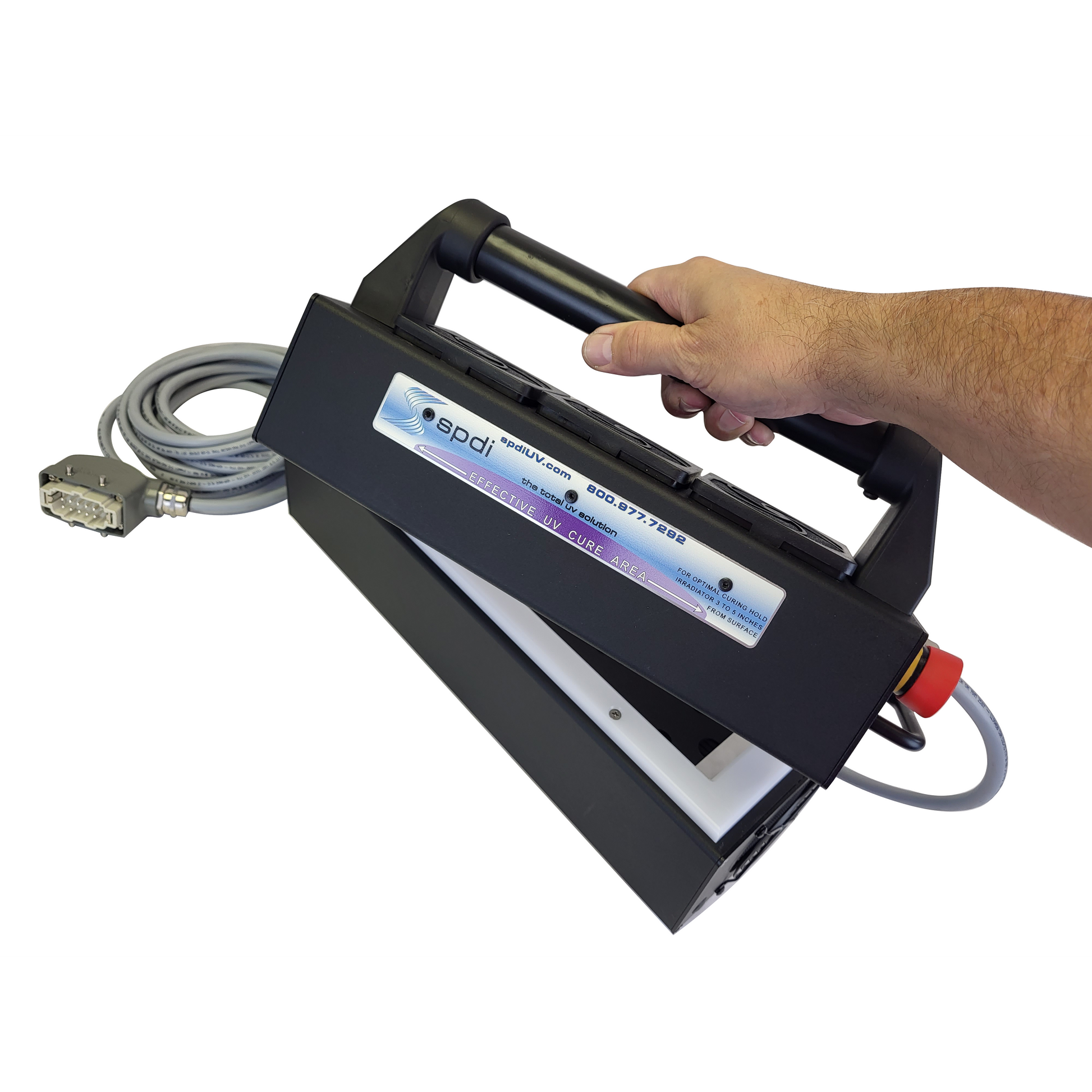

Handheld UV Irradiator:

• Weight - 5lb
• Dimensions - Length 13.71" x Width 4.14" x Height 6.56"
• Ergonomic handle
• 3 cooling fans

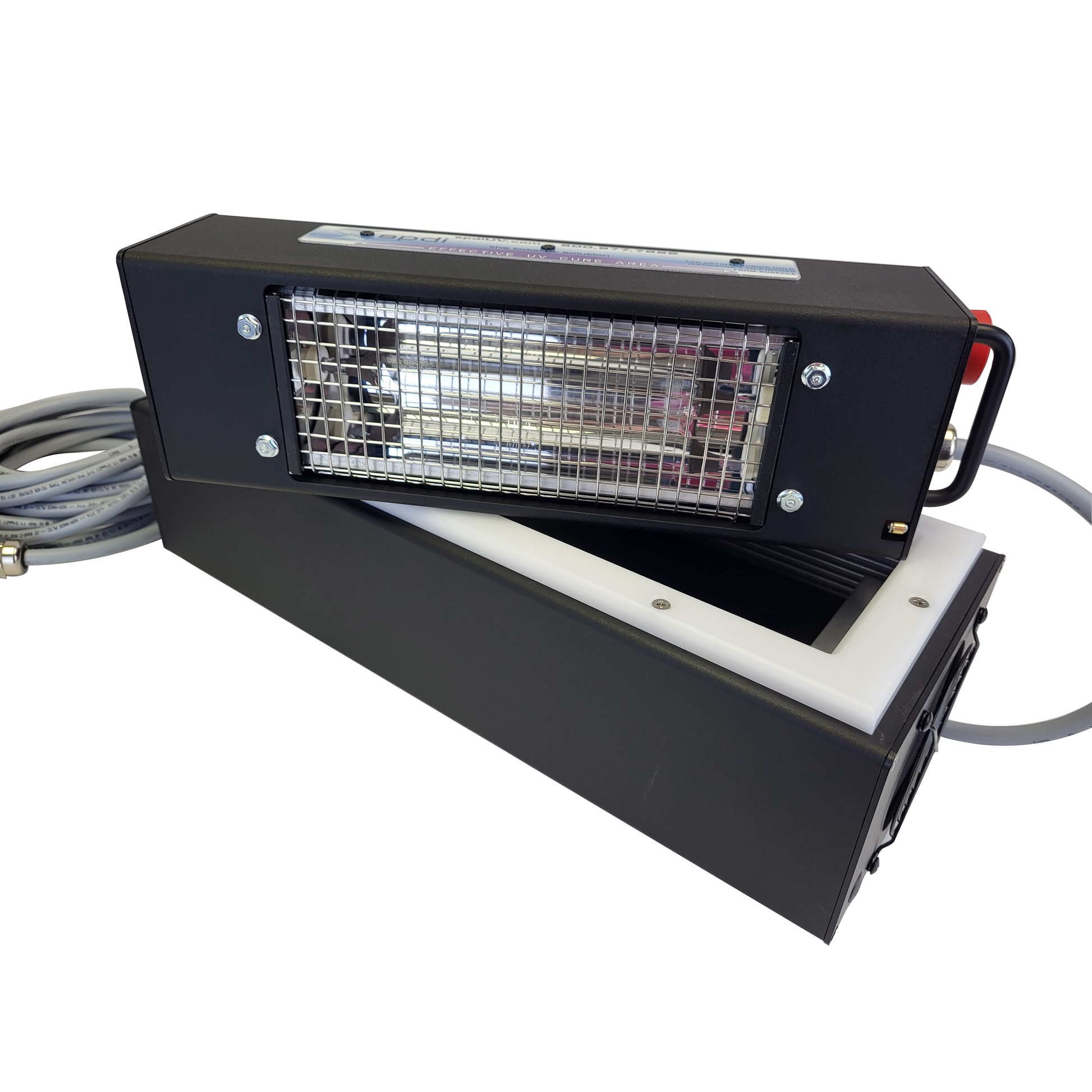

• Easy change UV lamp and Reflector
• E-Stop (Turns off lamp, but not fans)
• Standby power safety switch (activated when placed in nest)

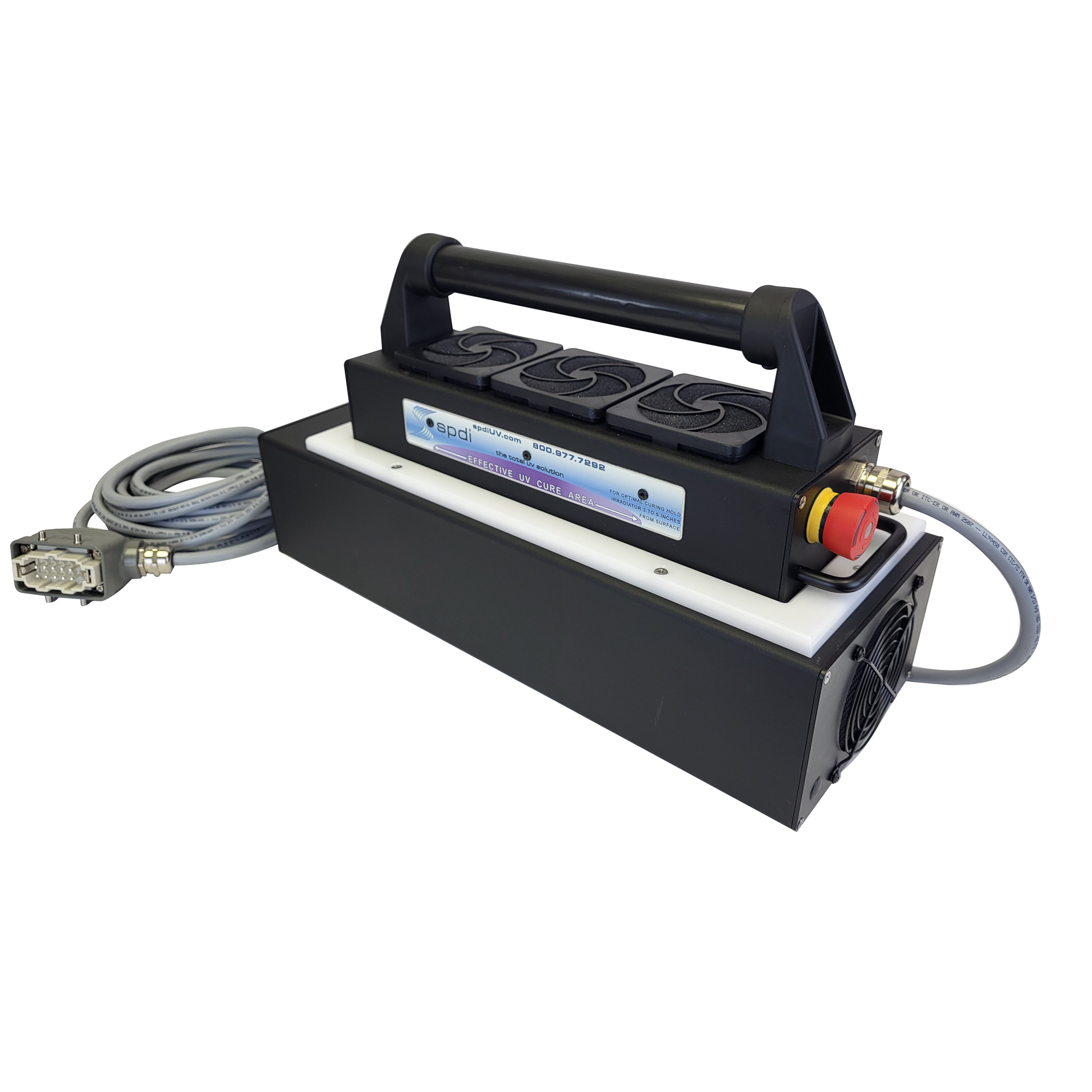

Stand-by Nest:

• Weight - 9lbs
• Dimensions - Length 18.00" x Width 6.50" x Height 4.65"
• Power Requirements - 110V, 60Hz
• Integrated cooling fan
• 4 non-marking, non-skid feet
• Power Pack for Cooling Nest

Power Pack for Cooling Nest Available Separately

Typical Applications:

• UV Adhesives
• UV Finishes
• UV Clear Coats
• UV Paint
• UV Ink
• UV Varnish
• Creating Photo-Initiated Reactions for Lab Use

A note on spare bulbs:

It is always a good idea to have a spare bulb with any curing system in case of breakage or natural degradation. Having one can save you from stopping production while we ship you a new replacement bulb. For this reason, we are offering 50% off replacement bulbs when you initially purchase your system. It's our way of rewarding the prepared. Just add the spare bulb to the cart or mention this promotion to your account manager and we will do the rest.

Technical Data Sheet:

System Manual:

1-Year Warranty:

UV Finish Application Guidelines:

Mechanical Drawings:



Videos:

If you have any questions or are just unsure about anything give us a call at (561) 243-8442 or email us at sales@cureuv.com and we will gladly help you out.
