Ultra Dynamics - S30 UV Light Bulb for Germicidal Water Treatment

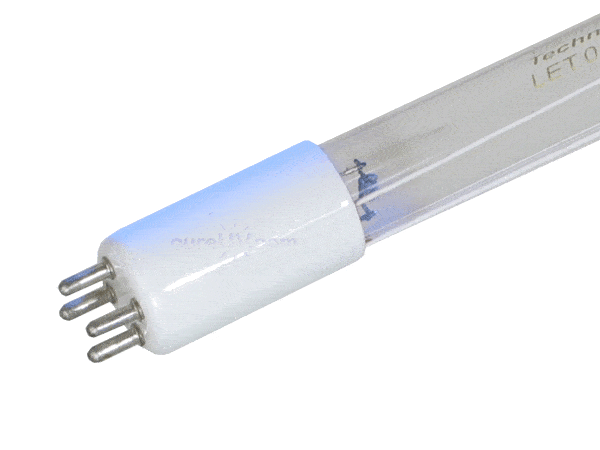

Ultra Dynamics - S30 Replacement UVC Light Bulb

Ultra-Dynamics high-quality UVC bulbs are intended to improve sanitization process efficiency. UV Lamps with the latest advances in engineering offer exceptional longevity with constant UV output over their complete lifetime.

The lamp bulb has a length of 33.18 inches and an arc length of 29.92 inches. The light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers, and sanitizers. The UVC light bulb has a rated life of 10,000 hours after which we highly recommend that you replace the light bulb for better efficiency even if it continues to emit light. The UV lamp has a peak output of 253.7 nm that acts on the DNA of the containments present in water such as yeast, cyst, virus, bacteria, and protozoa, and renders them incapable of reproducing. The energy reacts photo-chemically with the genetics of the microorganism and prevents them from reproducing.

Germs that cause harmful bacteria and microorganisms such as Vibrio cholera, influenza virus, hepatitis virus strains, and organisms causing gastroenteritis can easily be destroyed with this method of purification. Since UV filters do not alter the pH and taste or introduce chemicals in water, it is a purely physical state of change and a far better alternative to chlorination.

This UVC Light Bulb is a 100 % Equivalent Germicidal Replacement for the Ultra Dynamics #S30.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

Technical Specifications:

• Total Length: 33.18 inches (843mm)
• Arc Length: 29.92 inches (60mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 420mA
• Lamp Wattage: 41 Watts
• Output UVC Watts: 13.8 Watts
• Peak UV Output: 253.7nm
• Glass Type: Ozone
• Base Style: 4 Pin Single End
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours
