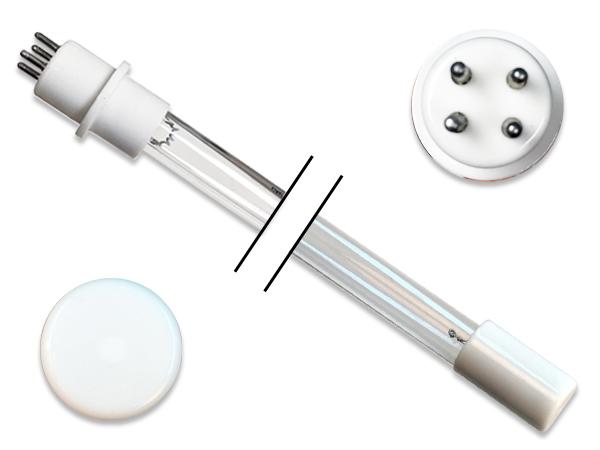

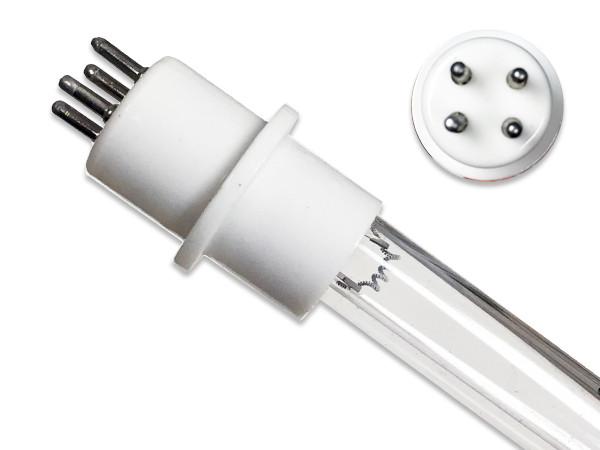

Guaranteed Replacement Ultraviolet (UV) Bulb - 4 Pin - 42 Watts - 16.14 Inch Length Lamp - Worry Free Performance for 1 Year
The Ultravation LP-PP-0056SA UV Light Bulb for Germicidal Air Treatment is a guaranteed replacement ultraviolet (UV) bulb. The 4-pin, 42 watts, 16.14-inch length lamp gives you a worry-free performance for 1 year.
The replacement germicidal bulb is best used to purify air. The fixture is high in quality and has a long lifespan with low mercury dosage to meet environmental demands. There are many people who are of the opinion that using a germicidal UVC system has a fatal effect on bacteria, molds, viruses, protozoa, and other harmful pathogens. UVC emission sanitizes the microorganisms and prevents them from multiplying.
This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.
Do I need shatterproof coating?
Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.
The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:
- HVAC systems
- Air Purifiers
- Heating & Cooling Filters
- Air Conditioners
- Food service/processing
- Beverage service/processing
- Hospitals
- Chemicals
- Oil, Gas and Power
- Pulp, paper and wood
- Electronics
- Cosmetics
- Pharmaceuticals
- Hotels
- Laboratories and more…
Technical Specifications:
-
Total Length: 16.14 inches (410mm)
-
Arc Length: 13.14 inches (334mm)
-
Lamp Quartz Diameter: 15mm
-
Operating Current: 800mA
-
Lamp Voltage: 50V
-
Lamp Wattage: 42 Watts
-
Peak UV Output: 253.7nm
-
Glass Type: Non Ozone
-
Base Style: 4 Pin Cell Base
-
Base Material: Ceramic
-
Rated Life: Up to 10,000 hours
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UV lamps listed are compatible brand UV products. We do not sell Ultravation brand UV lamps. All Ultravation brand names, trademarks and logos are property of Ultravation .
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Safety Data Sheet for CureUV Germicidal Bulb
Safety Data Sheet for CureUV Germicidal Bulb
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
