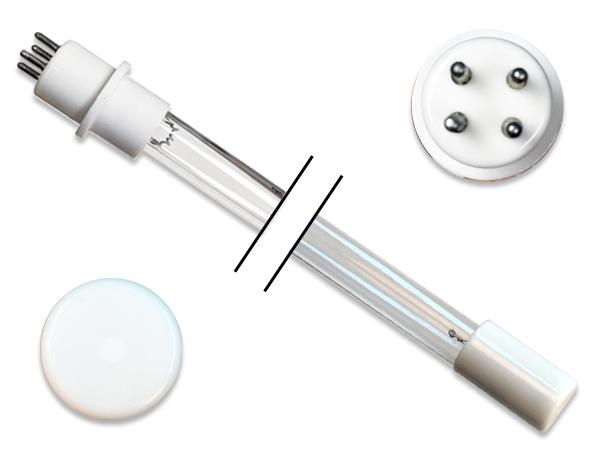

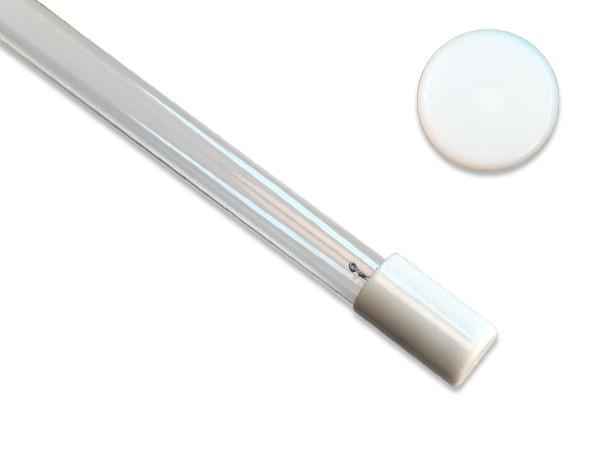

Ultravation LP-PP-0060SA UV Light Bulb for Germicidal Air Treatment

Guaranteed Replacement Ultraviolet (UV) Bulb - 4 Pin - 106 Watts - 35.98 Inch Length Lamp - Worry Free Performance for 1 Year

The Ultravation LP-PP-0060SA UV Light Bulb for Germicidal Air Treatment is a guaranteed replacement ultraviolet (UV) bulb that has 4 pin and a wattage of 106 watts. The 35.98-inch length lamp gives you a worry-free performance for 1 year.

The light bulb works as a replacement bulb for Ultravation Air treatment systems. The germicidal UV bulb enables the disinfection of microorganisms. The air inside home and office may not be cleaner than the outside air. Therefore it is essential that you improve the condition of the air you breathe. It destroys mold, mildew, yeast, protozoa, bacteria and virus. The replacement germicidal bulb in the air purifiers is easy to install and has low wattage and low maintenance.

The lamp eliminates bacteria and it is necessary that you schedule regular cleaning of the bulb and replace it annually for better efficiency. The germicidal UVC bulbs come with a wavelength of 253.7 nm which is defined as a germicidal category. The light produced by the bulb enables the destruction of bacteria, viruses, and other pathogens by deactivating their genetic material.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

Common Applications for use:

• Air Conditioners
• Air Purifiers
• Beverage Services and Processing
• Food Services and Processing
• Heating & Cooling Filters
• HVAC Systems
• Surface Disinfection

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Offices
• Ships

Technical Specifications:

• Total Length: 35.98 inches (914mm)
• Arc Length: 32.48 inches (825mm)
• Lamp Quartz Diameter: 15mm
• Operating Current: 800mA
• Lamp Voltage: 105V
• Lamp Wattage: 106 Watts
• Output UVC Watts: 26 Watts
• Output uW/cm^2 @ 1m: 242
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone

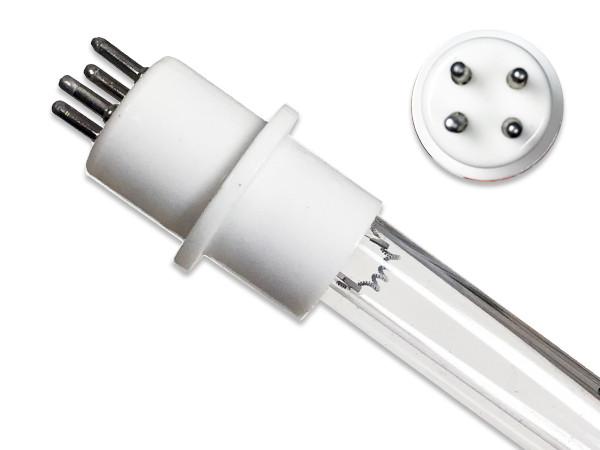

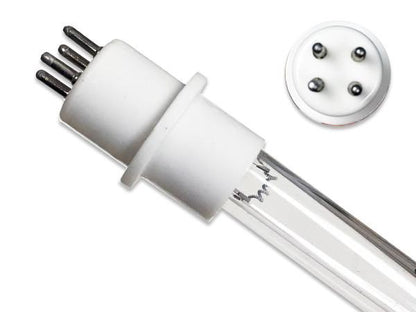

• Base Style: 4 pin cell base on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UV lamps listed are compatible brand UV products. We do not sell Ultravation brand UV lamps. All Ultravation brand names, trademarks and logos are property of Ultravation.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
