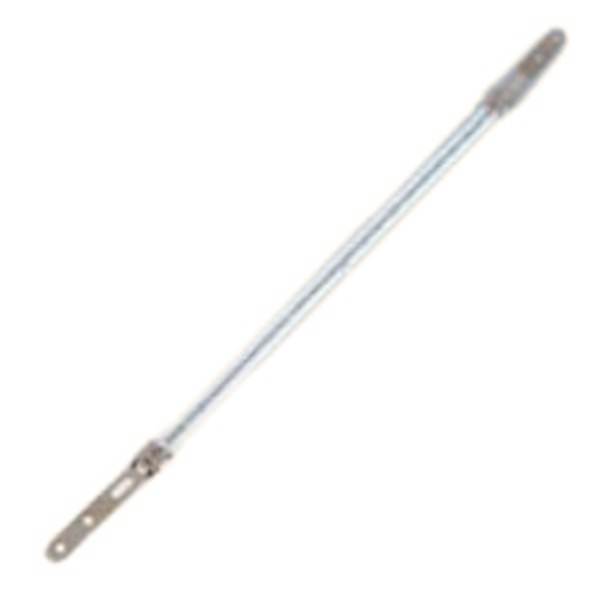

Ushio 1001320 QIH240-1000/VB IR Heater Lamp

No minimum order quantity

1000 Watt - 240 Volt - T3 Bulb Type - MCB Base - 2500K - (QIH) Quartz - Infrared - Heater

These high-efficiency lamps are able to transfer large amounts of heat while maintaining absolute controllability. Quartz tubes are best used for radiant applications that need instant on, instant off, such as heat sensitive materials that may have to linger in a heat source. USHIO’s quartz lamps are the best choice where precise high wattage density is necessary for high speed production processes while maintaining even heat controlled zones.

IR Lamp Advantages:

• High Efficiency: Up to 95% of Energy Converted to IR Radiation
• Long Life: Typically Greater Than 5,000 Hours
• Fast Response: Typically < 1 Sec. to Reach 90% Output
• Output Maintenance: Typically <10% Drop in Output Over Life
• Variable Power Control
• Reliability: High Quality Parts and Stringent Processes Used to Produce a Superior Product

SPECIFICATIONS:

• Energy Used: 1000 watts
• Average Lifetime: 5000 hours
• Volts: 240
• Bulb Type: T3
• Base Type: MCB
• Filament Type: C-6

• Length: 19.1 in
• Width: 4 in
• Color / Finish: Clear
• Color Temperature: 2,500K



Industrial IR Heater Lamp Applications:

Curing:

IR technology for curing is targeted to provide heat to specific areas where and when it is needed on demand. With the increasing popularity of powder coating curing applications, IR lamps apply even distribution of heat, resulting in polished and smooth surfaces.

Paper & Textile Drying:

For paper and textile drying infrared heater lamps are well-suited for this application. Infrared heater lamps are used to dry the outer top surfaces of the material and penetrate deep into the material. This speeds up production time and saves on energy costs.

Graphic Arts:

IR bulbs are ideal for drying ink for graphic arts and silkscreen presses when printing on surfaces such as paper or textiles. With short and medium wavelengths, with wattages ranging from 375W to 6000W and the flexibility to customize lamps, USHIO’s graphic art lamps are repeatedly chosen for their quality.

Semiconductor:

Precise temperature and heating zones are required in the semiconductor industry. The  IR lamps provide a precisely controlled IR source that can meet the stringent needs of the semiconductor industry.
