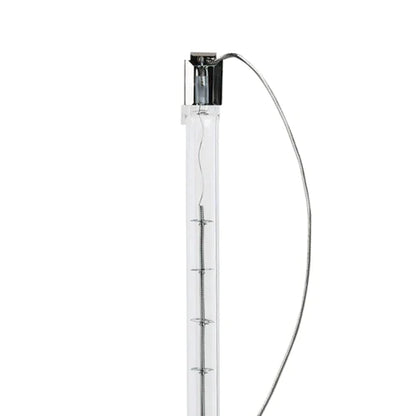

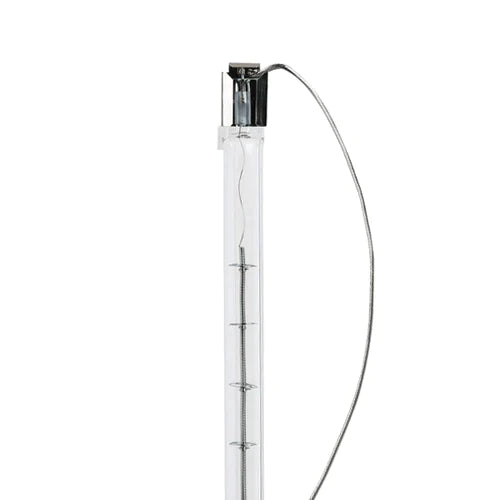

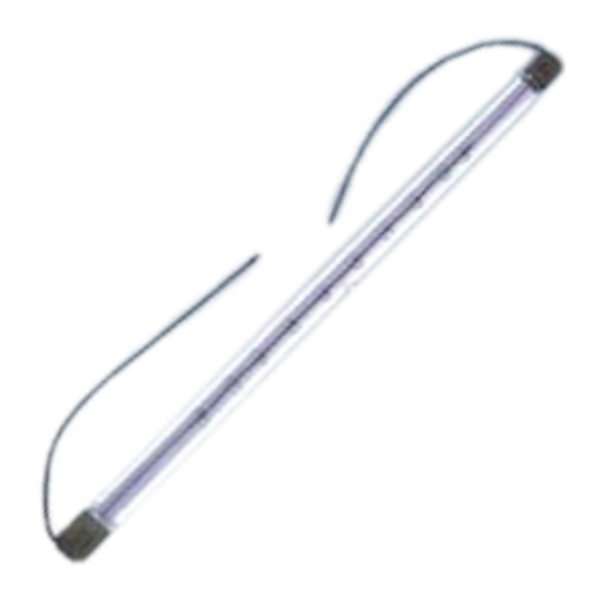

Ushio 1001339 QIH240-2000/S IR Heater Lamp

No minimum order quantity

1600 Watt - 240 Volt - T3 Bulb Type - MS Base - 2500K - (QIH) Quartz - Infrared - Heater

These high-efficiency lamps are able to transfer large amounts of heat while maintaining absolute controllability. Quartz tubes are best used for radiant applications that need instant on, instant off, such as heat sensitive materials that may have to linger in a heat source. USHIO’s quartz lamps are the best choice where precise high wattage density is necessary for high speed production processes while maintaining even heat controlled zones.

IR Lamp Advantages:

• High Efficiency: Up to 95% of Energy Converted to IR Radiation
• Long Life: Typically Greater Than 5,000 Hours
• Fast Response: Typically < 1 Sec. to Reach 90% Output
• Output Maintenance: Typically <10% Drop in Output Over Life
• Variable Power Control
• Reliability: High Quality Parts and Stringent Processes Used to Produce a Superior Product

SPECIFICATIONS:

• Energy Used: 1600 watts
• Average Lifetime: 5000 hours
• Volts: 240
• Bulb Type: T3
• Base Type: MS
• Filament Type: C-6

• Length: 11.9 in
• Color / Finish: Warm White
• Width: 4 in
• Color Temperature: 2,500K




Industrial IR Heater Lamp Applications:

Scientific & Medical:

The controlled heating available with the IR heater lamps allow these lamps to be used to accurately and instantaneously control the temperature of the surrounding environment. USHIO provides an array of different power levels, different geometries and a wide range of color temperatures to fit your specific heating needs. The IR lamps are used in applications such as infant environment warming, heat therapy for aching muscles, spa and sauna heating and environmental control for laboratory experiments.

Graphic Arts:

IR bulbs are ideal for drying ink for graphic arts and silkscreen presses when printing on surfaces such as paper or textiles. With short and medium wavelengths, with wattages ranging from 375W to 6000W and the flexibility to customize lamps, USHIO’s graphic art lamps are repeatedly chosen for their quality.

Paint & Ink Drying:

This minimizes air movement, streaking, and dust particles adhering to the paint and ink surfaces. Pretreatment and primer coatings can easily be dried to achieve a much faster production process time. Infrared heating for paint applications are most commonly used on aluminum, metal, steel, and wood surfaces. Infrared heating of ink is mostly used for paper, cardboard, and textiles; as well as maintaining a consistent temperature for the ink cartridges.

Semiconductor:

Precise temperature and heating zones are required in the semiconductor industry. The  IR lamps provide a precisely controlled IR source that can meet the stringent needs of the semiconductor industry.
