UV Doctor 1175 UVC Bulb - CureUV Brand

2 Pin Winged on a Single End - 130 Watt Germicidal Water Treatment Bulb - High Output

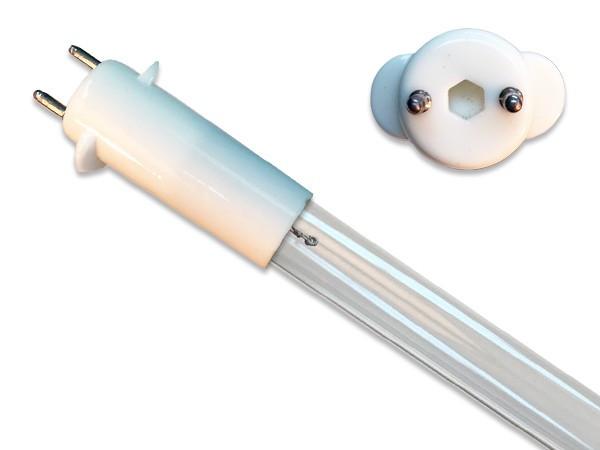

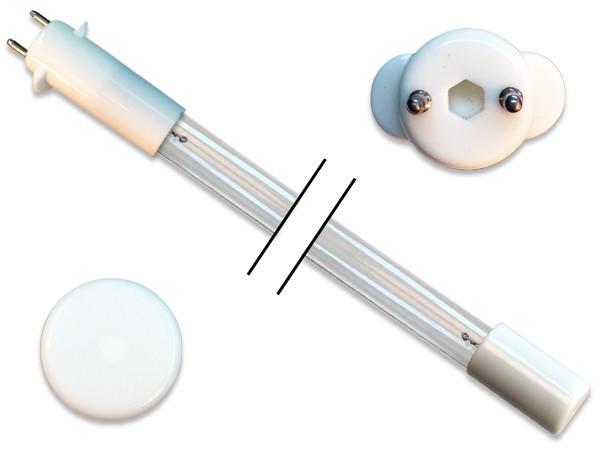

Our CureUV brand Replacement UVC Light Bulb for UV Doctor 1175 is a two-pin winged on a single end bulb. The 130-watt germicidal water treatment bulb has a total length of 61.69" and can last up to 10,000 hours. This UVC light bulb usually has up to 12 months of life after which we recommend replacing it for optimal effectiveness. The replacement bulb is made using ceramic as the base material and comes in a non-ozone glass type.

UV-C light technology is renowned for its capability to eradicate molds, bacteria, yeast, viruses, and protozoa. This water treatment method eliminates the need for chemical handling and specialized storage, leaving no alteration in water's odor, taste, chemistry, or pH. Compared to chemical treatment, many favor this approach due to its absence of byproducts. Operating at a wavelength of 253.7 nm, the UV light is designed to neutralize harmful microorganisms like E.coli, giardia, and cryptosporidium. During UV water purification, the rays pass through the water, modifying the genetic composition of microorganisms, rendering them harmless.CureUV recommends that you replace the UV bulb annually for better efficiency and protection.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

Common Applications

• Aquaculture
• Beverage Services and Processing
• Drinking Water
• Food Services and Processing
• Municipal Wastewater
• Pools, Spas, and Water Features
• Well Water

Common Locations for use:

• Factories
• Farms
• Homes
• Hospitals
• Hotels
• Laboratories
• Ships

Technical Specifications:

• Total Length: 61.69 inches (1567mm)
• Lamp Quartz Diameter: 15mm

• Lamp Wattage: 130 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non-Ozone
• Base Style: Bi-Pin (2-pin) winged on a single end
• Base Material: Ceramic
• Category: High Output
• Rated Life: Up to 10,000 hours
• Description: 18024 Aquafine Equivalent Replacement UV Lamp

Safety Data Sheet:

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell UV Doctor brand UVC bulbs. All UV Doctor brand names, trademarks, and logos are property of UV Doctor.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV brand products are 100% compatible with the original equipment.
