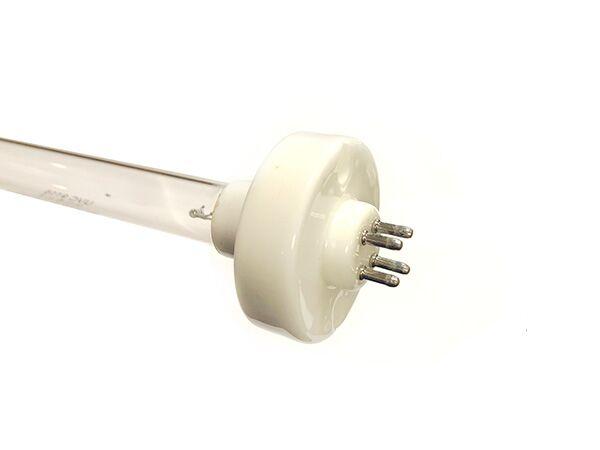

UV PhotoMax PTX-1224F Dual Spectrum Germicidal UV Lamp

UV PhotoMax PTX-1224F Dual Spectrum Germicidal UV Lamp

The UV PhotoMax PTX-1224F Dual Spectrum Germicidal UV Lamp is 100% equivalent for UV Lamp Model AS-IH-1013 and is compatible with UV PhotoMax Systems, Signature Series UVP-3000.

The lamp has a life of 10,000 hours after which we recommend that you replace the light bulb even if it continues to emit light.

Since the light bulbs are intended to destroy microorganisms it is necessary to schedule replacement of the bulbs annually to ensure efficiency of the system. Made in the USA, these high-quality lamps has a peak UV output of 254nm that help in reacting with the genetics of microorganisms such as spores, virus, bacteria and other pathogens.

The germicidal water treatment bulb comes with a shatterproof coating that protects the lamp during damage. The coating also keeps the lamp glass from falling into the unit. This results in easy disposal of glass if it shatters and renders it easy to operate the system. The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

Technical Specifications:

• Total Length: 12 inches (305mm)
• Arc Length: 8.66 inches (220mm)
• Lamp Quartz Diameter: 15mm
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin on a single end
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
