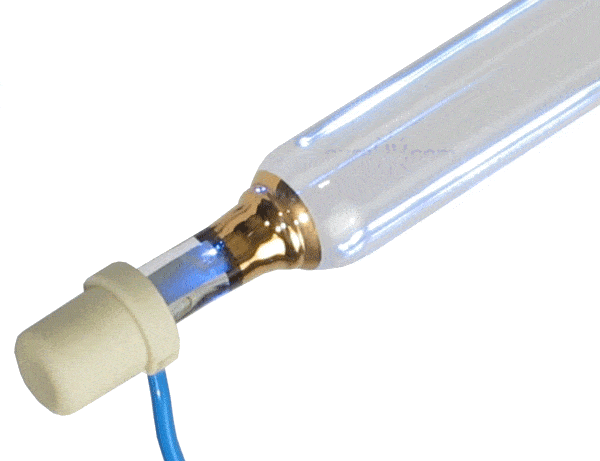

UV Research Part # HT5260 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 11 Inch Arc Length

The UV Research Part # HT5260 UV Curing Lamp Bulb is an 11 inch lamp bulb that exceeds OEM standards of lamp performance. The lamp bulb is 100% compatible to the UV Research UV systems and works well for the part numbers:

• HT5260

This printer lamp bulb from CureUV.com is a high quality printer lamp bulb that is eco-friendly, economical and cost-effective. It provides good and worry-free printing results at all times. The UV curing lamp is a mercury filled lamp.

The UV printer lamp bulb is manufactured in the USA and is a quality solution that has a predictable lifespan. The replacement lamp ensures that the inks in graphic and signs dry uniformly and quickly. CureUV provides UV lamp for printers in different arc length and spectral fills. This UV lamp bulb comes with an 11" arc length and a 14.64" total length and contains a quartz plate that works as a filler between the lamp and the system.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 11 inches
• Total Length: 14.64 inches
• Tube Diameter: 26 mm
• Watts Per Inch: 600 WPI

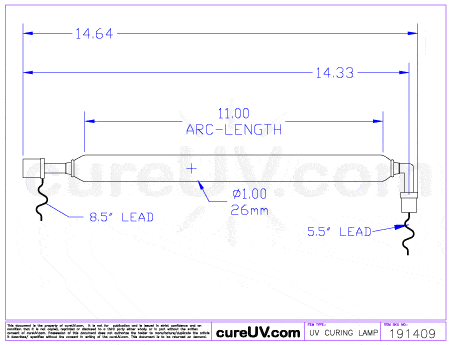

UV Research 11 inch lamp - OEM part number HT5260 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
