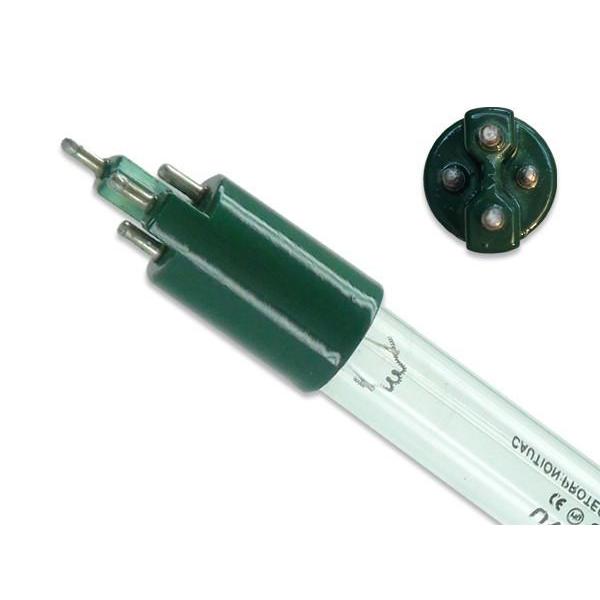

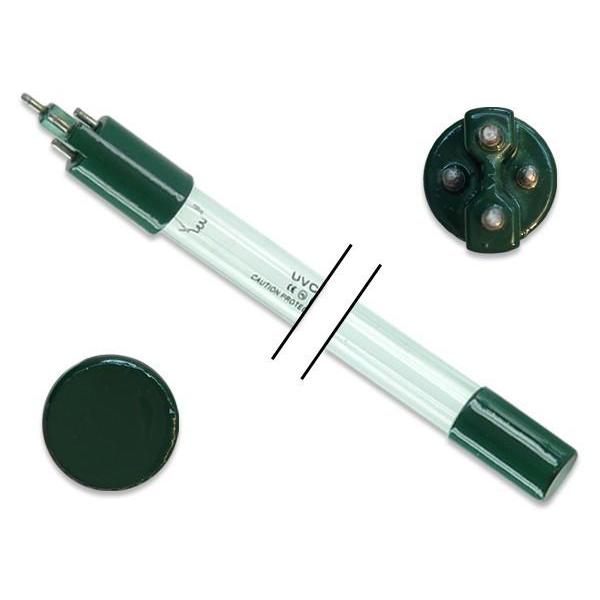

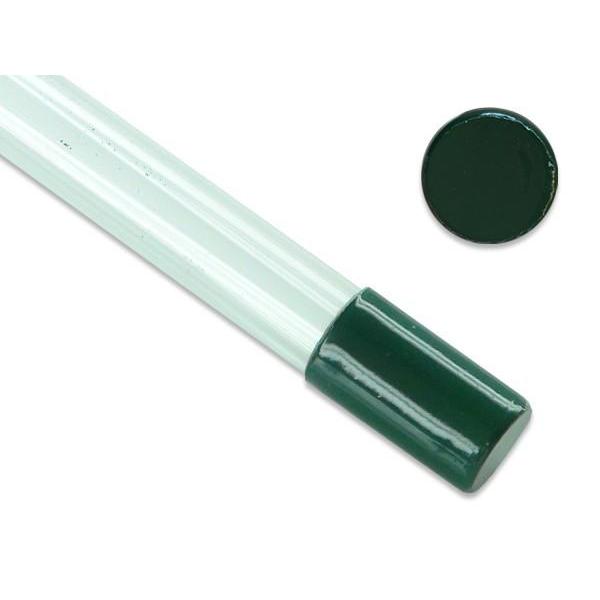

Viqua VH410M UVC Light Bulb for Germicidal Water Treatment

4 Pin Stepped on a Single End - 3 levels (B24) - 45 Watt Germicidal Water Treatment Bulb

The Viqua VH410M UVC Light Bulb is a 4 Pin Stepped On A Single End - 45 Watt Germicidal Water Treatment Bulb that has a wattage of 45 Watts and a lamp length of 20.08 Inches to give you a worry-free performance for 1 year.

Ultraviolet light filters are advanced and highly effective method of destroying pathogens such as protozoa, viruses, bacteria, cysts, and others. These UV lamps and bulbs produce high quantity of damaging ultraviolet light that destroys these organisms without altering the composition, pH or taste of water. Unlike chemical methods of purification, the UV light purification is proven safe for human consumption.

We offer two versions of this UV-C bulb; a good quality foreign-made generic replacement unit and an ultra-high quality US-made unit. Both lights are guaranteed to be 100% compatible with the Viqua VH410M

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

• Well water
• Drinking water
• Surface water
• Municipal water
• Wastewater
• Food service/processing
• Beverage service/processing
• Hospitals
• Aquaculture
• Pools, Spas and Water Features
• Chemicals
• Oil, Gas and Power
• Pulp, paper and wood
• Electronics
• Cosmetics
• Pharmaceuticals
• Hotels
• Water bottlers
• Laboratories
• Marine and more

Technical Specifications:

• Total Length: 20.07 inches (510mm)
• Lamp Quartz Diameter: 15mm
• Lamp Wattage: 45 Watts
• Peak UV Output: 253.7nm
• Glass Type: Non Ozone
• Base Style: 4 pin stepped on a single end - 3 levels (B24)
• Base Material: Ceramic
• Rated Life: Up to 10,000 hours

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
