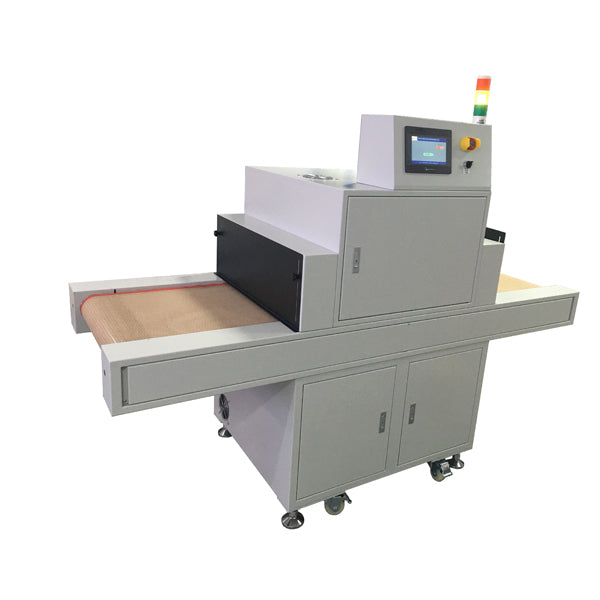

1600x27mm UV LED Curing Conveyor with Water Cooling
This curing system consists of a control system, a high-intensity UV LED Irradiation head and a conveyor belt. Its forced water cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 1600x27mm.
The 1600x27mm UV LED Array for this conveyor can be bought separately, the range of wavelengths offered ensures you find the ideal device for the UV Material at hand. This system takes no time to start up and efficiently cures your products without heating up, protecting the composition of the materials at hand to get better results.
This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.
Technical Specifications:
Available Wavelengths: 365nm, 385nm, 395nm, 405nm
405nm*:
- Power Wiring: 220V or 480V 60Hz
- Optic power: 7500mW/cm²
- Curing area: 1600x27mm
- Cooling method: Water Cooling
- Conveyor Belt Width: 1600mm
- UV light intensity adjustable: 1% -100%
- Adjustable belt speed
- Effective Irradiation Width: can be customized
- Cooling Method: water cooling
*Technical Specifications available at the moment apply to the specified wavelengths.
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292
