SPDI UV High Intensity LED UV Curing Conveyor System with forced air cooling

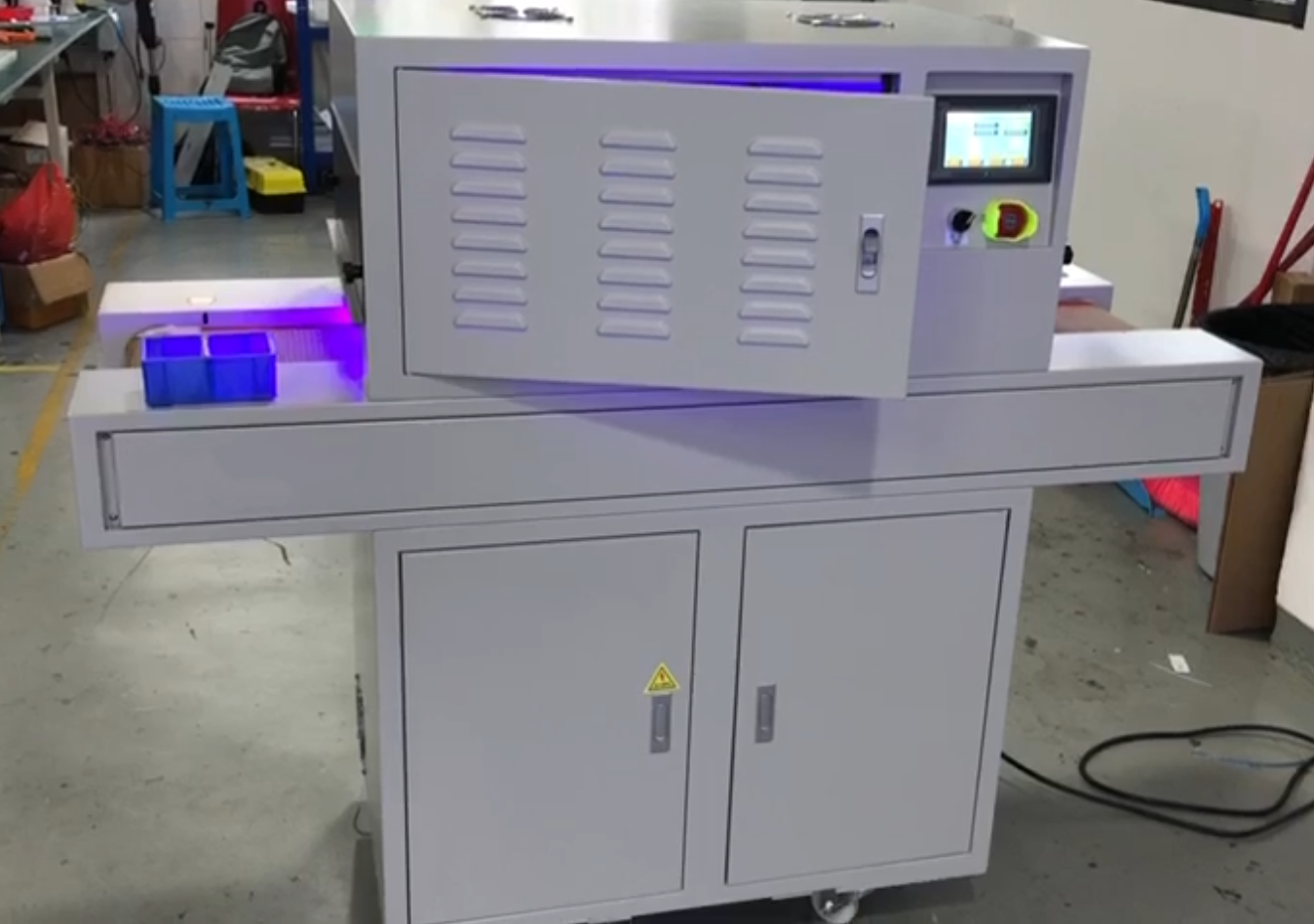

This SPDI UV High Intensity LED UV Curing Conveyor System consists of a control system, High-Intensity UV LED Irradiation head and a conveyor belt. .
Applications:
- UV Adhesives
- UV Finishes
- UV Clear Coats
- UV Paint
- UV Ink
- UV Varnish
- Creating Photo-Initiated Reactions for Lab Use

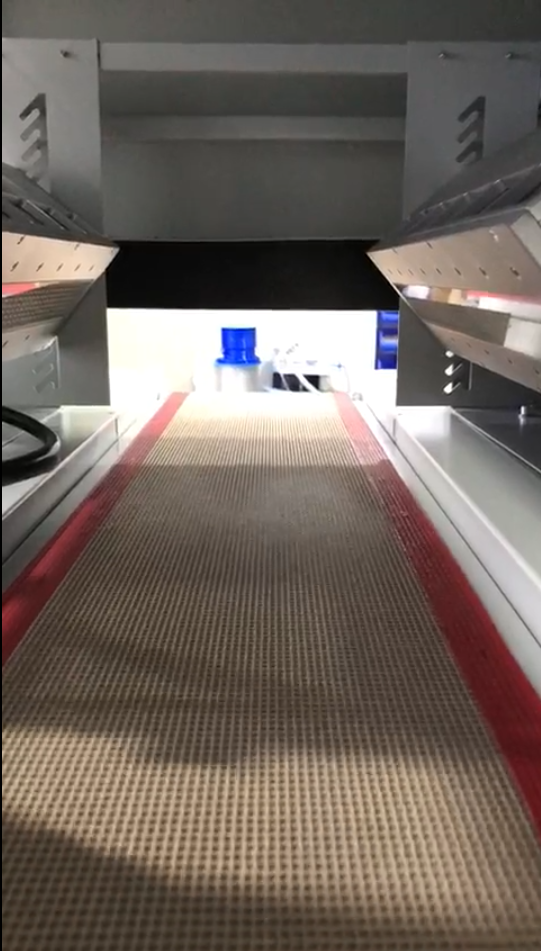

Conveyor Technical Specifications:
- Conveyor length: 60-84 inches.
- Conveyor width: 6-8 inches.
- Conveyor Entry Height: 6 inches.
- Conveyor speed: 0 to 60 feet per minute (adjustable from 1 to 1829 centimeters per minute)

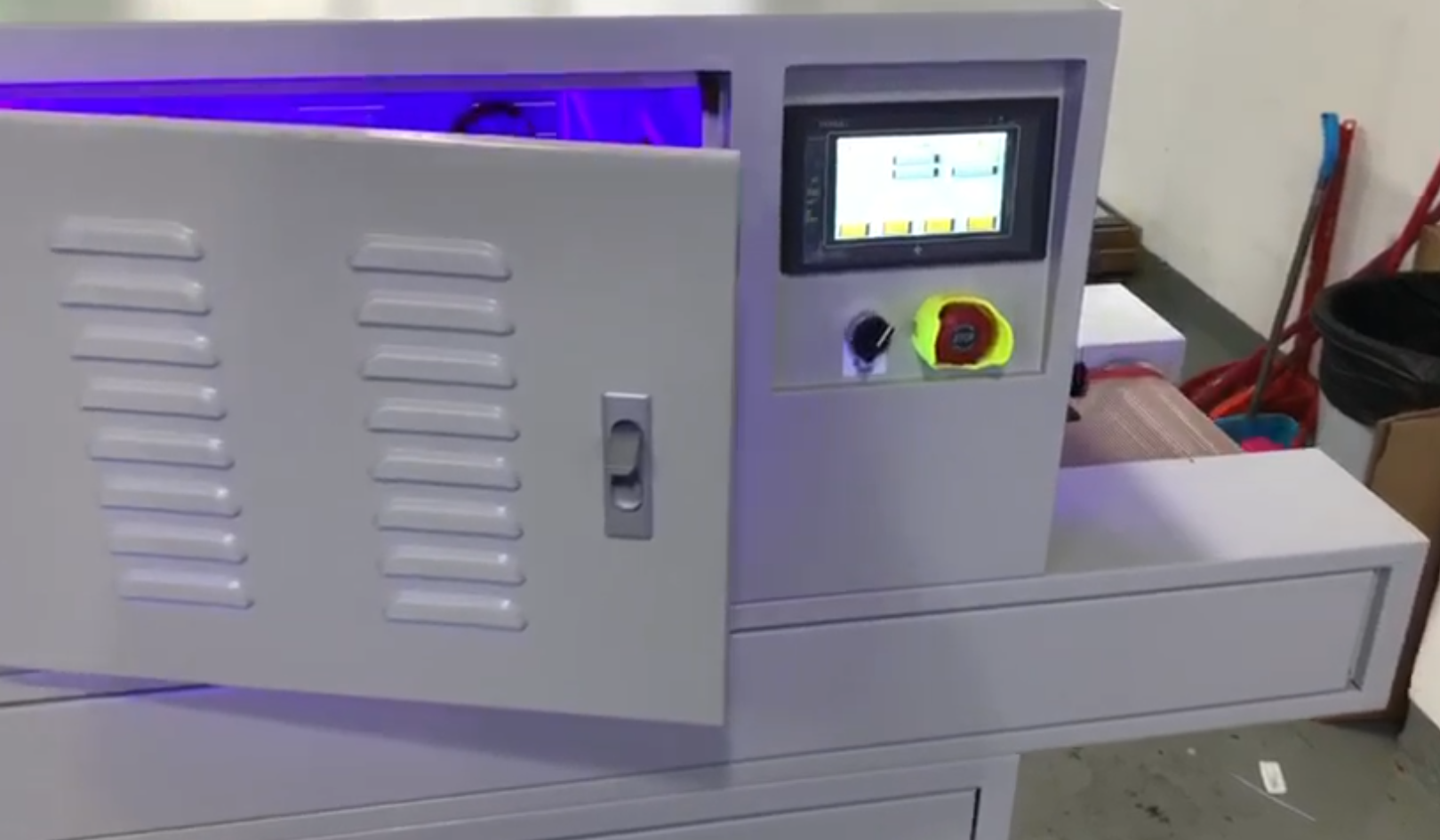

- Control module: full color responsive LCD touchscreen.
- Input Voltage: 120 VAC/60 Hz (also available in 220V/50Hz for international customers)

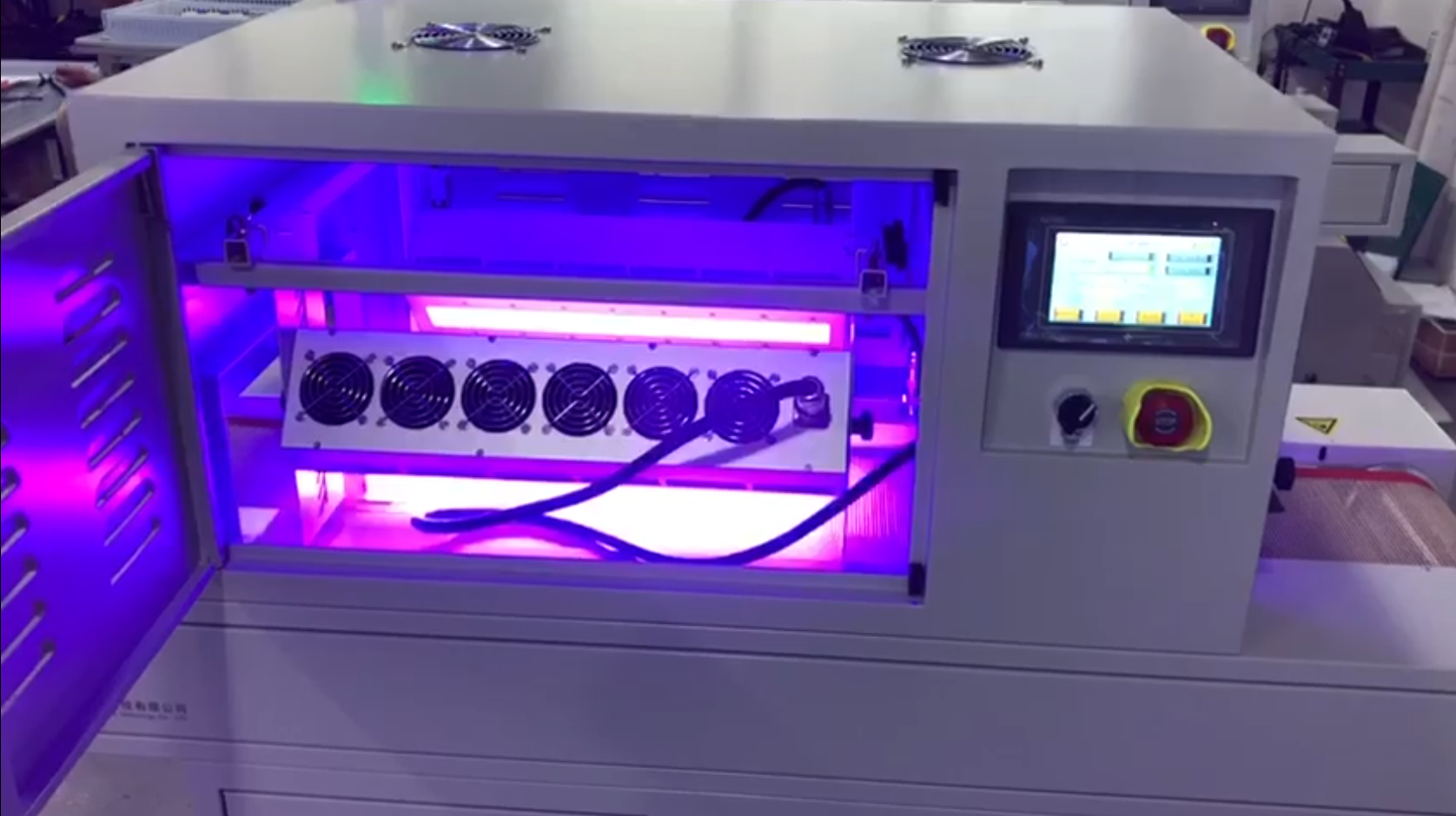

LED Irradiator Technical Specifications:
- Wavelength: 365nm, 395nm, 405nm, 420nm
- Irradiator width: 12 inches, 24 inches, 30 inches, 36 inches.
- UV Exposure Intensity: Up to 3 W/cm2
- Cooling: Air cooling
- Irradiation: from both sides
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
