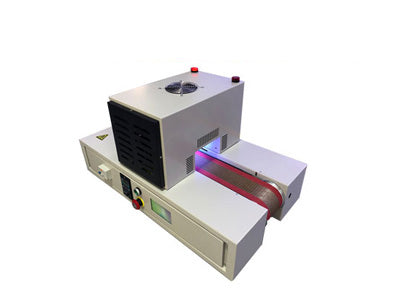

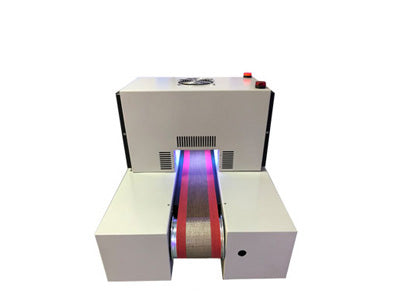

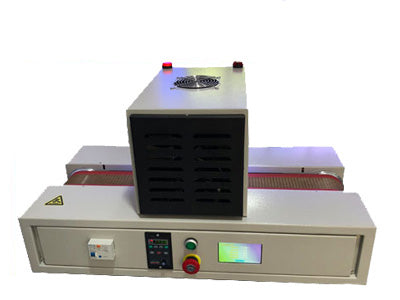

Triple-Sided 100x100mm & 120x30mm UV LED Curing Conveyor
This UV conformal coating curing is one of the most efficient conveyors in the market, this system provides triple light source from the bottom and sides of the cabin, ensuring your products are positively cured in one pass.
This conveyor consists of a control system, a triple-sided High-Intensity UV LED Irradiation head and a conveyor belt. The UV LED Irradiation Head comes in a variety of wavelengths. The incorporated forced air-cooling dissipates heat, making your system last longer giving it a more cost-effective useful life. The effective curing area of this system is 100x100mm (top) & 120x30mm (sides)
This UV LED Conveyor supports external signal input and triggering which makes it ideal for automatic or semi-automatic production lines.
The array of wavelengths offered ensure you find the ideal device for the UV Material at hand, this system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.
With adjustable power designed to save up to a ratio of ≥1:6, this device produces no ozone, no deep UV irradiation and no mercury, making it a safer and more environmentally friendly light source.
Technical Specifications:
Available Wavelengths: 365nm, 385nm, 395nm, 405nm
365nm*:
- Electric power: 684W
- Optic power:
- Top: 1000mW/cm²
- Sides: 800mW/cm²
- Curing area: Top - 100x100mm, Sides - 120x30mm
- Cooling method: air cooling
- Dimension: L800mm * W450mm * H410mm
- Recommended height of irradiation: 5 -10mm
*Technical Specifications available at the moment apply to the specified wavelengths.
We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
